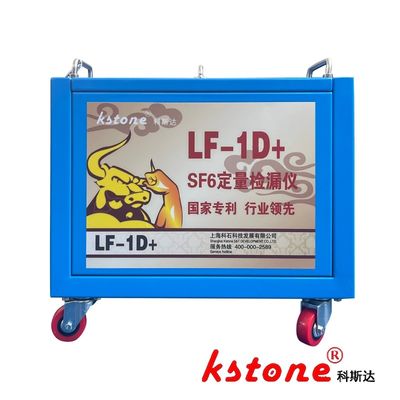

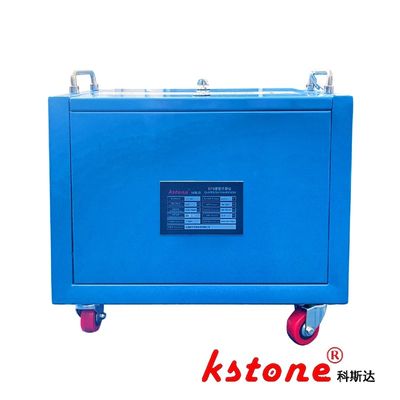

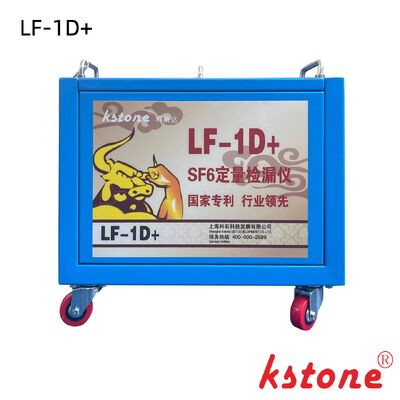

The Most Suitable Quantitative Leak Detector For Finding Leaks, Suitable For Use In Workshops, [LF-1D+]

  • The Most Suitable Quantitative Leak Detector For Finding Leaks, Suitable For Use In Workshops, [LF-1D+]
  • The Most Suitable Quantitative Leak Detector For Finding Leaks, Suitable For Use In Workshops, [LF-1D+]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number LF-1D+
Document sf6 leak detector.pdf
Minimum Order Quantity 1
Price $3000-$3500
Packaging Details Carton / Wooden Box
Delivery Time 10 work days
Payment Terms T/T
Supply Ability 100 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 0.01ppm Detection Range 0.01ppm-1000ppm
Response ≤1 Second In 100ppm Measurement Accuracy ≥10 (capable Of Detecting 0.01ppm SF6 Concentration)
Physical Dimensions 430×275×429mm (Length×Width×Height); Net Weight Approximately 19.8kg Durable Design 4m Vacuum Hose (extendable To 6m) And 2m Power Cable (extendable To 6m), Suitable For Complex Detection Environments
Operating Conditions Stable Performance In 5℃-50℃ Temperature Range And Humidity >80%; Continuous Working Time ≤8 Hours Enterprise Credibility China's National Standard GB/T11023-2018
Highlight

Automatic sulfur hexafluoride detector

,

outdoor sulfur hexafluoride detector

,

outdoor sf6 gas sniffer
Leave a Message
Product Description

The most suitable quantitative leak detector for finding leaks, suitable for use in workshops, LF-1D+

Search for leakage points, Cost-Effective, Low Maintenance Cost, LF-1D+

SF6 Quantitative Leak Detector, Cost-Effective, Low Maintenance Cost, Search for leakage points

Our company is the drafting unit of the Chinese national standard GB/T11023-2018 "High voltage switchgear - SF6 gas sealing test method".

Used by thousands of Chinese electrical equipment manufacturers

LF-1D+ SF6 Quantitative Leak Detector adopts the principle of low-voltage ionization in a high-frequency magnetic field and has the outstanding advantages of fast response and high sensitivity. It is the best choice for finding leakage points.
In terms of the two parameters of response time and sensitivity, it far surpasses the leak detectors based on the principle of infrared dual-waves.

Overall dimensions: 430*275*425mm

Item LF-1D+ SF6 Quantitative Leak Detector
Measurement Accuracy ≥10, it can detect SF6 with a concentration of 0.01ppm Measurement Range
Measurement Range 0.01ppm - 1000ppm
Response Time No more than 1 second for 10, that is, for 100ppm gas
Indication Method LCD digital display. The greater the leakage concentration, the greater the change of the digital value. At the same time, the frequency of the buzzer sound changes more significantly.
Vacuum Hose 4 meters (the towable length is 6 meters)
Power Input Cable 2 meters (the towable length is 6 meters)
Input Power 220V±22V, 50Hz±2Hz
Overall Dimensions 430×275×429mm (Length * Width * Height)
Packaging Foam carton
Continuous Working Time Generally no more than 8 hours
Ambient Temperature 5℃ - 50℃
Ambient Humidity It can adapt to environments with humidity over 80%
Power 250W
Net Weight Approximately 19.8KG

Leak detection for Kema certification

The Most Suitable Quantitative Leak Detector For Finding Leaks, Suitable For Use In Workshops, [LF-1D+] 0 The Most Suitable Quantitative Leak Detector For Finding Leaks, Suitable For Use In Workshops, [LF-1D+] 1


Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
