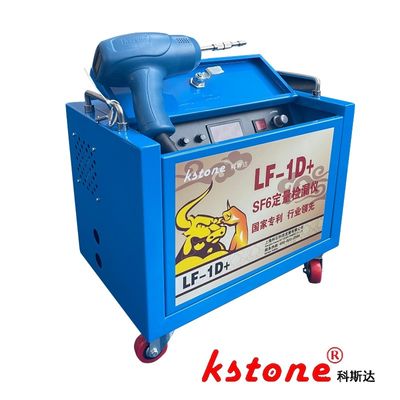

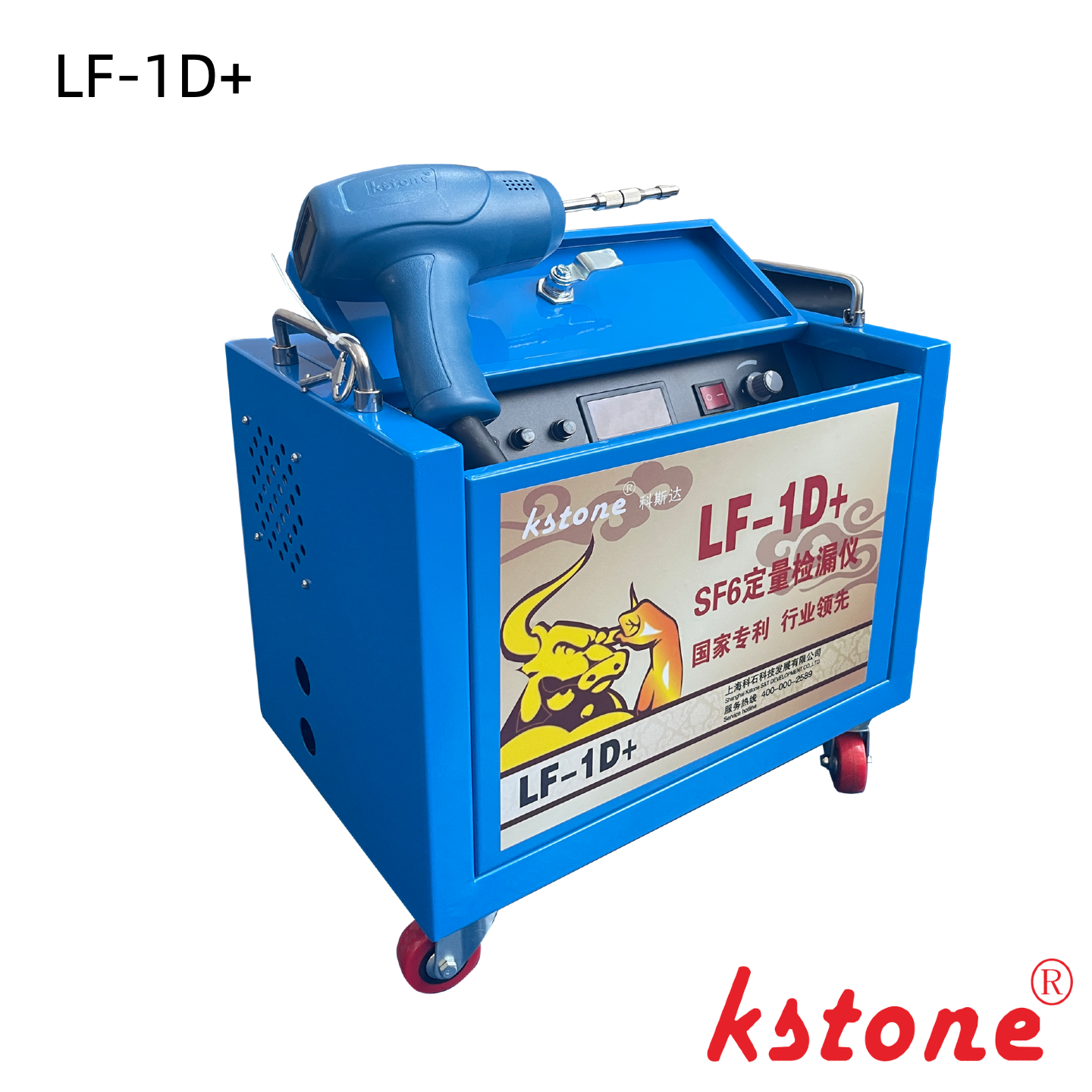

Instant Digital SF6 Leak Detector NDIR Gas Sensors Explosion Proof [LF-1D+]

Large Image : Instant Digital SF6 Leak Detector NDIR Gas Sensors Explosion Proof [LF-1D+]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-1D+

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 Days
Payment Terms:	,T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Accuracy:

0.01ppm

Detection Range:

0.01ppm-1000ppm

Response:

≤1 Second In 100ppm

Measurement Accuracy:

Highlight:

Digital SF6 Leak Detector

explosion proof SF6 Leak Detector

NDIR gas leak sensors

Instant Digital SF6 Leak Detector NDIR Gas Sensors Explosion Proof LF-1D+

Core Advantages

High-Sensitivity Detection:Utilizes low-voltage ionization in a high-frequency magnetic field to accurately capture SF6 gas leaks as low as 0.01ppm, with a detection range of 0.01ppm-1000ppm—significantly outperforming infrared dual-wave principle leak detectors.
Sub-Second :Responds within ≤1 second in 100ppm gas environments, enabling rapid leakage point localization and enhancing detection efficiency.
Intelligent Digital Display: LCD screen real-time displays leakage concentration values (higher concentration = more significant numerical changes), complemented by dual prompts from buzzer frequency variations for intuitive operation.

Enterprise Credibility

As the drafting unit of China's national standard GB/T11023-2018 "High Voltage Switchgear - SF6 Gas Sealing Test Method", the product meets industrial-grade detection standards, widely applied for precise SF6 leakage localization in power equipment, high-voltage switches, and other scenarios.

Technical Specifications	Detailed Parameters
Measurement Accuracy	≥10 (capable of detecting 0.01ppm SF6 concentration)
Physical Dimensions	430×275×429mm (Length×Width×Height); net weight approximately 19.8kg
Durable Design	4m vacuum hose (extendable to 6m) and 2m power cable (extendable to 6m), suitable for complex detection environments
Operating Conditions	Stable performance in 5℃-50℃ temperature range and humidity >80%; continuous working time ≤8 hours
