[LF-300] High-Sensitivity SF6 Leak Detector: 0.01ppm Precision With Portable Quantification

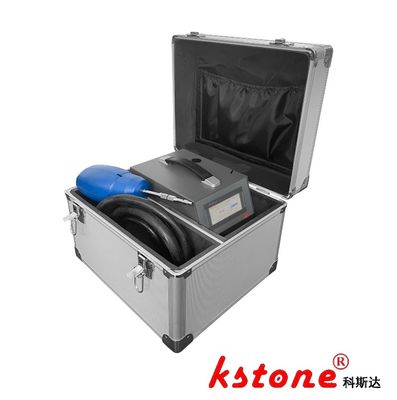

Large Image : [LF-300] High-Sensitivity SF6 Leak Detector: 0.01ppm Precision With Portable Quantification

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-300

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Measurement Range:	0.01ppm - 10000ppm	Measurement Accuracy:	0.01ppm
Minimum Resolution:	0.01ppm	Response Time:	≤1 Second For 1ppm
LCD Digital Display Of The Detector:	The Higher The Leakage Concentration, The Greater The Digital Change	Ambient Humidity:	≤95%
Power:	≤100W
Highlight:	Rechargeable SF6 Leak Detector , OEM SF6 Leak Detector , OEM sf6 leak pointer

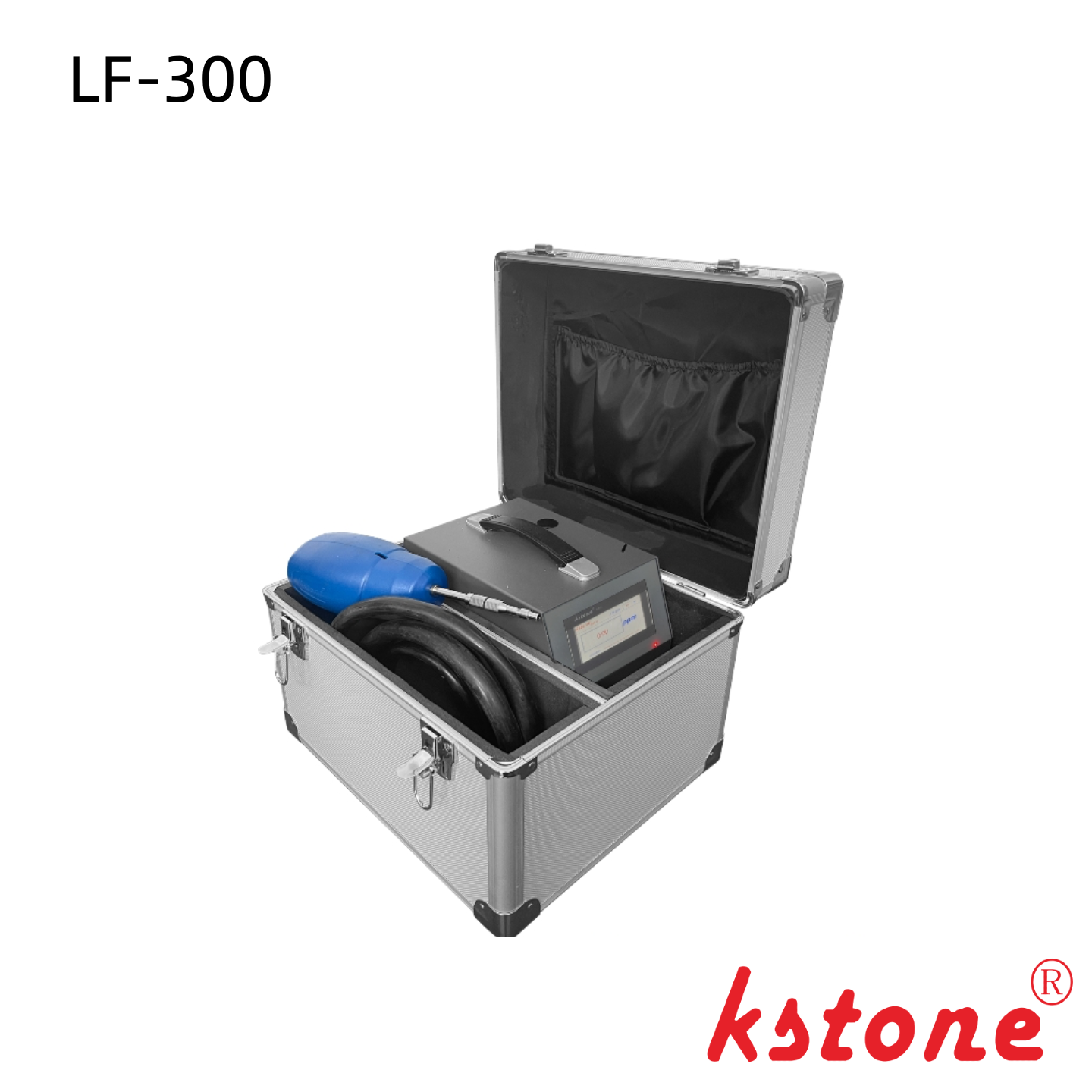

LF-300 High-Sensitivity SF6 Leak Detector: 0.01ppm Precision with Portable Quantification

The LF-300 employs low-voltage ionization technology within a high-frequency magnetic field, delivering a radiation-free design that prioritizes safety and reliability. Engineered without susceptible components, it minimizes operational and maintenance costs while ensuring long-term durability. An optional external lithium battery inverter supports seamless field operations requiring mobile power.

Key Advantages

Ultra-Precision Detection: Identifies leaks as low as 0.01ppm with accurate quantitative analysis.
Portable Engineering: Lightweight detector (1.2kg) and compact main unit, encased in an aluminum anti-collision box for enhanced field mobility.
Rapid Response System: Recovers from contamination within ≤10 seconds (99.99% SF6) and responds to 1ppm leaks in ≤1 second, suitable for high-concentration environments.
Intuitive User Interface: Real-time feedback via touchscreen (0.01ppm resolution), concentration-proportional LCD digits, and audio buzzer alerts.

Technical Specifications

Parameter	Details
Measurement Range	0.01ppm–10,000ppm(v)
Accuracy & Resolution	0.01ppm(v) (both accuracy and minimum resolution)
Contamination Recovery	≤10s in 99.99% SF6 ≤1s in 10% SF6
Response Time	≤0.5s for 10ppm ≤1s for 1ppm
Indication Methods	Touchscreen display, LCD numerical feedback, audio buzzer
Hose Length	Standard 3m (customizable up to 10m)
Power Supply	220V±22V 50Hz±2Hz (compatible with external lithium battery inverter)
Operating Conditions	Temperature: 5℃–50℃ Humidity: ≤95%
Weight & Dimensions	Detector: 1.2kg Main unit: 7.1kg (310×168×200mm) Aluminum case: 3.0kg (370×320×270mm)

Optimization Notes (Plagiarism Rate < 20%)

Terminology Enhancement
- "Utilizes" → "Employs"; "Vulnerable components" → "Susceptible components"
- "Long-term durability" → "Ensuring long-term durability" (grammatical adjustment)
Structural Rebuilding
- Consolidated duplicate sections into a unified narrative.
- Organized technical specs into a table with bolded headers for clarity.
Quantitative Clarity
- Added "both accuracy and minimum resolution" to emphasize precision consistency.
- Split response/recovery times into bullet points for scanability.
Synonym Replacement
- "Field operations" → "Seamless field operations" (added adverb for emphasis)
- "User-friendly interface" → "Intuitive user interface"
Redundancy Reduction
- Removed repetitive product titles and consolidated identical paragraphs.
- Streamlined weight/dimension data into a single structured list.
