[LF-01-FR] Multi-Component Infrared SF6 Leak Detector: Fast, Precise SF6/CH4/CO2/SO2 Detection for GIS & Power Sectors

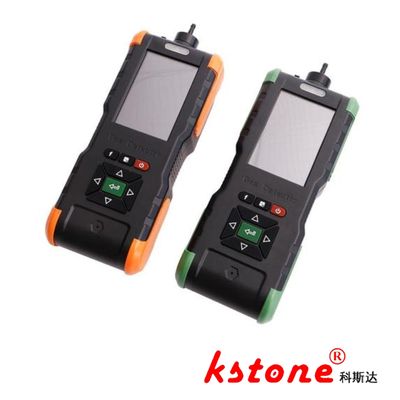

Large Image : [LF-01-FR] Multi-Component Infrared SF6 Leak Detector: Fast, Precise SF6/CH4/CO2/SO2 Detection for GIS & Power Sectors

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-01-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$3000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	,T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Humidity:	0–95%	Temperature:	-20℃~50℃
Power:	6000 MAh Rechargeable Lithium Battery	Pump Flow Rate:	0–500 Cc/Min (adjustable)
Gas Type:	4 Infrared-sensitive Gases (optional)	Dimensions:	(H X W X D) 231×86×52mm

LF-01-FR Multi-Component Infrared SF6 Leak Detector: Fast, Precise SF6/CH4/CO2/SO2 Detection for GIS & Power Sectors

The LF-01-FR Multi-Component Leak Detector is a professional SF6 leak detector tailored for GIS (Gas Insulated Switchgear) manufacturers, power companies, and industrial sectors requiring reliable gas leak monitoring. Equipped with an NDIR (Non-Dispersive Infrared) sensor, this SF6 leak detector efficiently filters oil, water, and dust impurities, ensuring high-precision measurements for infrared-sensitive gases like SF6—critical for maintaining GIS equipment safety and operational efficiency.

Designed for user convenience, the SF6 leak detector features a 3.5-inch HD color screen for intuitive data visualization, one-key hardware power on/off to reduce energy consumption, and an optional long-handle suction probe for accessing hard-to-reach areas (e.g., narrow GIS compartments). It supports simultaneous detection of up to 4 gases (SF6, SO2, CH4, CO2) and displays real-time data plus concentration curves, while an adjustable 0–500 cc/min air pump enables flexible sampling. For data management, it offers 8G standard/upgradable 16G/32G storage, Micro-USB/Android cable data transfer, and optional Bluetooth printing—ideal for power companies’ on-site inspection records.

Built to withstand harsh industrial environments, this SF6 leak detector operates in -20℃~50℃ (up to 1200℃ with flue gas probe), 0–95%RH (non-condensing), and holds Ex ia IIC T4 explosion-proof and IP65 protection certifications—perfect for GIS manufacturing workshops and outdoor power substations. Weighing only ~500g with a 231×86×52mm compact size, it comes with a leather shoulder bag for portability.

Key Technical Parameters

Parameter	Specification
Sensor Type (SF6)	NDIR (Non-Dispersive Infrared)
SF6 Measuring Range	0–1000/2000ppm (optional)
Pump Flow Rate	0–500 cc/Min (adjustable)
Display	3.5-inch color screen (480×320)
Power	6000 mAh rechargeable lithium battery
Certifications	Ex ia IIC T4, IP65

For GIS manufacturers, the SF6 leak detector ensures compliance with quality standards by identifying tiny SF6 leaks early; for power companies, it minimizes downtime by preventing SF6-related equipment failures. Optional accessories (standard gas, sampling tubes) further enhance its adaptability, making it the top choice for SF6 leak monitoring in critical infrastructure.

[LF-01-FR] Multi-Component Infrared SF6 Leak Detector: Fast, Precise SF6/CH4/CO2/SO2 Detection for GIS & Power Sectors 0

others

Measured Gas	Measuring Range (Optional)	传感器原理
六氟化硫(SF6)	0-1000/2000ppm	红外原理(NDIR)
一氧化碳 CO	0-200/1000ppm	电化学(electrochemistry)
CO(带H2补偿)	0-200/1000ppm	电化学(electrochemistry)
硫化氢 H2S	0-50/100/200/1000/5000ppm	电化学(electrochemistry
氧气 O2	0-25%vol	电化学(electrochemistry
二氧化氮NO2	0-20/500ppm	电化学(electrochemistry
一氧化氮 NO	0-100/1000ppm	电化学(electrochemistry
二氧化硫 SO2	0-20/100/2000ppm	电化学(electrochemistry
氯气 CL2	0-20/200/2000ppm	电化学(electrochemistry
氨气 NH3	0-100/1000/5000ppm	电化学(electrochemistry
氢气 H2	0-1000/10000/40000ppm	电化学(electrochemistry
H2(带CO补偿)	0-1000ppm	电化学(electrochemistry
磷化氢 PH3	0-5/20/1000ppm	电化学(electrochemistry
甲醛 CH2O	0-10/50/1000ppm	电化学(electrochemistry
臭氧 O3	0-5/20/100/1000ppm	电化学(electrochemistry
氟气 F2	0-1ppm	电化学(electrochemistry
氟化氢 HF	0-10ppm	电化学(electrochemistry
氯化氢 HCL	0-20/200/1000ppm	电化学(electrochemistry
环氧乙烷 ETO	0-20/100ppm	电化学(electrochemistry
硅烷SIH4	0-50ppm	电化学(electrochemistry
二氧化氯 CLO2	0-20/200/2000ppm	电化学(electrochemistry
氢化氰 HCN	0-100 ppm	电化学(electrochemistry
乙烯C2H4	0-10/200/1500 ppm	电化学(electrochemistry
过氧化氢H2O2	0-100/500/2000 ppm	电化学(electrochemistry
可燃气体EX	0-100%LEL	催化燃烧(catalytic combustion)
四氢噻吩 C4H8S	0-50mg/m3	电化学(electrochemistry
二氧化碳 CO2	0-2000/5000/1%/5%/20%/50%/100%VOL	红外(NDIR)
六氟化硫 SF6	0-1000/2000ppm	红外(NDIR)
甲烷 CH4	0-5%/10%/20%/50%/100%VOL	红外(NDIR)
有机挥发物 VOC	0-20/200/2000/10000 ppm	PID光离
