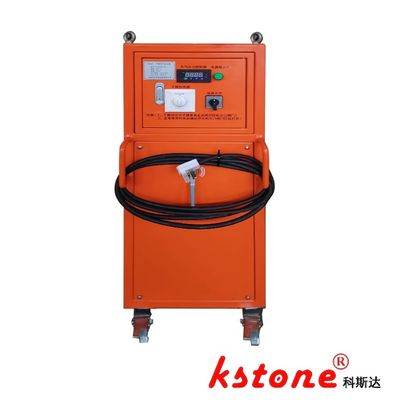

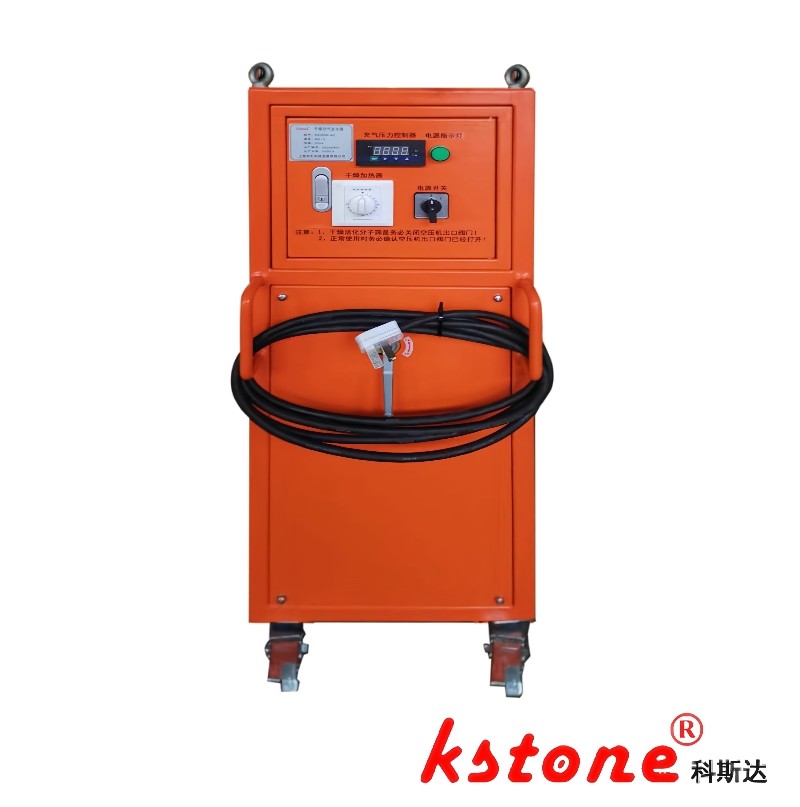

Odm Air Dryer Machine ,Online Moisture Testing, Fully Automatic Control [Ks3000-80-Cz4]
![Odm Air Dryer Machine ,Online Moisture Testing, Fully Automatic Control [Ks3000-80-Cz4]](/photo/ps205736168-odm_air_dryer_machine_online_moisture_testing_fully_automatic_control_ks3000_80_cz4.jpg)
![Odm Air Dryer Machine ,Online Moisture Testing, Fully Automatic Control [Ks3000-80-Cz4]](/photo/pd205736168-odm_air_dryer_machine_online_moisture_testing_fully_automatic_control_ks3000_80_cz4.jpg)
| Place of Origin | Shanghai |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO9000 |
| Model Number | KS3000-80-cz4 |
| Minimum Order Quantity | 1 |
| Price | $6100-$6300 |
| Packaging Details | Carton / Wooden Box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 10 set/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Compressor Flow Rate | 80L/min (optional Configuration) | Pressure Adjustment Range | 0.1-6.0 MPa (customizable Low-pressure Setpoints With Fluctuation Control) |
|---|---|---|---|
| Drying Activation Output | 15m³ Of Qualified Dry Air Per 30-minute Regeneration | Moisture Filtration | Outlet Moisture: 30-50ppmv @ 70% Inlet Humidity |
| Vacuum Pump Capacity | 15m³/h | Dimensions (L×W×H) | 1200×800×1620 Mm |
| Weight | ≤150 Kg | Power Supply | AC220V |
| Power Consumption | ≤6 KW | Moisture Absorption | ≥1.0 Kg Per Activation (@ <50-60ppm) |
| Highlight | Refrigeration industrial air dryer,ODM industrial air dryer,ODM air dryer machine |
||
Product Description
ODM Air Dryer Machine ,Online Moisture Testing, Fully Automatic Control KS3000-80-CZ4
Ks3000-80-cz4, By filtering moisture and particles from natural air, dry air with a moisture content of less than 30ppm (v) can be produced.
The flow rate of dry air can be selected as needed.
This device can be used to provide air source for air insulated cabinets.
The device can also provide dry air to flush the gas insulated cabinet instead of high-purity nitrogen.
The device also has a vacuum pumping function and can expand the vacuum pump as needed.
The equipment includes a silent compressor, moisture filtration device, drying activation device, pressure adjustable system, and exhaust pipe. The equipment also includes a vacuum pump, anti reflux device, and pipelines. The device can also be equipped with an online micro water testing sensor (optional, model: KS3000-80-CZ4-WS), mainly used to determine whether the device needs to be activated.
Can be configured as fully automatic or manual according to requirements;
Main parameters:
Compressor: flow rate of 80L/min (optional).
Pressure adjustable system: can provide any adjustable value within the range of 0.1-6.0 Mpa, and can set low pressure and fluctuation range.
For example, for a certain customer, the low pressure is 0.12 Mpa and the fluctuation range is 0.02 Mpa. When the output air pressure is greater than 0.14Mpa, the compressor stops running, and when the pressure is lower than 0.12Mpa, the compressor starts.
Drying and activation device: If the micro water value of the outlet gas exceeds the required value, remove the gas outlet pipeline, open the gas outlet valve, start the drying and activation device, and set the time to 30 minutes. After 30 minutes, the adsorbent returns to its initial state. According to testing, one regeneration can provide approximately 15m ³ of qualified dry air.
Moisture filtration device: After multiple improvements to the solution, the trace water in the outlet gas can be effectively controlled at 30-50ppmv under the condition of 70% humidity in the inlet environment.
Vacuum pump: 15m ³/h.
The flow rate of dry air can be selected as needed.
This device can be used to provide air source for air insulated cabinets.
The device can also provide dry air to flush the gas insulated cabinet instead of high-purity nitrogen.
The device also has a vacuum pumping function and can expand the vacuum pump as needed.
The equipment includes a silent compressor, moisture filtration device, drying activation device, pressure adjustable system, and exhaust pipe. The equipment also includes a vacuum pump, anti reflux device, and pipelines. The device can also be equipped with an online micro water testing sensor (optional, model: KS3000-80-CZ4-WS), mainly used to determine whether the device needs to be activated.
Can be configured as fully automatic or manual according to requirements;
Main parameters:
Compressor: flow rate of 80L/min (optional).
Pressure adjustable system: can provide any adjustable value within the range of 0.1-6.0 Mpa, and can set low pressure and fluctuation range.
For example, for a certain customer, the low pressure is 0.12 Mpa and the fluctuation range is 0.02 Mpa. When the output air pressure is greater than 0.14Mpa, the compressor stops running, and when the pressure is lower than 0.12Mpa, the compressor starts.
Drying and activation device: If the micro water value of the outlet gas exceeds the required value, remove the gas outlet pipeline, open the gas outlet valve, start the drying and activation device, and set the time to 30 minutes. After 30 minutes, the adsorbent returns to its initial state. According to testing, one regeneration can provide approximately 15m ³ of qualified dry air.
Moisture filtration device: After multiple improvements to the solution, the trace water in the outlet gas can be effectively controlled at 30-50ppmv under the condition of 70% humidity in the inlet environment.
Vacuum pump: 15m ³/h.
| Item | Technical Specification |
|---|---|
| Dimensions (Length×Width×Height, LBH) | 1200×800×1620 |
| Weight (Kilogram, Kg) | ≤150 |
| Power Supply | AC220 |
| Power (Kilowatt, Kw) | ≤6 |
| Moisture Absorption Amount per Activation (Kilogram, Kg) (<50 - 60ppm) | ≥1.0 |
Online dynamic moisture testing, automatically determining whether activation is needed
(model: KS3000-80-CZ4-WS)
