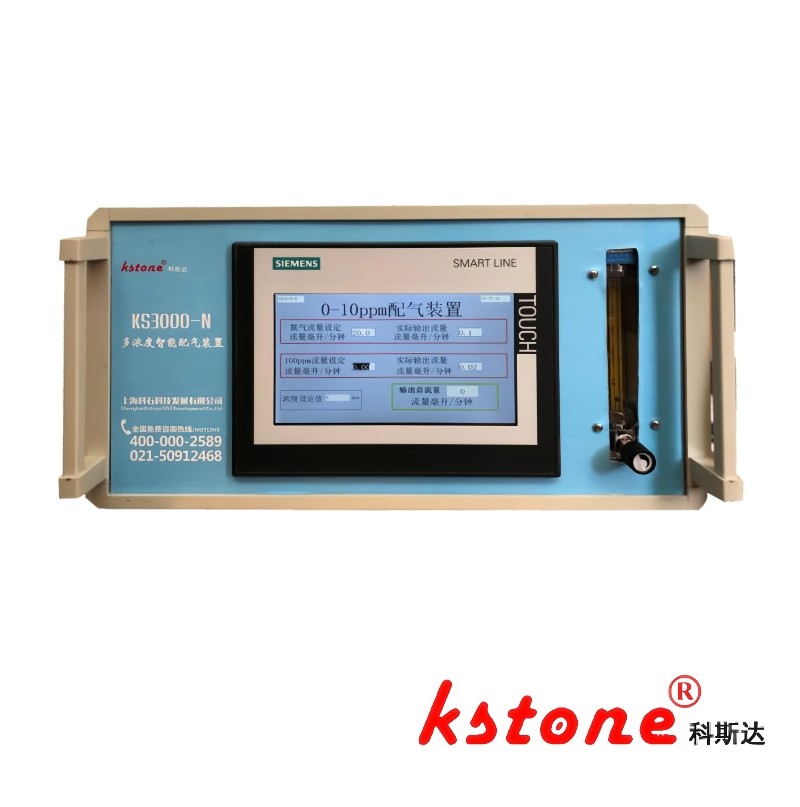

Automatic Gas Mixing Unit Distribution Dilution Device System, Flow Meters [KS3000-N]

  • Automatic Gas Mixing Unit Distribution Dilution Device System, Flow Meters [KS3000-N]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS3000-N
Minimum Order Quantity 5
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Flow Repeatability ≤± 0.5% Flow Linear Error ≤± 0.3%
Gas Distribution Uncertainty ± 1% Preheating Time 30 Minutes
Zero Adjustment Automatic MFC Zero Adjustment After Preheating; Manual Reset Option Power Supply 220VAC
Operating Environment 5°C To 45°C Dimensions 390mm (W) X 120mm (H) X 390mm (D)
Weight ~9kg  Pure SF6 And N2 Configured With 1% -99% SF6 Gas
00ppm (V) SF6 And N2 Configured With SF6 Gas Ranging From 0.5ppm (V) To 99ppm (V)  1000ppm (V) SF6 And N2 Configured With SF6 Gas Ranging From 5ppm (V) To 999ppm (V)
Highlight

Automatic Gas Mixing Unit

,

Dilution Gas Mixing Unit

,

Automatic gas dilution system
Leave a Message
Product Description

Automatic Gas Distribution Device, flow meters, Dilution gas KS3000-N



Based on over 10 years of research on SF6 and environmentally friendly gases by "shanghai kstone", we have developed an automatic gas distribution device that can be used for various gas concentrations: KS3000-N, which uses imported flow meters, Siemens PLC systems, and touch screen control; High stability and repeatability; The prepared standard gas is accurate, reliable, easy to transfer and trace values, and easy to operate.



FEATURES
● Can be used for dilution of various gases, including but not limited to SF6, CF3I, 3MTMNovecTM4710, CO2, etc.
● The output gas ratio is the volume ratio.
● Conventional dilution ratio: 300:1, within which the gas concentration can be set arbitrarily.
● Easy to operate, only need to input the concentration of the gas distribution.
● Large flow or super large dilution ratio can be customized according to customer requirements.
● The compression and filling equipment for diluted gas can be customized according to customer requirements.
● In some application scenarios, due to the fixed gas concentration output, it can be designed as a fixed proportion gas distribution device.



Technical Parameter Specification
Flow Repeatability ≤± 0.5%
Flow Linear Error ≤± 0.3%
Gas Distribution Uncertainty ± 1%
Preheating Time 30 minutes
Zero Adjustment Automatic MFC zero adjustment after preheating; manual reset option
Power Supply 220VAC
Operating Environment 5°C to 45°C
Dimensions 390mm (W) x 120mm (H) x 390mm (D)
Weight ~9kg



Application Cases
1. Pure SF6 and N2 can be configured with 1% -99% SF6 gas.
2. 100ppm (V) SF6 and N2, can be configured with SF6 gas ranging from 0.5ppm (V) to 99ppm (V).
3. 1000ppm (V) SF6 and N2, can be configured with SF6 gas ranging from 5ppm (V) to 999ppm (V).



This device can be customized according to customer requirements, and can be customized to mix more than 2 gases. It can also be customized to meet different flow requirements for gas distribution equipment.
