SF6 Gas Purification System, 4x Regenerable Molecular Sieves, External Moisture Filtration KS3000-GL-4-PG

  • SF6 Gas Purification System, 4x Regenerable Molecular Sieves, External Moisture Filtration KS3000-GL-4-PG
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS3000-GL-4-PG
Minimum Order Quantity 1
Price $3500-$3800
Packaging Details Wooden Box
Delivery Time 30 days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

SF6 hydrogen purification system

,

Auto hydrogen purification system

,

SF6 gas purification system
Leave a Message
Product Description
model :KS3000-GL-4-PG

Mainly externally connected to the outlet of the recycling device or gas storage tank, with an external filtering component to ensure that the gas and moisture entering the product are qualified;

Core Functions

Mainly externally connected to the outlet of the recycling device or gas storage tank, with an external filtering component to ensure that the gas and moisture entering the product are qualified;

Engineered for industrial gas purification, this system efficiently dries non-corrosive gases such as SF6, dry air, and nitrogen. It achieves ≤50ppm moisture content in a single pass through its advanced 4-stage molecular sieve filtration. The regenerable sieves ensure long-term cost-effective operation with minimal maintenance.

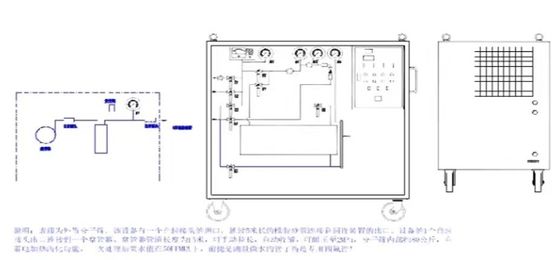

System Architecture

  • Filtration Unit: Quad molecular sieve configuration for deep moisture removal
  • Auto Coil Assembly: 15m self-retracting pipeline with 2MPa pressure rating
  • Thermal Management: 4 heating modules with precision temperature control
  • Flow Control: Dual inlet/outlet ports with optional DN20 self-sealing valves
  • Monitoring: Integrated pressure gauge for real-time system feedback

Technical Specifications

Parameter Specification
Model KS3000-GL-4-PG
Process Gases SF6, dry air, nitrogen (non-corrosive)
Moisture Efficiency ≤50ppm after single-pass treatment
Molecular Sieve Capacity 4 regenerable units
Coil Pipeline 15m self-retracting, 2MPa max pressure
Heating Power 4 modules with PID temperature control
Valves Optional DN20 self-sealing valves
Physical Dimensions 160×50×135 cm (L×W×H)
System Weight 150 kg (approx.)
Operational Pressure Up to 2MPa
Regeneration Cycle Fully automated sieve regeneration
