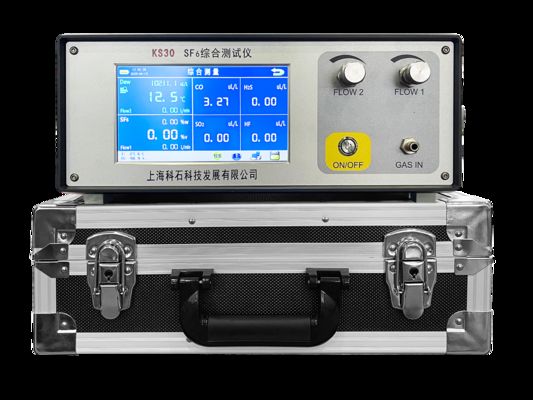

KS30-CS SF6 Gas Tester: Constant-Temperature Adiabatic Design for Dew Point & Purity Analysis in Power/Chemical Sectors

  • KS30-CS SF6 Gas Tester: Constant-Temperature Adiabatic Design for Dew Point & Purity Analysis in Power/Chemical Sectors
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KS30-CS
Document gas tester.pdf
Price $6500-$75000
Packaging Details Carton / Wooden box
Delivery Time 10 work days
Payment Terms T/T
Supply Ability 100 set/y
Product Details
Purity Measurement Range 0～100% Measurement Accuracy ±0.5℃
Resolution 0.01% Dew Point Range -80℃ — +20℃
Moisture Range 0.05—23100 μL/L Measurement Response Time (+20℃) -60℃→20℃ 5S[30s]; 20℃→-60℃ 10S[300S]
Repeatability ±0.2℃
Highlight

Adiabatic Design SF6 Gas Tester

,

Constant-Temperature SF6 Gas Tester

,

Chemical Sectors SF6 Gas Tester
Leave a Message
Product Description
[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

The KS30-CS SF6 gas analyzer adopts a constant-temperature and adiabatic design, which can reduce the impact of sample gas temperature and ambient humidity, and improve measurement accuracy. It is mainly used to measure the SF6 gas purity (volume/mass percentage) of mixed gases including SF6 & air and SF6 & N2. By the same token, products of this series can also be used for purity measurement of other types of gases, such as H2 & N2 mixtures. This equipment is also equipped with a dew point testing function (for the purity measurement of other gas types, the type of mixed gas must be specified before purchase).

The SF6 gas analyzer can be widely used in fields such as electric power, chemical industry, metallurgy, iron and steel, and gas industry, for analyzing gas purity and conducting dew point tests.

Functional Features
  1. Long-life detection module
  2. High accuracy and good repeatability
  3. Built-in pressure maintaining valve and electronic flowmeter
  4. Measurement results not affected by ambient temperature
  5. Fast measurement response speed
  6. Color touch screen control and graphical interface for easier operation
Parameter Category Specific Parameters
Purity Measurement range: 0～100%
Measurement accuracy: ±0.5% (±0.2% within a certain range)
Resolution: 0.01%
Dew Point Dew point range: -80℃ — +20℃
Measurement accuracy: ±0.5℃
Moisture range: 0.05—23100 μL/L
Measurement response time (+20℃): -60℃→20℃ 5S[30s]; 20℃→-60℃ 10S[300S]
Repeatability: ±0.2℃
Resolution: Dew point: 0.1℃; Moisture: 0.1ppm (100ppm～1000ppm), 0.01ppm(10ppm～100ppm)
Sample Gas Flow 0.2±30%L/min
Sample Gas Pressure ≤10bar
Response Time ≤30s
Environmental Conditions Temperature: -20℃～+50℃; Humidity: 5～95%RH
Working Power Supply Lithium battery power supply, 100～240AC, 50/60HZ, AC/DC dual-use
Dimensions 414333177mm
Weight 3Kg
Why Choose Kstone?
1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
