Modular Customizable SF6 Gas Analyzer with Dew Point Range -80°C to +20°C for Integrated Multi-Parameter Analysis
| Place of Origin | Shanghai |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO9000 |
| Model Number | KS30 |
| Minimum Order Quantity | 1 |
| Price | $10000-15000 |
| Packaging Details | Carton/ Wooden box |
| Delivery Time | 15 work days |
| Payment Terms | T/T |
| Supply Ability | 1000 units per year |
Product Details
| Dew Point Range | -80°C To +20°C | Supported Units | Dew Point, Ppmv, Etc. |
|---|---|---|---|
| Accuracy | ±1°C | Resolution | 0.1°C / 0.1 Ppm |
| Highlight | Modular SF6 gas analyzer,Customizable SF6 gas tester,SF6 analyzer with dew point |
||
Product Description

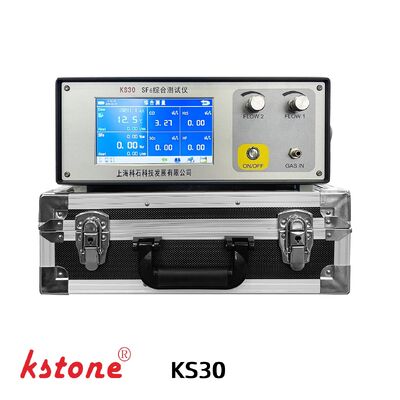

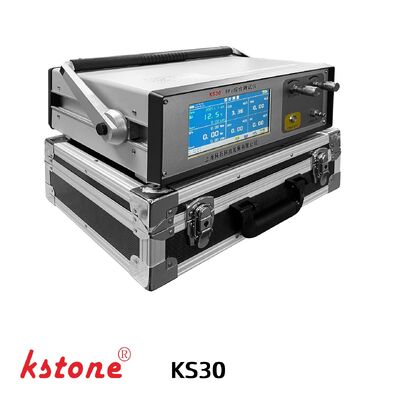

KS30 Series SF6 Comprehensive Analyzer
The KS30 Series SF6 Comprehensive Analyzer is a modular multi-function gas analysis system designed for SF6 gas quality testing in electrical power applications. The instrument integrates SF6 moisture measurement, SF6 purity analysis and SF6 decomposition gas detection into one portable platform.
Most KS30 models are modular customized configurations. Shanghai Kstone provides tailored solutions according to different customer requirements and application scenarios.
As a participating drafting company of the Chinese power industry standards DL/T 1366-2023 (SF6 Gas for Electrical Equipment) and DL/T 1353-2024 (Technical Specification for SF6 Handling Systems), the KS30 series is designed to meet the practical requirements of GIS maintenance, substation commissioning and SF6 gas quality management.
Main Functions
SF6 Moisture Measurement
- Dew point testing
- ppmv conversion
- Trace moisture analysis
- GIS gas humidity monitoring
SF6 Purity Analysis
- SF6 concentration testing
- Gas quality verification
- New gas acceptance inspection
- Mixed gas analysis
SF6 Decomposition Gas Detection
- SO2 monitoring
- H2S detection
- CO analysis
- HF detection
- Arc decomposition evaluation
Technical Specifications
SF6 Moisture Analysis
| Item | Specification |
|---|---|
| Dew Point Range | -80°C to +20°C |
| Supported Units | Dew Point, ppmv, etc. |
| Accuracy | ±1°C |
| Resolution | 0.1°C / 0.1 ppm |
| Gas Flow Rate | 0.25-0.35 L/min |
| Flowmeter | Electronic mass flowmeter |
| Pressure Measurement | 0-1.0 MPa |
| Probe Protection | Stainless steel sintered filter |
Response Time
| Condition | Response Time |
|---|---|
| +20 -> -20°C Td | 5 s [63%], 45 s [90%] |
| -20 -> -60°C Td | 10 s [63%], 240 s [90%] |
SF6 Purity Analysis
| Item | Specification |
|---|---|
| Measurement Range | 0-100% SF6 |
| Accuracy & Repeatability | ±0.1% |
| Response Time | 30 s |
| Flow Influence | Independent of gas flow |
SF6 Decomposition Gas Analysis
| Gas | Range | Accuracy |
|---|---|---|
| H2S | 0-200 ppm | ≤±0.5% |
| SO2 | 0-100 ppm | ≤±0.5% |
| CO | 0-1000 ppm | ≤±0.5% |
| HF | 0-10 ppm | ≤±0.5% |
Additional Parameters
| Item | Specification |
|---|---|
| Sensitivity | 0.1 ppm |
| Repeatability | ≤±1% |
General Specifications
| Item | Specification |
|---|---|
| Power Supply | 220 VAC ±10%, 50 Hz |
| Battery Function | AC/DC dual-use with overcharge protection |
| Continuous Operation | ≥5 hours |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | -30°C to +60°C |
| Pressure Range | 0-20 bar |
| Data Storage | 200 records |
| Output Interface | USB 1.1 |
| Software | Standard management software with report printing |
| Additional Tools | Moisture conversion toolkit |
| Dimensions | 132 * 283 * 308 mm |
KS30 Series Model Selection
| Model | Purity | Dew Point | SO2 | H2S | CO | HF | Gas Recovery |
|---|---|---|---|---|---|---|---|
| KS30 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| KS30-6 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| KS30-3 | ✔ | ✔ | ✔ | ||||
| KS30-T | ✔ | ✔ | ✔ | ||||
| KS30-TC | ✔ | ✔ | ✔ | ✔ | |||
| KS30-CS | ✔ | ✔ | |||||
| KS30-4 | ✔ | ✔ | ✔ | ✔ | |||
| KS30-C3 | ✔ | ✔ | ✔ | ✔ | |||
| KS30-C4 | ✔ | ✔ | ✔ | ✔ | ✔ | ||
| KS30-C | ✔ | ||||||
| KS30-R-* | ✔ |
Instrument Interface Description
| No. | Function |
|---|---|
| 1 | Dew Point Display Area |
| 2 | Purity Display Area |
| 3 | CO Reading |
| 4 | SO2 Reading |
| 5 | H2S Reading |
| 6 | Return Key |
| 7 | Storage Key |
| 8 | Print Key |
| 9 | Cleaning Key |
| 10 | Calibration Key |
| 11 | Ambient Temperature & Humidity |
Key Features
Modular Customization Design
Most KS30 models support flexible modular configuration according to project requirements.
Integrated Multi-Parameter Analysis
Combines moisture, purity and decomposition gas testing in one portable instrument.
High Accuracy Sensors
Utilizes imported high-precision sensors with excellent stability and repeatability.
Portable Field Design
Compact structure suitable for GIS substations and on-site maintenance operations.
Electronic Mass Flow Control
Built-in electronic mass flowmeter ensures stable and accurate gas sampling.
Intelligent Data Management
Supports data storage, USB export and report printing.
Optional Gas Recovery Function
Selected models support integrated SF6 gas recovery function for environmentally friendly operation.
Application Scenarios
Electrical Power Industry
- GIS commissioning
- Circuit breaker maintenance
- SF6 gas quality inspection
- Substation maintenance
SF6 Gas Management
- New gas acceptance testing
- Recycled gas evaluation
- SF6 purification monitoring
- Gas cylinder inspection
Preventive Maintenance
- Insulation condition assessment
- Arc decomposition monitoring
- Fault diagnosis
- Condition-based maintenance
FAQ
What parameters can the KS30 analyze?
The KS30 can measure SF6 dew point, SF6 purity and decomposition gases including SO2, H2S, CO and HF depending on the model configuration.
Is the KS30 customizable?
Yes. Most KS30 models are modular customized systems designed according to customer requirements.
Does the instrument support gas recovery?
Selected KS30-R models support integrated SF6 gas recovery functionality.
Is the analyzer suitable for GIS substations?
Yes. The KS30 series is specifically designed for GIS inspection and electrical power maintenance applications.
Can measurement data be exported?
Yes. The analyzer supports USB data export, report printing and internal data storage.
Does the analyzer include management software?
Yes. Standard management software with report printing and moisture conversion tools is included.
Why Work With KSTONE
- Professional gas detection equipment manufacturer
- Extensive HVAC and SF6 application experience
- OEM & customized solution support
- Fast technical response
- Stable industrial-grade product quality
- Global B2B export experience
Contact us today for The KS30 Series SF6 Comprehensive Analyzer pricing, technical datasheets and customized solutions.
