KS30-C SF₆ Gas Purity Analyzer | Portable High Accuracy SF₆ Purity Tester

  • KS30-C SF₆ Gas Purity Analyzer | Portable High Accuracy SF₆ Purity Tester
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS30-C
Document ks30-c-sf6-gas-purity-a...er.pdf
Minimum Order Quantity 1
Packaging Details Wooden box/ Carton box
Delivery Time 15 work days
Payment Terms T/T
Supply Ability 1000 per year
Product Details
Measuring Gas SF₆ Measurement Range 0–100% SF₆
Accuracy ±0.1% Sensor Type Temperature-compensated Thermal Conductivity Sensor
Highlight

SF₆ Purity Tester KS30-C

,

KS30-C SF₆ Gas Purity Analyzer
Leave a Message
Product Description

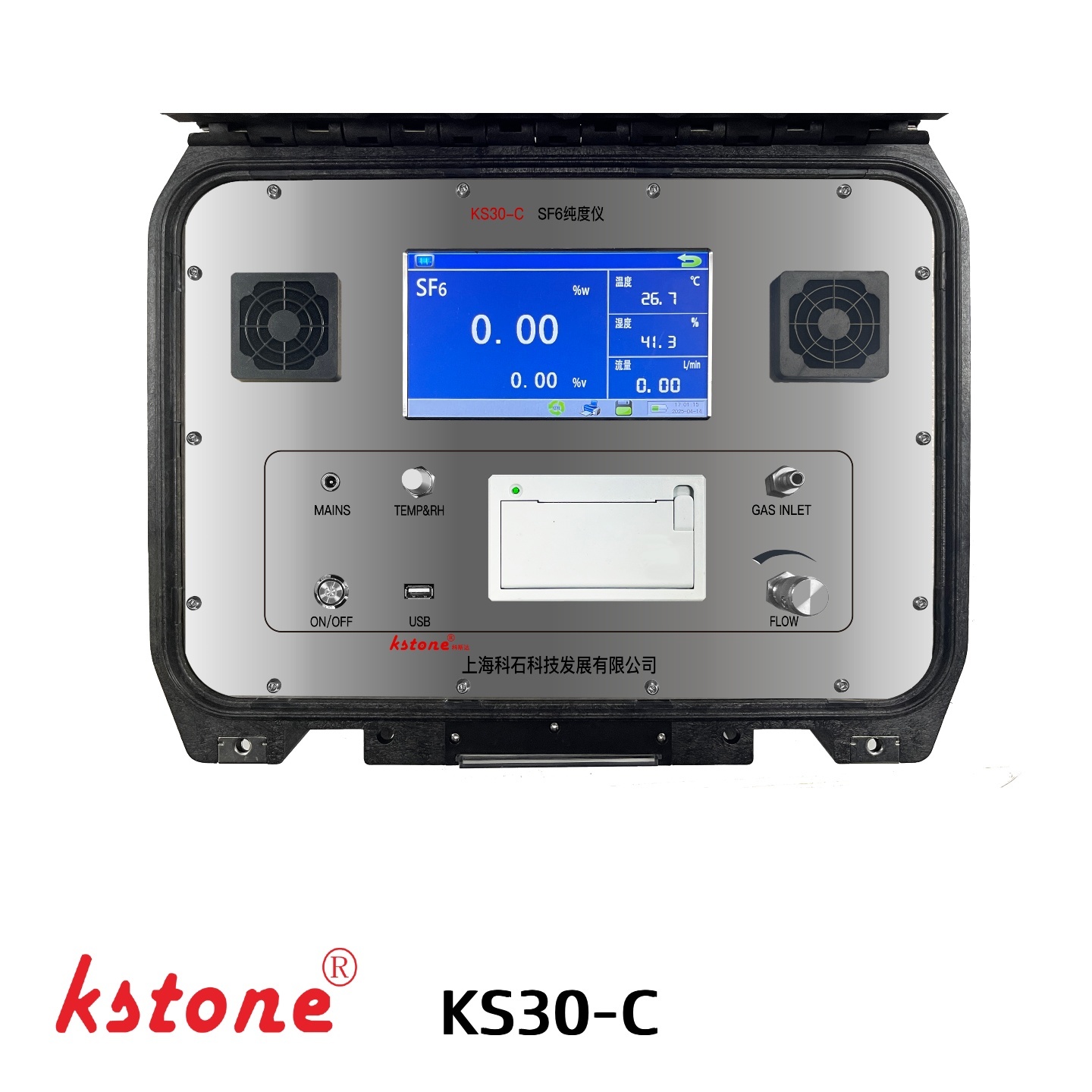

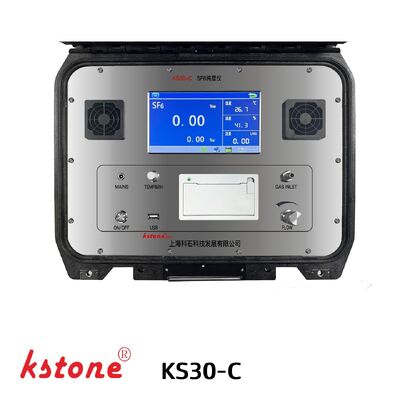

KS30-C SF₆ Gas Purity Analyzer

Product Overview

The KS30-C SF₆ Gas Purity Analyzer is designed for accurate measurement of SF₆ gas purity in gas-insulated electrical equipment. Equipped with a temperature-compensated thermal conductivity sensor, it provides highly accurate and stable measurements regardless of gas flow rate.

The analyzer features a color LCD display, intuitive one-button operation, large-capacity data storage, built-in rechargeable battery, USB data communication, and an integrated thermal printer, making it an ideal instrument for on-site GIS maintenance and gas quality inspection.

Features

  • High-precision thermal conductivity sensor with temperature compensation
  • Measurement unaffected by gas flow
  • Color LCD display with real-time parameter indication
  • Simple one-key operation
  • Built-in rechargeable lithium battery
  • AC/DC dual power supply
  • Continuous operation over 10 hours
  • Internal thermal printer for instant report printing
  • USB communication for PC data transfer
  • Stores up to 200 measurement records
  • Lightweight portable aluminum carrying case

Technical Specifications

Parameter

Specification

Measuring Gas

SF₆

Measurement Range

0–100% SF₆

Accuracy

±0.1%

Repeatability

±0.1%

Response Time

≤30 s

Sensor Type

Temperature-compensated Thermal Conductivity Sensor

Display

Color LCD

Data Storage

200 records

Printer

Built-in thermal printer

Communication

USB 1.1

Operating Pressure

0–20 bar

Operating Temperature

-30°C to +60°C

Storage Temperature

-40°C to +70°C

Power Supply

AC 220 V ±10%, 50 Hz / Built-in Rechargeable Battery

Battery Runtime

≥10 hours

Charging Protection

Overcharge protection

Dimensions

335 × 290 × 160 mm

Weight

Approx. 3.5 kg

Standard Configuration

Item

Quantity

KS30-C SF₆ Gas Purity Analyzer

1

Gas Inlet Hose

2 Sets

Gas Outlet Hose

1

Power Cable

1

Portable Aluminum Carrying Case

1

Applications

The KS30-C is suitable for SF₆ gas purity testing in:

  • Gas Insulated Switchgear (GIS)
  • High-voltage Circuit Breakers
  • Gas Insulated Transmission Lines (GIL)
  • SF₆ Gas Cylinders
  • Power Transmission & Distribution Utilities
  • Electrical Equipment Manufacturers
  • Maintenance Service Providers

Optional Accessories

  • Different gas couplings (DN8, DN20, DILO compatible, etc.)
  • Pressure reducing valve
  • Gas recovery bag
  • Calibration service
  • Customized hose length

Why Choose KSTONE

Reliable SF₆ Gas Testing Solutions for the Power Industry

With years of experience in SF₆ gas handling and testing equipment, KSTONE provides reliable instruments trusted by utilities, switchgear manufacturers, and maintenance companies worldwide.

Why Customers Choose KSTONE

  • High Measurement Accuracy
    Advanced sensor technology ensures stable and repeatable SF₆ purity measurements.
  • Professional Manufacturer
    Specialized in SF₆ gas analysis, recovery, vacuum pumping, and filling equipment.
  • Complete Product Portfolio
    From portable analyzers to complete gas handling systems for GIS and high-voltage equipment.
  • Strict Quality Control
    Every instrument is calibrated and tested before shipment to ensure dependable performance.
  • Customization Available
    Support for customized hose lengths, connectors, language interfaces, and accessories.
  • Global Technical Support
    Responsive pre-sales consultation and professional after-sales service for customers worldwide.

Contact Us

Looking for a reliable SF₆ Gas Purity Analyzer for your GIS maintenance or power utility projects?

Our engineers are ready to help you select the right configuration based on your application.

Shanghai Yushi Technology Development Co., Ltd.

📧 Email: info@kstone-sf6.com

🌐 Website: www.kstone-sf6.com

Request a quotation, technical datasheet, or OEM/ODM solution today. We will respond within 24 hours.
