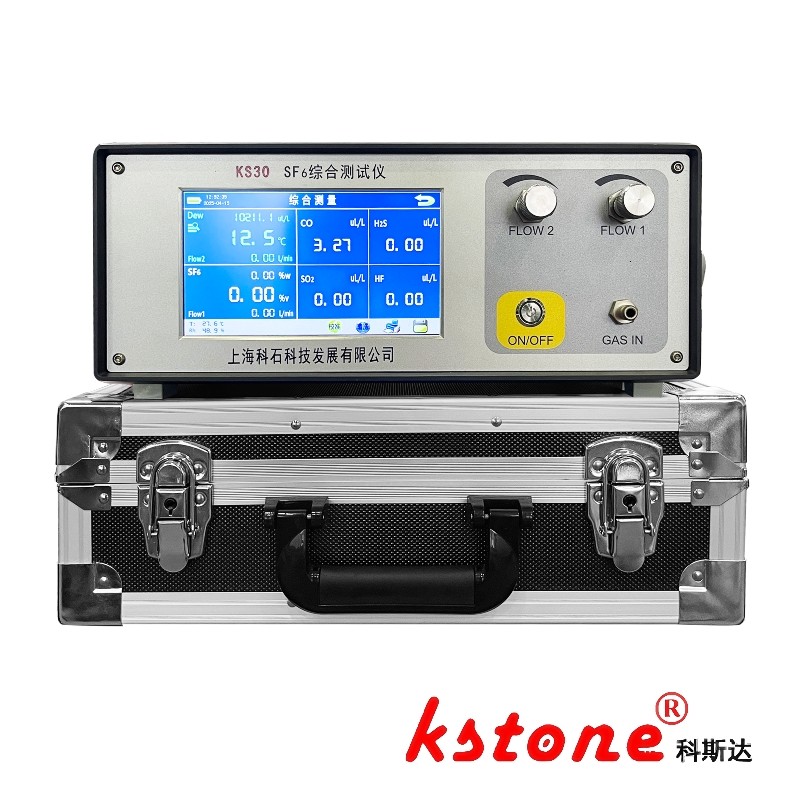

Dew Point SF6 Gas Tester Instrument 10W 220V [KS30]

  • Dew Point SF6 Gas Tester Instrument 10W 220V [KS30]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KS30
Price $12000-$25000
Packaging Details Carton / Wooden box
Delivery Time 10 work days
Payment Terms T/T
Supply Ability 100 set/y

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SF6 Humidity Measurement Range Dew Point: -80～+20℃ (Supports Ppmv, Etc.) Dew Point Accuracy ±1℃
Response Time +20→-20℃ Td: 5s[45s], -20→-60℃ Td: 10s[240s] Resolution Dew Point: 0.1℃ Or 0.1ppm
Gas Flow Rate 0.25～0.35L/min Pressure Measurement 0～1.0MPa
SF6 Purity Range 0～100% SF6 Accuracy And Repeatability ±0.1%, Independent Of Flow Rate
Highlight

OEM SF6 Gas Tester

,

220V SF6 Gas Tester

,

10W sf6 tester
Leave a Message
Product Description

Dew Point SF6 Gas Tester Instrument 10W 220V [KS30]



Most SF6 comprehensive testers, except for a few commonly used models, are basically modular and customizable.

We will provide customized services according to the needs of our customers.



Dew point testing is a part of the comprehensive testing instrument, and our company's model is kst-vii, using Vaisala 143 sensors;



Our company is one of the units responsible for formulating the industry standards issued by the National Energy Administration of China,

namely "DL/T1366-2018 Sulfur Hexafluoride Gas for Power Equipment"

and "DL/T1353-2024 Technical Specifications for Sulfur Hexafluoride Treatment Systems".



Technical Specifications



SF6 Humidity
Measurement Range Dew point: -80～+20℃ (Supports ppmv, etc.)
Dew Point Accuracy ±1℃ (When the dew point temperature is lower than 0℃, the sensor output is the frost point)
Response Time 63％[90％]
+20→-20℃ Td: 5s[45s]
-20→-60℃ Td: 10s[240s]
Resolution Dew point: 0.1℃ or 0.1ppm
Gas Flow Rate 0.25～0.35L/min
Equipped with an electronic mass flowmeter
No impact from the sample gas flow rate
Pressure Measurement 0～1.0MPa
Probe Protection Stainless steel sintered filter screen
SF6 Purity
Range 0～100% SF6
Accuracy and Repeatability ±0.1%, independent of flow rate
Response Time 30S
SF6 Decomposition Products
H2S Measurement range: 0～200ppm
Accuracy: ≤±0.5%
SO2 Measurement range: 0～100ppm
Accuracy: ≤±0.5%
CO Measurement range: 0～1000ppm
Accuracy: ≤±0.5%
HF Measurement range: 0～10ppm
Accuracy: ≤±0.5%
Sensitivity 0.1 ppm
Repeatability ≤±1%
General Part
Operating Voltage 220VAC±10%, 50Hz. Both AC and DC available. Overcharge protection. Continuous working time is not less than 5 hours.
Storage Temperature Range -40～+70℃
Output Interface Compliant with USB1.1 specification
Data Storage Can store 200 records
Operating Environment Temperature: -30～+60℃
Pressure: 0～20bar
Sample Gas Flow Rate: No impact
Other Configurations Standard version management software, including report printing and commonly used humidity conversion toolkit
Dimensions 132×283×308 (presumably in mm, if not, please clarify the unit)

Dew Point SF6 Gas Tester Instrument 10W 220V [KS30] 0

  1. Dew Point Display Area (Operable)
  2. Purity Display Area
  3. CO Indication Value
  4. SO2 Indication Value
  5. H2S Indication Value
  6. Back Key
  7. "Storage" Key
  8. "Print" Key
  9. "Cleaning" Key
  10. "Calibration" Key
  11. Ambient Temperature and Humidity

Selection of KS30 Series Comprehensive Testers

Model Purity Dew Point SO₂ H₂S CO HF Equipped with Recycling Function
KS30 √ √ √ √ √
Ks30-6 √ √ √ √ √ √
KS30-3 √ √ √
KS30-T     √ √ √
KS30-TC √   √ √ √
KS30-CS √ √
KS30-4     √ √ √ √
KS30-C3 √   √ √ √
KS30-C4 √   √ √ √ √
KS30-C √
kS30-R-*             √

SF6 comprehensive testers, except for a few commonly used models, are basically modular customized.

We will provide customized services based on customer needs.
