SF6/N2 Mixing Device, High Flow Mixing, 30% SF6, SF6 And CF4 Mixing, C4F7N And CO2 Mixing [KSLF-28/30WY20/NZ]

  • SF6/N2 Mixing Device, High Flow Mixing, 30% SF6, SF6 And CF4 Mixing, C4F7N And CO2 Mixing [KSLF-28/30WY20/NZ]
  • SF6/N2 Mixing Device, High Flow Mixing, 30% SF6, SF6 And CF4 Mixing, C4F7N And CO2 Mixing [KSLF-28/30WY20/NZ]
  • SF6/N2 Mixing Device, High Flow Mixing, 30% SF6, SF6 And CF4 Mixing, C4F7N And CO2 Mixing [KSLF-28/30WY20/NZ]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLF-28/30WY20/NZ
Minimum Order Quantity 1
Price $35000-$40000
Packaging Details Wooden Box
Delivery Time 30 days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Air-cooled Piston Theoretical Flow Rate 14 M³/h
Max. Discharge Pressure 5 MPa Allowable Working Pressure 1 MPa
Suction Pressure Range 53 KPa ~ 0.5 MPa Max. Discharge Temperature 130°C
Highlight

SF6 N2 Gas Mixing Unit

,

N2 CF4 Gas Mixing Unit

,

SF6 CF4 gas mixing system
Leave a Message
Product Description

SF6/N2 Mixing, SF6 And CF4 Mixing, C4F7N And CO2 Mixing, KSLF-28/30WY20/NZ

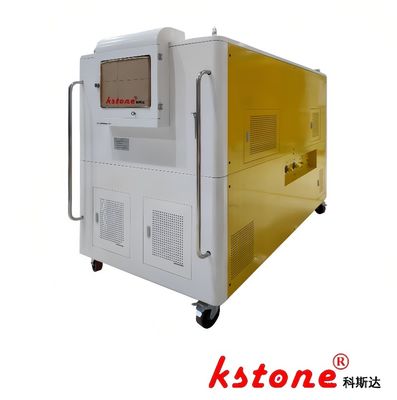

This device is mainly used for SF6/N2 mixed gas inflation, and can also be applied to SF6 and CF4 mixting, SF6 and AIR mixting, C4F7N and CO2 mixting, etc. It is an industrialized mixing equipment, and the actual mixing speed can reach 10Nm3/h.

At present, this equipment is mainly used for environmental protection actions promoted by State Grid Corporation of China, such as mixed gas GIS and SF6/N2 mixture, with a ratio of 3:7 between SF6 and N2.

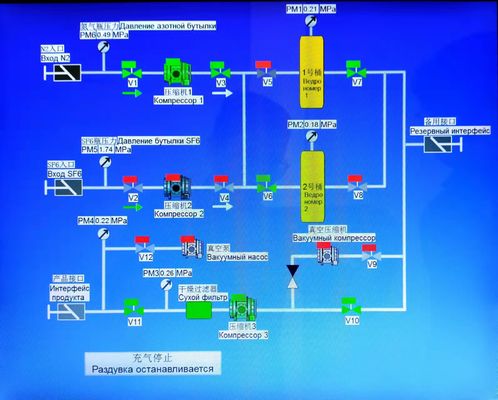

This gas mixing and charging device is composed of a vacuum pump, compressor, filtration system, and various valves, instruments, etc. It has the functions of vacuum pumping, gas mixing, and gas charging.



1. Technical Parameters of Main Components

SF6 Compressor Form   Air-cooled Piston
Theoretical Exhaust Volume m³/h 14
Maximum Discharge Pressure MPa 2
Allowable Discharge Pressure MPa 1
Minimum Allowable Suction Pressure KPa 53
Maximum Allowable Suction Pressure MPa 0.5
Maximum Discharge Temperature ℃ 130
Lubricating Oil   None
Power kW 2.2
Power Supply   3Φ 380V 50Hz
Pumping Rate m³/h 54
Ultimate Vacuum Pa ≤10
Vacuum Pump

 		 Lubricating Oil   PRO-200 Vacuum Pump Oil
Power kW 2.2
Power Supply

3Φ 380V 50Hz
N2 Compressor







 		 Theoretical Exhaust Volume m³/h 14
Maximum Discharge Pressure MPa 2
Allowable Discharge Pressure MPa 1
Minimum Allowable Suction Pressure KPa 53
Maximum Allowable Suction Pressure MPa 0.5
Maximum Discharge Temperature ℃ 130
Lubricating Oil   NONE
Power kW 2.2
Power Supply

3Φ 380V 50Hz
Mixed Gas Charging Compressor



 		 Form   Air-cooled Piston
Theoretical Exhaust Volume m³/h 30
Maximum Discharge Pressure MPa 5
Allowable Discharge Pressure MPa 1
Minimum Allowable Suction Pressure KPa 53
Maximum Allowable Suction Pressure MPa 0.5
Maximum Discharge Temperature ℃ 130
Lubricating Oil   NONE
Power kW 11



The mixing ratio tested after using this mixing equipment
