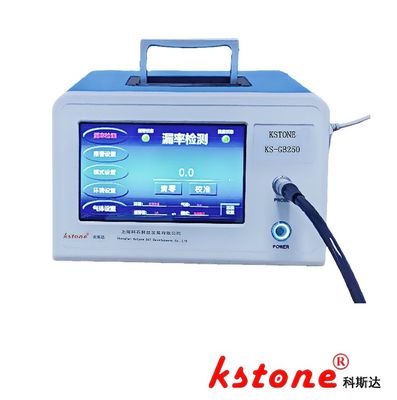

0.1ppm SF6 R22 Refrigerant Gas Leak Detector NDIR Sensor Touchscreen Control [KS-GB250]

  • 0.1ppm SF6 R22 Refrigerant Gas Leak Detector NDIR Sensor Touchscreen Control [KS-GB250]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS-GB250
Minimum Order Quantity 5
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000 per year
Product Details
Sensitivity 0.1 Ppm Dimensions & Weight 280×260×180mm (L×W×H), ~2.5kg
Response Time Less Than 1 Second Power Supply AC85–240V, 50/60Hz
Operating Temperature -20°C To +50°C Detection Principle NDIR Sensor
Measurement Range 0–100g/a (Annual Rate) / 0–1000ppm (Concentration) Repeatability ±1%
Highlight

0.1ppm refrigerant gas leak detector

,

R22 refrigerant gas leak detector

,

R22 leak refrigerant detector
Leave a Message
Product Description
CH Refrigerant CO₂ NH₃ Leak Detector - NDIR Sensor, 0.1ppm Sensitivity - KS-GB250



Designed for multi-gas leak detection, the KS-GB250 employs a non-dispersive infrared (NDIR) sensor, offering robust anti-interference capability for precise measurements of SF6, R22, R410, R600, CO₂, NH₃, and more. Its embedded computer system ensures stability, while the sensor’s automatic calibration function minimizes maintenance. The detector features intuitive touch control, digital direct reading, and alarm capabilities with sound and color-changing visual alerts.


Key Features

  1. Multi-Gas Compatibility:Supports 13+ refrigerants across four sensor types, ideal for diversified industrial applications.
  2. Intelligent System:Embedded computer with auto-calibration ensures long-term accuracy without manual adjustment.
  3. User-Friendly Interface:Touchscreen control, real-time flowmeter monitoring, and customizable alarm points for intuitive operation.
  4. Data Management:Stores measurement records with time stamps, enabling direct printing or USB export for report generation.

Technical Parameters

Parameter Details
Detection Principle NDIR (non-dispersive infrared) sensor
Sensitivity 0.1ppm (gas concentration) / 0.1g/a (annual leakage rate)
Measurement Range 0-100g/a (annual rate) / 0-1000ppm (concentration)
Response Time <1 second
Preheating Time 2 minutes
Repeatability ±1%
Detectable Gases
- LS-1: SF6, R22, R134a, R404, R407, R410, Hp-1, R1233ZD
- LS-2: R600, R290
- LS-3: NH₃
- LS-4: CO₂
Display Units g/a, mL/s, Pam³/s, ppm
Alarm Function Sound alert with color-changing numerical display
Data Output RJ45, printer, USB
Operating Conditions Temperature: -20~50℃
Humidity: ≤90% RH (non-condensing)
Power Supply AC85-240V, 50/60Hz
Dimensions & Weight 280×260×180mm (L×W×H), ~2.5kg
