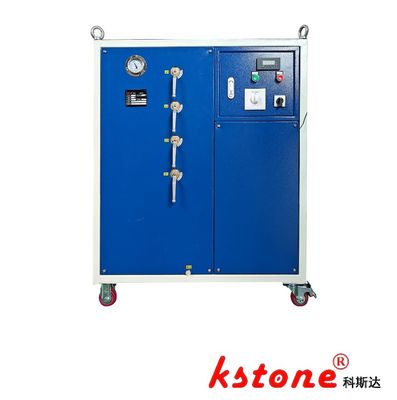

Dry Air Equipment, 30ppm Moisture, Adsorption Drying, Dry Air Source [KS3000-80-CZ4]

  • Dry Air Equipment, 30ppm Moisture, Adsorption Drying, Dry Air Source [KS3000-80-CZ4]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS3000-80-CZ4
Minimum Order Quantity 1
Price $2500-$2800
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 220V Power Consumption ≤6kw
Air Flow Rate 80L/min Moisture Filtration Outlet Moisture: 30-50ppmv @ 70% Inlet Humidity
Pressure Adjustment Range 0.1-6.0 MPa (customizable Low-pressure Setpoints With Fluctuation Control) Weight ≤150 Kg
Highlight

750W Dry Air Equipment

,

Refrigerant Dry Air Equipment

,

750W refrigerant dryers
Leave a Message
Product Description
KS3000-80-cz4 Dry Air System - 30ppm Moisture, 80L/min Flow, 0.1-6.0MPa Pressure, Vacuum Pump



The KS3000-80-cz4 is designed to extract moisture and particulates from natural air, delivering dry air with ≤30ppm(v) moisture content. Its flow rate is fully customizable to suit operational requirements, making it an ideal air source for air-insulated cabinets. The system also enables dry air flushing of gas-insulated cabinets as a cost-effective alternative to high-purity nitrogen. Equipped with a vacuum pumping function, it supports optional capacity expansion for enhanced versatility.

This integrated solution comprises a silent compressor, advanced moisture filtration unit, drying activation module, adjustable pressure system, and exhaust piping. It includes a vacuum pump, anti-reflux mechanism, and integrated pipelines. An optional online micro-water sensor (model: KS3000-80-CZ4-WS) can be installed to monitor activation needs, while both automatic and manual operation modes cater to diverse user preferences.

Technical Specifications Table (Excluding online moisture testing, manual control)

Parameter Specification
Compressor Flow Rate 80L/min (optional configuration)
Pressure Adjustment Range 0.1-6.0 MPa (customizable low-pressure setpoints with fluctuation control)
Drying Activation Output 15m³ of qualified dry air per 30-minute regeneration
Moisture Filtration Outlet moisture: 30-50ppmv @ 70% inlet humidity
Vacuum Pump Capacity 15m³/h
Dimensions (L×W×H) 1200×800×1620 mm
Weight ≤150 kg
Power Supply AC220V
Power Consumption ≤6 kW
Moisture Absorption ≥1.0 kg per activation (@ <50-60ppm)

Operational Features

  • Pressure Control Example: Set low pressure at 0.12 MPa with 0.02 MPa fluctuation; compressor stops at 0.14 MPa and restarts at 0.12 MPa.
  • Regeneration Protocol: When outlet micro-water exceeds standards, disconnect the pipeline, activate the drying system for 30 minutes to restore adsorbent efficiency.
