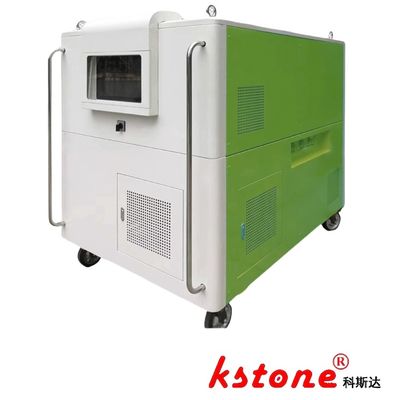

SF6 N2 C4F7N Gas Blending System Mixing Device Industrial Grade [KSLF-28/30WY20/NZ]

  • SF6 N2 C4F7N Gas Blending System Mixing Device Industrial Grade [KSLF-28/30WY20/NZ]
  • SF6 N2 C4F7N Gas Blending System Mixing Device Industrial Grade [KSLF-28/30WY20/NZ]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLF-28/30WY20/NZ
Minimum Order Quantity 1
Price $2000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 60 days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

SF6 gas blending system

,

C4F7N gas blending system

,

SF6 gas mixing device
Leave a Message
Product Description
KSLF-28/30WY20/NZ Gas Mixing System – SF6/N2/C4F7N Blending Solution

System Overview

kstone is a recommended manufacturer of mixed gas equipment for China State Grid, according to the 2022 (290) document.


This industrial-grade gas mixing unit is designed for SF6/N2 mixture inflation, supporting applications like SF6/CF4, SF6/AIR, and C4F7N/CO2 blending. With a 10Nm³/h mixing capacity, it's optimized for State Grid China's environmental initiatives, such as 3:7 SF6/N2 ratio gas for GIS systems. The device integrates vacuum pumping, precise gas mixing, and charging functions via a piston compressor system, filtration module, and intelligent control valves.

Technical Configuration Table

Component SF6 Compressor N2 Compressor Mixed Gas Charging Compressor
Type Air-cooled Piston Air-cooled Piston Air-cooled Piston
Theoretical Flow Rate 14 m³/h 14 m³/h 30 m³/h
Max. Discharge Pressure 2 MPa 2 MPa 5 MPa
Allowable Working Pressure 1 MPa 1 MPa 1 MPa
Suction Pressure Range 53 kPa ~ 0.5 MPa 53 kPa ~ 0.5 MPa 53 kPa ~ 0.5 MPa
Max. Discharge Temperature 130°C 130°C 130°C
Lubrication System Oil-free Oil-free Oil-free
Power Rating 2.2 kW (3Φ 380V 50Hz) 2.2 kW (3Φ 380V 50Hz) 11 kW (3Φ 380V 50Hz)
Vacuum Pump 54 m³/h pumping rate - -
Ultimate Vacuum ≤10 Pa (PRO-200 oil lubricated) - -

Operational Capabilities

  • Gas Mixing Precision: Achieves 3:7 SF6/N2 ratio tolerance within ±0.5%
  • Environmental Applications: Supports low-GWP gas mixtures for GIS switchgear
  • System Functions: Vacuum pumping (≤10Pa), dynamic gas blending, high-pressure charging (up to 5MPa)

Equipment Specifications

Parameter Specification
Model Code KSLF-28/30WY20/NZ
Nominal Mixing Capacity 30 m³/h
Applicable Gas Mixtures SF6/N2, SF6/CF4, C4F7N/CO2, etc.
Control System PLC-based with touchscreen interface
Filtration Accuracy 0.1μm (particulate) / 3ppm (moisture)
Dimensions (L×W×H) 1800×1000×1500mm
Power Supply 3Φ 380V 50Hz, total 15.4kW


Tags:

gas blending system

gas dilution system

gas mixing system
