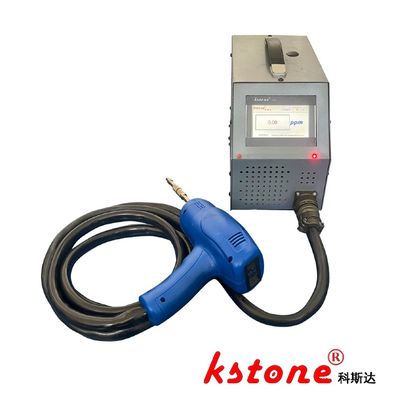

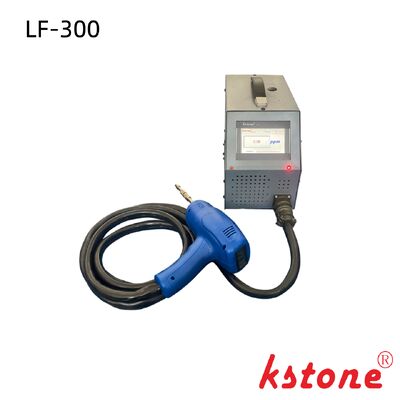

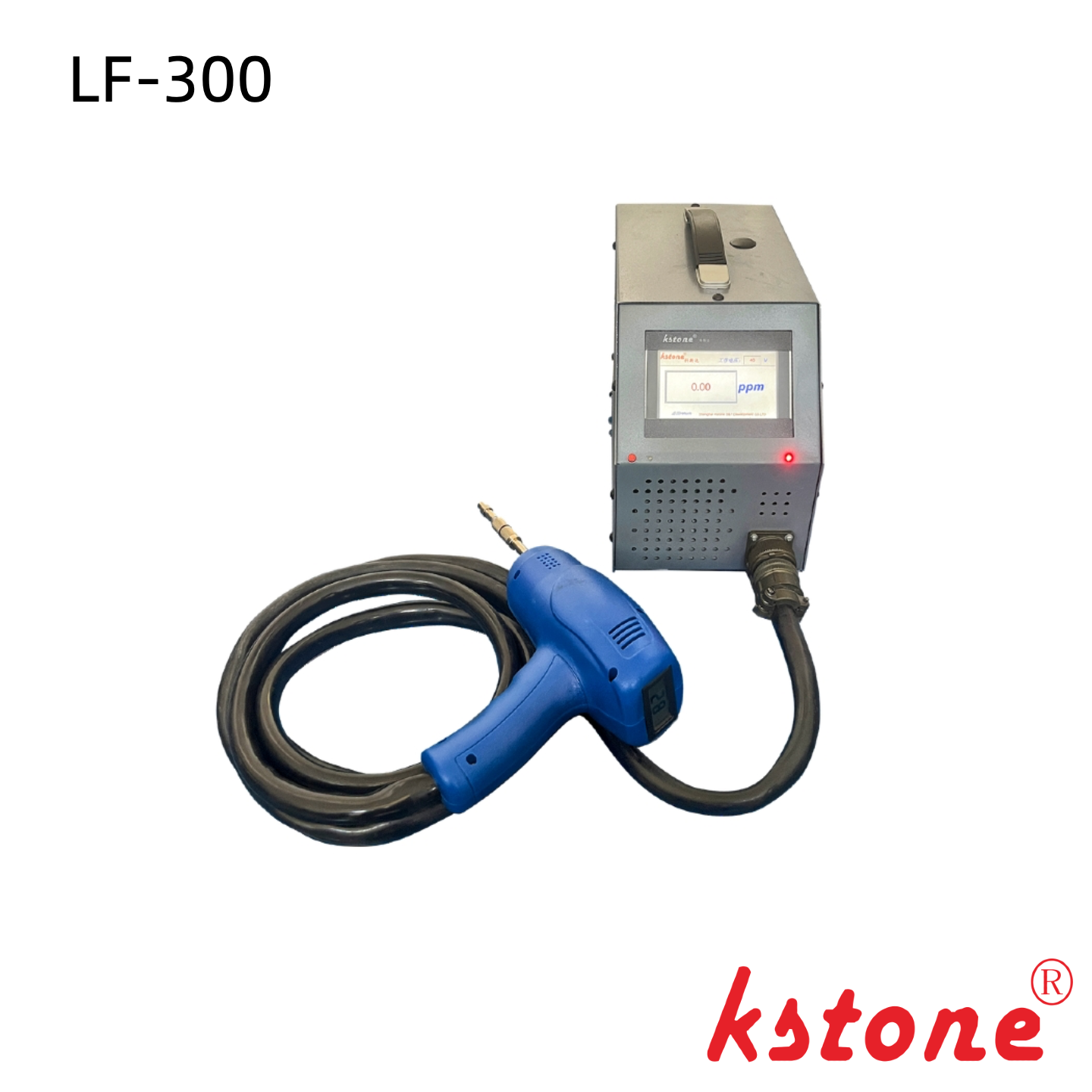

SF6 Leak Detector High Sensitivity 0.01ppm, Portable, Precise Quantification [LF-300]

Large Image : SF6 Leak Detector High Sensitivity 0.01ppm, Portable, Precise Quantification [LF-300]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25000-$26000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Measurement Range:	0.01ppm - 10000ppm(v)	Measurement Accuracy:	0.01ppm(v)
Minimum Resolution:	0.01ppm(v)	Response Time:	≤0.5 Seconds For 10ppm
Ambient Temperature:	5℃ - 50℃
Highlight:	240V SF6 Leak Detector , 1ppm SF6 Leak Detector , ODM refrigerant sniffer

SF6 Leak Detector High Sensitivity 0.01ppm , Portable , Precise Quantification LF-300

It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.

Accurately quantify 0.01ppm. It can replace USON Q200.

Technical Parameters:

Measurement Range	0.01ppm - 10000ppm(v)
Measurement Accuracy	0.01ppm(v)
Minimum Resolution	0.01ppm(v)
Recovery Time from "Poisoning"	≤10 seconds in an environment of 99.99% SF6 1 second in an environment of 10% SF6
Response Time	≤0.5 seconds for 10ppm ≤1 second for 1ppm
Indication Method	Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm LCD digital display of the detector: The higher the leakage concentration, the greater the digital change; Buzzer prompt: The higher the leakage concentration, the greater the sound frequency change of the buzzer;
Gas and Electric Integrated Hose of the Detector	Standard length is 3 meters (Can be customized as required, up to 10 meters)
Power Input Cable	2 meters
Input Power	220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available)
Ambient Temperature	5℃ - 50℃
Ambient Humidity	≤95%
Power	≤100W
Net Weight of the Whole Machine	Detector: 1.2Kg Main unit: 7.1Kg
External Dimensions of the Main Unit	310×168×200mm
Outer Packaging	Aluminum alloy anti-collision box
Weight of the Anti-collision Box	3.0Kg
External Dimensions of the Aluminum Alloy Box	370320270mm
