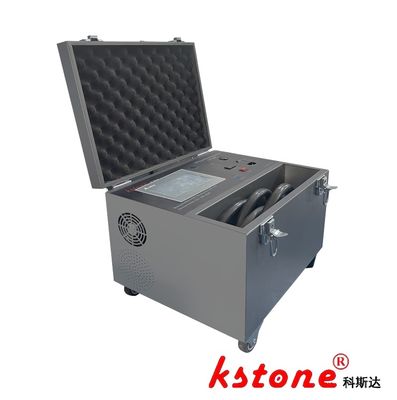

Portable Quantitative SF6 Leak Detector Gas Sensor 0.01ppm Sensitivity With Telescopic Handle

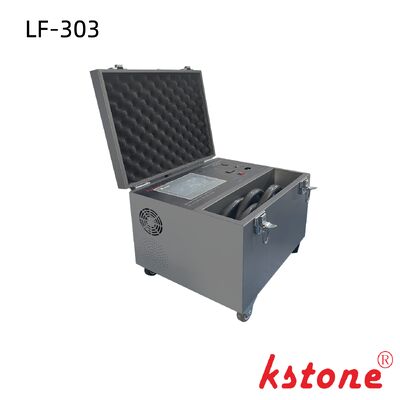

Large Image : Portable Quantitative SF6 Leak Detector Gas Sensor 0.01ppm Sensitivity With Telescopic Handle

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-302

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Display:	Digital LCD	Measurement Range:	0-1000ppm
Dimensions:	233 X 94 X 115 Mm	Storage Temperature:	-20°C To +60°C
Sensitivity:	1ppm	Response Time:	1 Second
Detection Principle:	Infrared Absorption	Weight:	1.8 Kg
Accuracy:	±2% Of Full Scale	Power Supply:	4 AA Batteries Or AC Adapter
Highlight:	Quantitative SF6 Leak Detector , 0.01ppm SF6 Leak Detector , Quantitative sf6 gas sensor

LF-302 Portable Telescopic Handle SF6 Quantitative Leak Detector | 0.01ppm Sensitivity, Oil-Free Pump

Product Overview

The LF-302 distinguishes itself with an oil-free vacuum pump. Engineered for precision SF6 leak detection, its telescopic handle design ensures mobility, while the low-voltage ionization technology delivers 0.01ppm sensitivity. The system includes audible-visual alarms and a fault self-check function for user-friendly operation.

Technical Parameters

Parameter	Details
Vacuum Pump Type	Oil-Free Diaphragm Pump (Maintenance-Free)
Sensitivity	0.01ppm (SF6, highest precision)
Measurement Range	0.01–10,000ppm (optimal: 0.01–100ppm)
Response Time	≤0.5s (≥1ppm SF6 environment)
Recovery Time	≤10s (99.99% SF6); ≤1s (10% SF6)
Power Source	AC 220V/50Hz or lithium battery (3-hour continuous operation)
Battery Life	50% longer than LF-301 (4-hour continuous use)
Protection Features	PM1.0 filter screen, fault self-check system
Sensor Lifespan	5–10 years (no radiation source)
Dimensions (Retracted)	400×340×320mm (L×W×H)
Weight	12.5±0.5kg
Warranty	1-year full coverage (including sensor)
