Customized portable SF6 gas leak detection sensor, most suitable for on-site leak detection

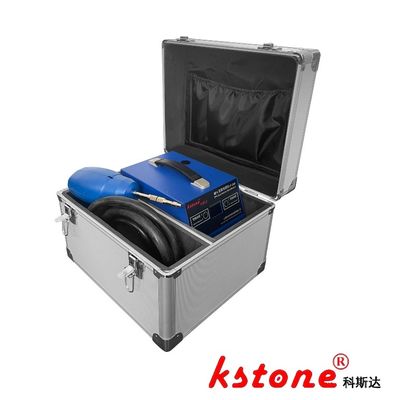

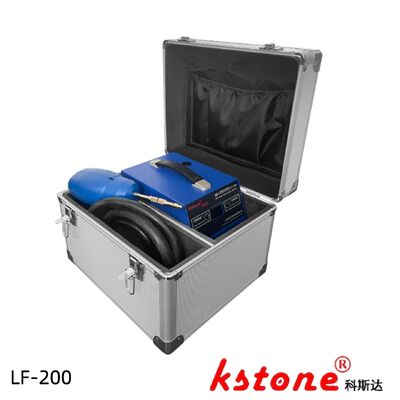

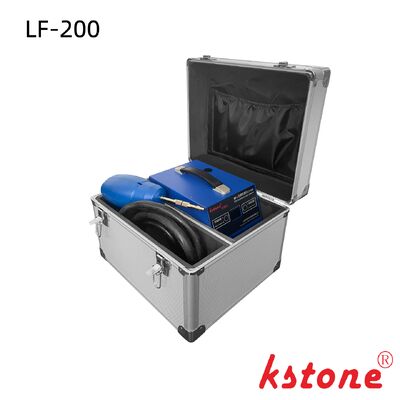

Large Image : Customized portable SF6 gas leak detection sensor, most suitable for on-site leak detection

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$8000-$10000
Packaging Details:	Carton / Wooden Box
Delivery Time:	30 work days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Sensitivity:	0.01 Ppm	Weight:	6.6 Kg
Storage Temperature:	-20 To 40 Degrees Celsius	Response Time:	Less Than 1 Second
Measurement Range:	0-1000 Ppm	Power Supply:	Ac220
Operating Temperature:	-20 To 40 Degrees Celsius	Dimensions:	220 X 85 X 50 Mm
Highlight:	custom dilo sf6 gas leak detector , dilo sf6 gas leak detector , SF6 gas leak sensors

LF-200 Portable SF6 Quantitative Leak Detector: 0.01ppm Sensitivity with Split Design & Patented Technology

KStone is a participant in the development of the Chinese national standard GB/T11023-2018;
KStone holds multiple invention patents for this type of product;

The LF-200 leak detector is most suitable for on-site leak detection；

The LF-200 redefines on-site SF6 leak detection as a cutting-edge portable solution for identifying micro-leaks and slow leaks. Compared to the LF-1D+, its enhanced portability makes it the preferred choice for field inspections. The detector integrates exclusive patented auxiliary startup technology, guaranteeing 100% successful ignition. With a split-design architecture, it weighs only 6.6kg, while a newly patented vacuum detection system automatically optimizes operational conditions, delivering intuitive user experience.

Key Features & Benefits:

Minimal Maintenance: Engineered without vulnerable components to reduce downtime and operational costs.
Intelligent Operation: Activates auto-mode within 5 minutes of vacuum pump startup, with real-time vacuum level monitoring.
Contamination Resistance: A continuous air circulation mechanism prevents dust and oil interference, ensuring rapid performance recovery.
Comprehensive Protection: Equipped with overheat protection, anti-dust inhalation safeguards, and replaceable fuses for reliable operation.
Portability & Durability: Housed in a metal anti-collision case, designed for frequent transport and rugged field use.

Leveraging low-voltage ionization technology in a high-frequency magnetic field, the LF-200 achieves 0.01ppm sensitivity—setting a standard for precision leak detection. Trusted by industry leaders such as Henan Pinggao Electric and Xi'an XD Switchgear, it combines split-portable design, patented innovation, and durable engineering for professional field applications.
