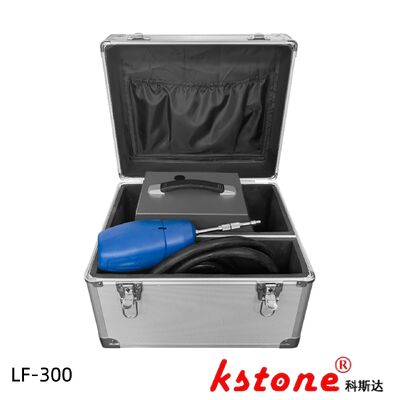

Precision of 0.01ppm, digital display of concentration, high sensitivity, portable leak detector

Large Image : Precision of 0.01ppm, digital display of concentration, high sensitivity, portable leak detector

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25000-$26000
Packaging Details:	Carton / Wooden Box
Delivery Time:	30 work days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Accuracy:	±2% FS	Power Supply:	Ac220
Data Transfer:	USB	Dimensions:	370×320×270
Display:	LCD	Certifications:	CE, RoHS, FCC
Weight:	8.3kg	Alarm:	Audible And Visual
Operating Temperature:	-20°C To 40°C	Sensitivity:	0.01ppm
Highlight:	Lightweight sf6 detector , 220W sf6 detector , Lightweight sf6 gas monitor

LF-300 High-Sensitivity SF6 Leak Detector: 0.01ppm Precision, Portable Quantification

The LF-300 utilizes low-voltage ionization in a high-frequency magnetic field, offering a radiation-free design for safety and reliability. Engineered without vulnerable components, it ensures minimal usage and maintenance costs, combined with long-term durability. An optional external lithium battery inverter supports field operations requiring mobile power.

Key Advantages

Ultra-High Sensitivity: Detects leaks as low as 0.01ppm with precise quantification.
Portable Design: Lightweight detector (1.2kg) and compact main unit, housed in an aluminum anti-collision case for field mobility.
Reliable Performance: Fast response (<1s) and recovery from contamination, suitable for high-concentration SF6 environments.
User-Friendly Interface: Real-time visual and audio feedback via touchscreen and buzzer.

Technical Specifications

Parameter	Details
Measurement Range	0.01ppm - 10,000ppm(v)
Measurement Accuracy	0.01ppm(v)
Minimum Resolution	0.01ppm(v)
"Poisoning" Recovery Time	≤10s in 99.99% SF6 environment ≤1s in 10% SF6 environment
Response Time	≤0.5s for 10ppm ≤1s for 1ppm
Indication Methods	- Touchscreen: Direct ppm display (0.01ppm resolution) - LCD digital: Concentration-proportional numerical changes - Buzzer: Frequency increases with concentration
Hose Length	Standard 3m (customizable up to 10m)
Power Supply	220V±22V 50Hz±2Hz (compatible with external lithium battery inverter)
Operating Conditions	Temperature: 5℃-50℃ Humidity: ≤95%
Power Consumption	180-220W
Weight & Dimensions	- Detector: 1.2kg - Main unit: 7.1kg - Main unit size: 310×168×200mm - Aluminum case: 3.0kg, 370×320×270mm
