SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001]

  • SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001]
  • SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001]
  • SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KS2001
Minimum Order Quantity 1
Price $4000-$4500
Packaging Details Carton / Wooden Box
Delivery Time 30waok days
Payment Terms T/T
Supply Ability 10 set/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Lithium Battery Or AC220V/50Hz Power Consumption 4W
Accuracy Level 0.2 Level Pressure Display Resolution 0.0001 MPa
Weight 2.5 Kg Pressure Calibration Range 0 ~ 1.0 MPa
Highlight

sf6 gas analyser Gauge

,

220V sf6 gas analyser

,

Automatic sf6 multi analyser
Leave a Message
Product Description

SF6 density relay calibrator fully automatic, Density meter, Density meter check KS2001



SF6 switch is a high-voltage appliance widely used in power system, and the reliable operation of SF6 switch has become one of the most concerned issues in the power supply department. SF6 gas density relay is an important component used to monitor SF6 gas density change in SF6 switch body during operation, its performance directly affects the safety of SF6 switch operation. SF6 gas density relay running in the field because of infrequent action, after a period of time often appear inflexibility, poor contact contact and other phenomena, and some will appear density relay temperature compensation performance deteriorates, when the ambient temperature sudden change often lead to SF6 density relay misoperation. Therefore, DL/T596 "Preventive Test Procedures for Power Equipment" stipulates that each SF6 switch user should regularly verify SF6 gas density relays. From the actual operation situation, the SF6 density relay and pressure gauge in the field operation are also very necessary for regular calibration



Technical Specifications Table
Parameter Specification
Power Supply Lithium battery or AC220V/50Hz
Power Consumption 4W
Accuracy Level 0.1 level
Pressure Display Resolution 0.0001 MPa
Pressure Calibration Range 0 ~ 1.0 MPa
Contact Resistance Range 0 ~ 25 Ω
Resistance Measurement Accuracy ±5%FS
Resistance Display Resolution 1 mΩ
Temperature Measurement Range -50°C ~ 150°C
Temperature Measurement Accuracy ±0.5°C
Temperature Display Resolution 0.1°C
Verification Object Single alarm/block/overpressure, any combination of alarm + block + overpressure
Pressure Type Absolute pressure, relative pressure
Display 800×600 graphic color LCD screen
Operation Mode Resistive touch screen
Printer High-speed thermal micro printer
Printing Format Chinese character report type printing
Storage Capacity Up to 150 test results
Dimensions Main unit: 380mm×320mm×180mm
Accessory box: 465mm×370mm×145mm
SF6 Gas Density Display Pressure at measured environment, equivalent pressure at 20°C
Weight 2.5 kg

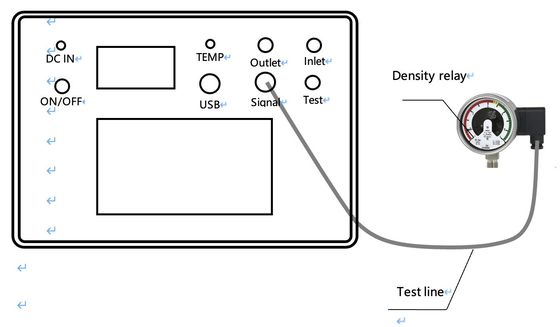

SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 0

SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 1

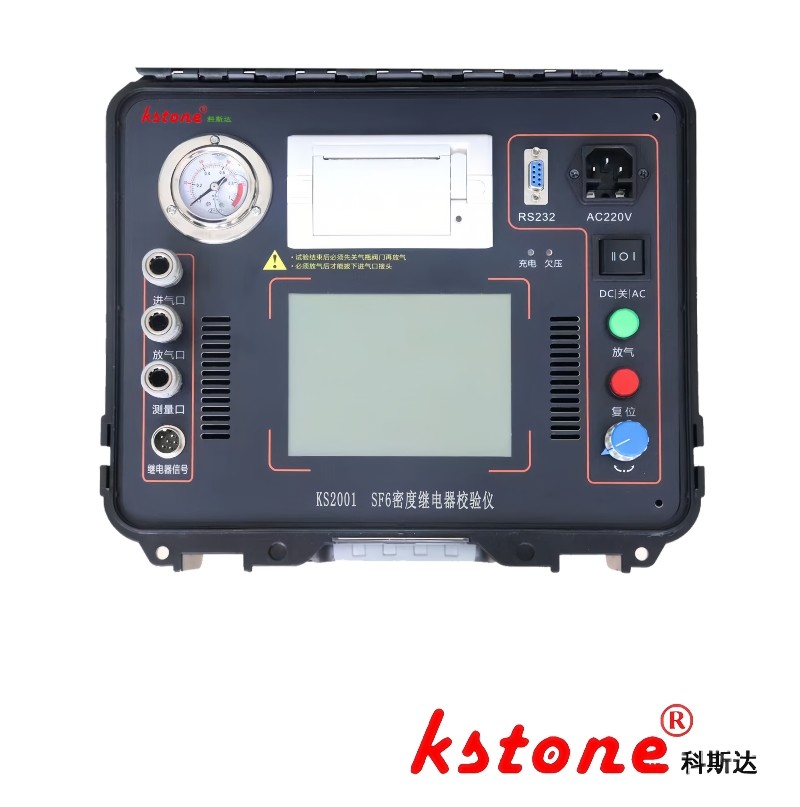

SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 2



SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 3

SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 4



The following is a third-party verification report(ilac-MAR,CNAS)

ILAC-MRA(International Laboratory Accreditation Cooperation Mutual Recognition Arrangement)



SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 5

SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 6

SF6 Density Relay Calibrator Fully Automatic, Density Meter, Density Meter Check [KS2001] 7
