Combustible Gas SF6 Gas Leak Detector NDIR Sensor GB/T11023-2018 Certified [LF-03-FR]

Large Image : Combustible Gas SF6 Gas Leak Detector NDIR Sensor GB/T11023-2018 Certified [LF-03-FR]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-03-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000 per year

Contact Now

Detailed Product Description

Operating Voltage:	Lithium Battery Or AC220V/50Hz	Detection Principle:	NDIR Non-dispersive Infrared (double-beam)
Measuring Range:	0-1000 PPM (customizable Range Available)	Detection Accuracy:	≤±2% F.S. (relative To The Specified Measuring Range)
Minimum Detection Limit:	0.1 Ppm	Highest Sensitivity:	0.1 Ppm
Resolution:	0.1 Ppm	Response Time:	≤3S
Preheating Time:	≤3 Min	Detection Method:	Handheld Suction Type
Operating Humidity:	≤90% RH	Main Screen:	800×480 Graphic Color LCD
Handle:	320×240 Color LCD	Operation Mode:	Resistive Touch Screen
Highlight:	GB/T11023 SF6 Leak Detector , NDIR SF6 Leak Detector , SF6 combustible gas detector

Combustible Gas SF6 Gas Leak Detector NDIR Sensor GB/T11023-2018 Certified LF-03-FR

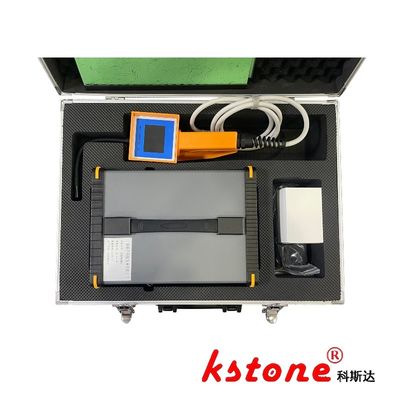

The LF-03-FR SF6 Gas Leak Detector is an advanced handheld device engineered for precise detection of SF6 leaks in high-voltage systems, including GIS, circuit breakers, and switchgear. Leveraging imported NDIR infrared sensor technology and sophisticated calibration algorithms, it identifies leaks as minute as 0.1ppm with an accuracy of ≤±2% F.S., delivering results in under 3 seconds.

Key Advantages:
✅ Cost-Effective Wika/Dilo Alternative – High-performance without premium pricing
✅ Extended Battery Life – 6+ hours of continuous operation via rechargeable lithium power
✅ Smart Interface – Intuitive touchscreen with 800×480 color LCD and real-time audiovisual alerts
✅ Advanced Leak Analysis – Hood algorithm calculates leak rates for proactive maintenance
✅ Certified Reliability – Meets GB/T11023-2018 standards, developed by China’s national metrology institute

Perfect for utility providers, maintenance crews, and industrial manufacturers. Upgrade your leak detection capabilities with speed and precision—order today!

Technical Specifications	Details
Power Source	Lithium battery or AC220V/50Hz
Detection Principle	NDIR non-dispersive infrared (dual-beam)
Range	0-1000 PPM (customizable)
Accuracy	≤±2% F.S. (full-scale)
Sensitivity	0.1 ppm
Response Time	≤3 seconds
Preheat Time	≤3 minutes
Operation	Handheld suction design
Humidity Resistance	≤90% RH
Display	Dual-screen setup: 800×480 main LCD, 320×240 handle LCD
Interface	Resistive touchscreen control
