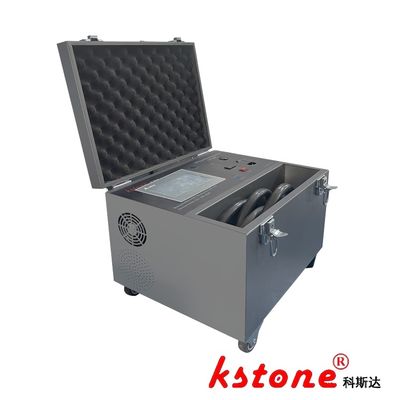

Portable Quantitative SF6 Leak Detector Gas Sensor 0.01ppm Sensitivity With Telescopic Handle [LF-303]

Large Image : Portable Quantitative SF6 Leak Detector Gas Sensor 0.01ppm Sensitivity With Telescopic Handle [LF-303]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-302

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$30000-$31000
Packaging Details:	Carton / Wooden Box
Delivery Time:	30 work days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Vacuum Pump Type:	Oil-Free Diaphragm Pump (Maintenance-Free)	Sensitivity:	0.01ppm
Measurement Range:	0.01–10,000ppm	Response Time:	≤0.5s (≥1ppm SF6 Environment)
Recovery Time:	≤10s (99.99% SF6)	Power Source:	AC 220V/50Hz Or Lithium Battery
Highlight:	Quantitative SF6 Leak Detector , 0.01ppm SF6 Leak Detector , Quantitative sf6 gas sensor

Portable Quantitative SF6 Leak Detector Gas Sensor 0.01ppm Sensitivity With Telescopic Handle LF-303

Product Overview

The LF-303 distinguishes itself with an oil-free vacuum pump. Engineered for precision SF6 leak detection, its telescopic handle design ensures mobility, while the low-voltage ionization technology delivers 0.01ppm sensitivity. The system includes audible-visual alarms and a fault self-check function for user-friendly operation.

Technical Parameters

Parameter	Details
Vacuum Pump Type	Oil-Free Diaphragm Pump (Maintenance-Free)
Sensitivity	0.01ppm (SF6, highest precision)
Measurement Range	0.01–10,000ppm (optimal: 0.01–100ppm)
Response Time	≤0.5s (≥1ppm SF6 environment)
Recovery Time	≤10s (99.99% SF6); ≤1s (10% SF6)
Power Source	AC 220V/50Hz or lithium battery (3-hour continuous operation)
Battery Life	50% longer than LF-301 (4-hour continuous use)
Protection Features	PM1.0 filter screen, fault self-check system
Sensor Lifespan	5–10 years (no radiation source)
Dimensions (Retracted)	400×340×320mm (L×W×H)
Weight	12.5±0.5kg
Warranty	1-year full coverage (including sensor)
