Portable halogen leak detector, fluorine-containing gas leak detector, inexpensive leak detector

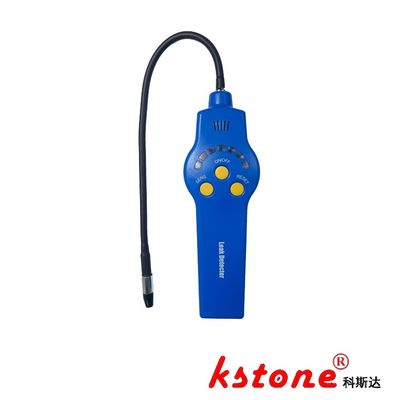

Large Image : Portable halogen leak detector, fluorine-containing gas leak detector, inexpensive leak detector

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	Smart-01b

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	$600-$650
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Working Humidity:	≤95% RH (non-condensing)	Gas Detection:	Fluorine-containing Gas
Range:	0-100°C LEL	Operation Mode:	Button
Alarming:	Sound And Light Alarm	Operating Temperature:	-20℃-50℃
Test Gas:	Halogen	Protection Level:	IP66
Siza:	175×55×34mm (L×W×H)	Gross Weight:	0.5kg
Highlight:	IP66 refrigerant gas detector , Hydrogen refrigerant gas detector , IP66 portable gas leak detector

Qualitative Leak Detector - Smart-01b | Corona Principle, 3g/yr Sensitivity

Product Overview

The Smart-01b is a SF6 qualitative leak detector leveraging the corona discharge principle, designed for cost-effective detection of fluorinated refrigerants and SF6. With a rapid 5-second warm-up time, it suits field operations requiring quick deployment. Powered by 2 x AA batteries, the detector features a 1000mm hose for extended reach and measures 175×55×34mm for portability.

Technical Specifications

Parameter	Details
Detection Principle	Corona Discharge
Maximum Sensitivity	3g/year (SF6 leakage rate)
Warm-up Time	≤5 seconds
Compatible Gases	All fluorinated refrigerants, SF6
Operating Temperature	0–52°C
Humidity Resistance	≤95% RH (non-condensing)
Hose Length	1000mm (standard)
Power Source	2 x AA batteries
Sensor Lifespan	~20 hours (continuous use)
Dimensions	175×55×34mm (L×W×H)

Key Features

Cost-Effective Design:Ideal for budget-sensitive applications without compromising functionality.
Rapid Activation:5-second warm-up eliminates downtime for immediate leak detection.
Wide Gas Compatibility:Suitable for all fluorinated refrigerants and SF6, enhancing versatility.
Portable Form Factor:Compact dimensions (175×55×34mm) and lightweight design for on-site mobility.
