High Precision SF6 Dew Point Meter Temperature Instrument Analysis For N2 H2

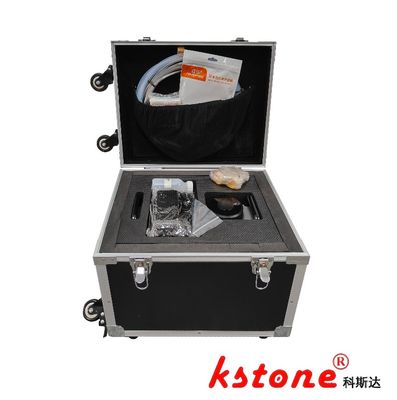

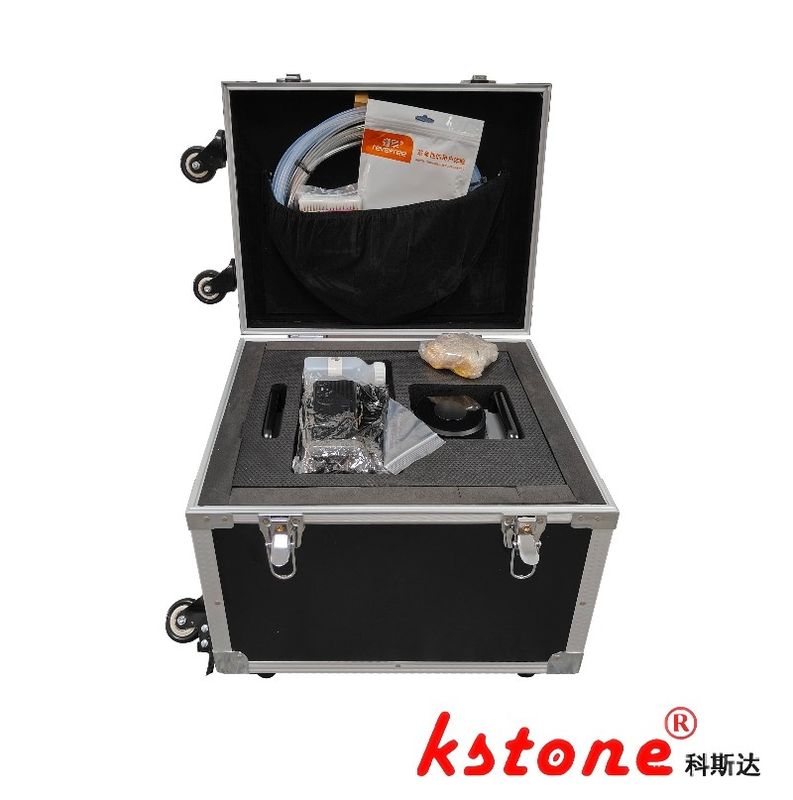

Large Image : High Precision SF6 Dew Point Meter Temperature Instrument Analysis For N2 H2

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KST-V

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Sampling Rate:	2 Times/s	Data Storage:	1000 Groups
Measurement Range:	-50 To 50°C	Pressure Range:	86-106Kpa
Display:	LCD	Data Hold:	Yes
Accuracy:	±0.5°C	Resolution:	0.1°C
Auto Power Off:	Yes	Response Time:	2 Seconds
Highlight:	H2 sf6 dew point meter , sf6 dew point meter Instrument , SF6 dew point temperature instrument

Cold Mirror Dew Point Meter KST-V | High-Precision Analysis for N₂, H₂, SF₆

Working Principle

The cold mirror technology measures dew point by condensing water vapor onto a reflective surface when gas temperature drops below the dew point—the saturation temperature of water vapor in the gas. As dew or frost forms, diffuse reflection of incident light activates an electrical signal in the photosensitive device. The detection circuit transmits signal variations and temperature data to the control system, which uses intelligent algorithms to calculate and display dew point temperature (designated as frost point when below 0°C).

Technical Specifications

Parameter	Details
Measurement Method	Fully automatic continuous measurement
Measured Gases	SF₆, N₂, H₂ (specialized for dew point analysis)
Flow Rate	400–800±50 ml/min (digital flow meter display)
Temperature Resolution	0.1°C
Measurement Range	20°C to -62°C
Accuracy	≤±0.3°C
Display Units	°C, ppm
Gas Pressure	≤1 MPa
Operating Temperature	-20°C to 50°C
Humidity Resistance	≤85% RH (non-condensing environment)
Power Supply	AC220V±10% (50Hz) / 24V lithium battery (≥8-hour continuous runtime)
Power Consumption	≤70W
Cooling Source	SL micro cooler
Sampling Interface	Self-sealing quick connector
Dimensions	340×230×200 mm
Weight	≤9.5 kg

Tag:

Contact Person: Ms. Jin

Tel: 15000093078

Other Products

Fully automatic Portable Dewpoint Meter Monitor For N2 H2 & SF6 Testing

Sampling Rate: 2 times/s

Data Storage: 1000 Groups

Measurement Range: -50 to 50°C

Pressure Range: 86-106Kpa

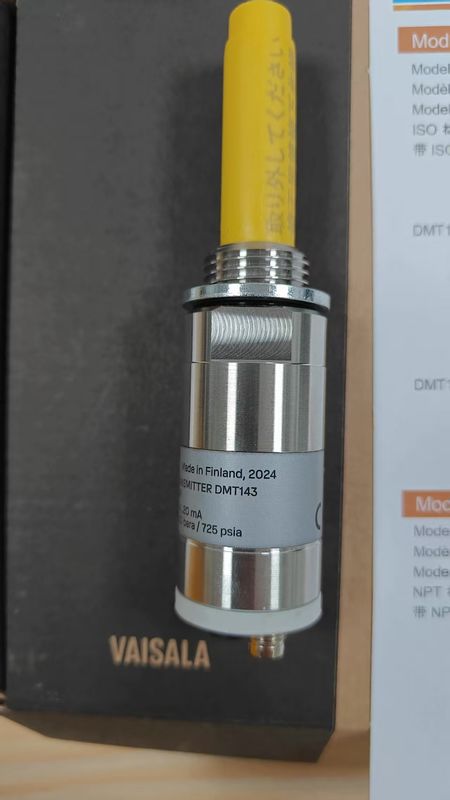

Vaisala 143 Dewpoint Analyzer Micro Moisture Meter Measurement Instrument PP20 Conversion
