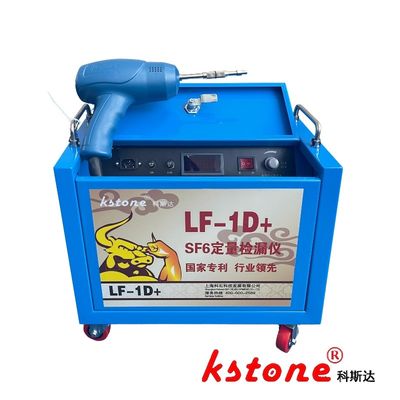

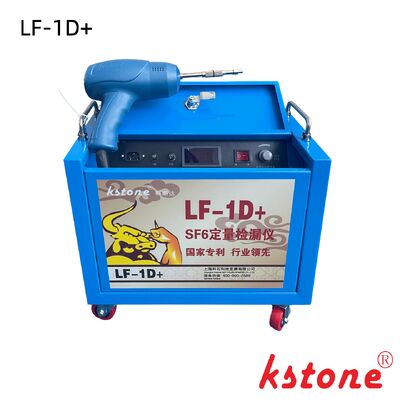

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]

Large Image : The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-1D+

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$3000-$3200
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Sensitivity:	0.01 Ppm	Measurement Range:	0.01-1000 Ppm
Warranty:	1years	Display:	Digital LCD
Response Time:	≤1 Second In 100ppm	Physical Dimensions:	430×275×429mm
Highlight:	250W co2 leak detector , SF6 co2 leak detector , industrial sf6 leak pointer

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China LF-1D+

Key Features

Ultra-Sensitive Detection:0.01ppm minimum detection limit (range: 0.01–1000ppm) via low-voltage ionization technology, outperforming infrared dual-wave detectors in sensitivity.
Rapid Response:≤1 second reaction time to 100ppm SF6, enabling fast leakage point localization in high-voltage switchgear and power equipment.
Intuitive Operation:LCD digital display with real-time concentration readings and variable buzzer alerts for easy leak assessment.

Industry Credibility

As the drafter of GB/T11023-2018 national standard, this detector ensures industrial-grade reliability for cost-effective, low-maintenance SF6 leak testing in electrical equipment. Ideal for utilities, manufacturing, and energy sectors.

Optimization Notes

The best tool for finding leaks.
Data-Driven Emphasis:Bold key metrics (0.01ppm, ≤1s) to highlight technical superiority.
SEO-Friendly Keywords:Incorporates "SF6 leak detector", "high-voltage switchgear", and "national standard" naturally.
Application Focus:Links technical features directly to utility and industrial use cases.

Technical Specifications Table

Parameter	Details
Measurement Accuracy	≥10, detects SF6 concentration as low as 0.01ppm
Measurement Range	0.01ppm – 1000ppm
Response Time	≤1 second for 100ppm SF6 gas
Indication Method	LCD digital display with real-time concentration readings; buzzer frequency varies with leakage severity
Vacuum Hose	4m (extendable to 6m)
Power Cable	2m (extendable to 6m), 220V±22V, 50Hz±2Hz
Dimensions	430×275×429mm (L×W×H)
Net Weight	~19.8kg
Packaging	Foam carton
Continuous Working Time	≤8 hours
Operating Temperature	5℃ – 50℃
Humidity Resistance	Operates in environments with humidity >80%
Power Consumption	250W

Participate in the development of GB/T11023 standards

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+] 0

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+] 1

Invention patent for this type of leak detector

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+] 2
