Fully automatic Portable Dewpoint Meter Monitor For N2 H2 & SF6 Testing

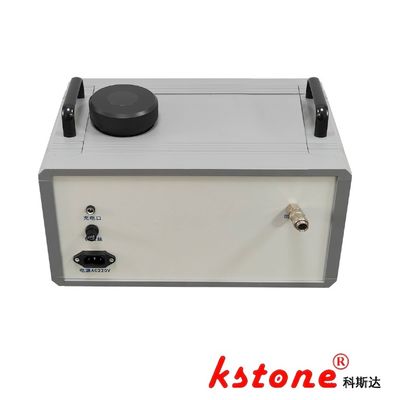

Large Image : Fully automatic Portable Dewpoint Meter Monitor For N2 H2 & SF6 Testing

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KST-V

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Sampling Rate:	2 Times/s	Data Storage:	1000 Groups
Measurement Range:	-50 To 50°C	Pressure Range:	86-106Kpa
Display:	LCD	Data Hold:	Yes
Accuracy:	±0.5°C	Resolution:	0.1°C
Highlight:	automatic dewpoint meter , N₂ dewpoint meter , SF6 portable dew point monitor

Cold Mirror Dew Point Meter KST-V | High-Precision for N₂, H₂ & SF₆ Testing

Working Principle

The cold mirror technique measures dew point by condensing water vapor onto a mirror surface when gas temperature drops below the dew point—the saturation temperature of water vapor in the gas. As dew/frost forms, diffuse reflection of incident light triggers an electrical signal in the photosensitive device. The detection circuit sends signal changes and temperature data to the control system, which uses intelligent algorithms to calculate and display dew point temperature (frost point when below 0°C).

Technical Specifications

Parameter	Details
Measurement Method	Fully automatic continuous measurement
Measured Gases	SF₆, N₂, H₂ (dew point testing)
Flow Rate	400–800±50 ml/min (digital flow meter)
Temperature Resolution	0.1°C
Measurement Range	20°C to -62°C
Accuracy	≤±0.3°C
Display Units	°C, ppm
Gas Pressure	≤1 MPa
Operating Temperature	-20°C to 50°C
Humidity Resistance	≤85% RH (non-condensing)
Power Supply	AC220V±10% (50Hz) / 24V lithium battery (≥8h runtime)
Power Consumption	≤70W
Cooling Source	SL micro cooler
Sampling Interface	Self-sealing quick connector
Dimensions	340×230×200 mm
Weight	≤9.5 kg
