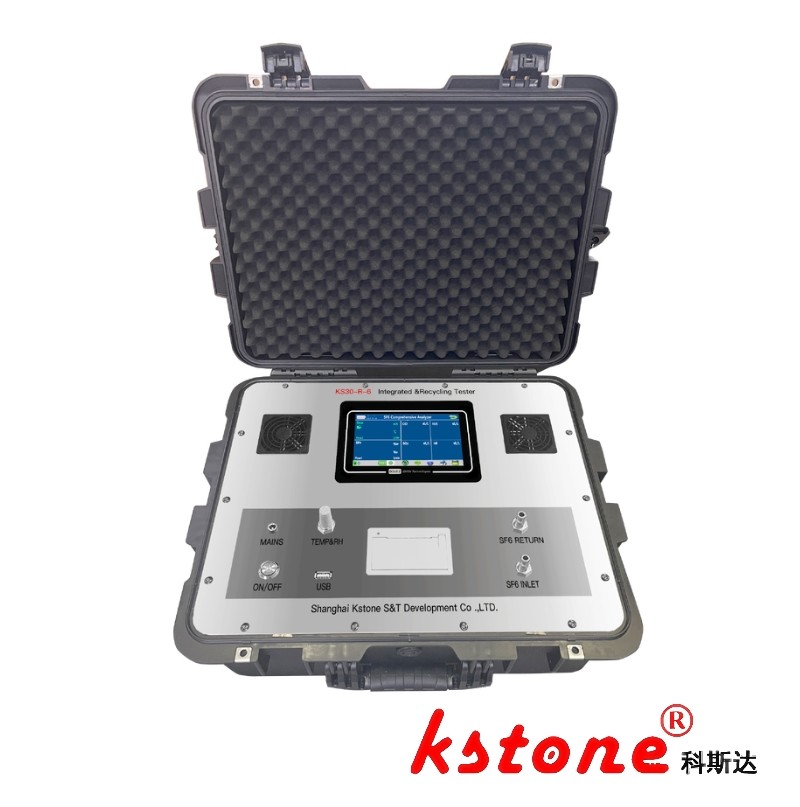

Sf6 Gas Analyzer Battery Operated Touchscreen, Emission-Free Comprehensive Tester [KS30-R-6]

  • Sf6 Gas Analyzer Battery Operated Touchscreen, Emission-Free Comprehensive Tester [KS30-R-6]
  • Sf6 Gas Analyzer Battery Operated Touchscreen, Emission-Free Comprehensive Tester [KS30-R-6]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS30-R-6
Document gas tester.pdf
Minimum Order Quantity 1
Price $21000-$25000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 100
Product Details
SF6 Gas [SO₂] 0~100 µl/l, [H₂S] 0~100 µl/l, [CO] 0~500 µl/l, [HF] 0~10 µl/l SF6 Accuracy ±10%
SF6 Resolution 0.1 µl/l SF6 Purity 0～100%
Purity Accuracy ≤±0.5% Purity Repeatability ≤±0.2%
Purity Resolution 0.01% SF6 Humidity -60℃～+20℃
SF6 Humidity Measurement Accuracy ±2℃ SF6 Humidity Response Time (+20℃) -60℃ →20℃ 30S[60s], 20℃→-60℃ 60S[600S]
Highlight

28V dilo sf6 gas analyzer

,

Touchscreen dilo sf6 gas analyzer

,

28V dilo sf6 analyzer
Leave a Message
Product Description
Environmentally Friendly Emission-Free Comprehensive Tester KS30-R-6 with Recycling Function
SF6 Gas Decomposition Products Detection Module
Item Details
Measurement Range [SO₂] 0–100 µl/l, [H₂S] 0–100 µl/l, [CO] 0–500 µl/l, [HF] 0–10 µl/l
Accuracy ±10%
Resolution 0.1 µl/l
Response Time ≤60s
SF6 Purity Detection Module
Item Details
Measurement Range 0–100%
Accuracy ≤±0.5%
Repeatability ≤±0.2%
Resolution 0.01%
Response Time ≤60s
SF6 Humidity Detection Module
Item Details
Dew Point Range -60°C～+20°C
Measurement Accuracy ±2°C
Response Time (+20°C) -60°C→20°C: 30s [60s]; 20°C→-60°C: 60s [600s]
Resolution Dew Point: 0.1°C
Repeatability ±1°C
Whole Machine Parameters
Parameter Details
AC Power Supply AC100-240V/50-60HZ
Charger Specification DC28V/5A
Battery 18650 Lithium Battery, 21.6V/20Ah
Usage Duration >10 hours
Display Screen 7-inch Color Touchscreen
Inlet Pressure 0.1-0.7 MPa
Recharge Pressure Maximum: 0.7 MPa
Dimensions 562×440×240mm (L×W×H)
Weight Approximately 27 kg
System Features
  • Eco-Friendly Design:Emission-free operation with built-in recycling function.
  • Modular Customization:Configurable testing modules for comprehensive SF₆ analysis (decomposition products, purity, humidity).
  • Portable Performance:10+ hour battery life and 7-inch touchscreen for on-site diagnostics.
Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
