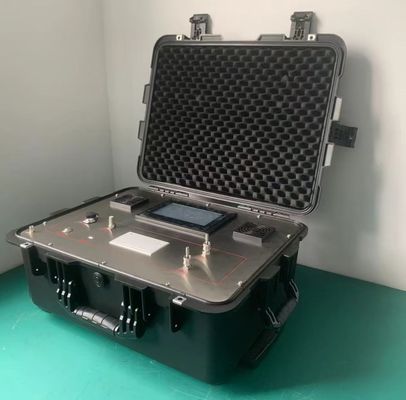

Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]

  • Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
  • Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
  • Emission Free Electronic SF6 Gas Tester Purity Analyzer Eco Friendly [KS30-R-6]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KS30-R-6
Minimum Order Quantity 5
Price $25000-$30000
Packaging Details Wooden Box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Electronic SF6 Gas Tester

,

SF6 Gas Tester Analyzer

,

Emission Free sf6 gas purity analyzer
Leave a Message
Product Description
Environmentally Friendly Emission-Free Comprehensive Tester KS30-R-6 with Recycling Function

System Features

  • Eco-Friendly Design:Emission-free operation with integrated recycling function, compliant with environmental standards.
  • Modular Testing System:Configurable modules for comprehensive analysis of SF₆ decomposition products (SO₂/H₂S/CO/HF), purity, and humidity.

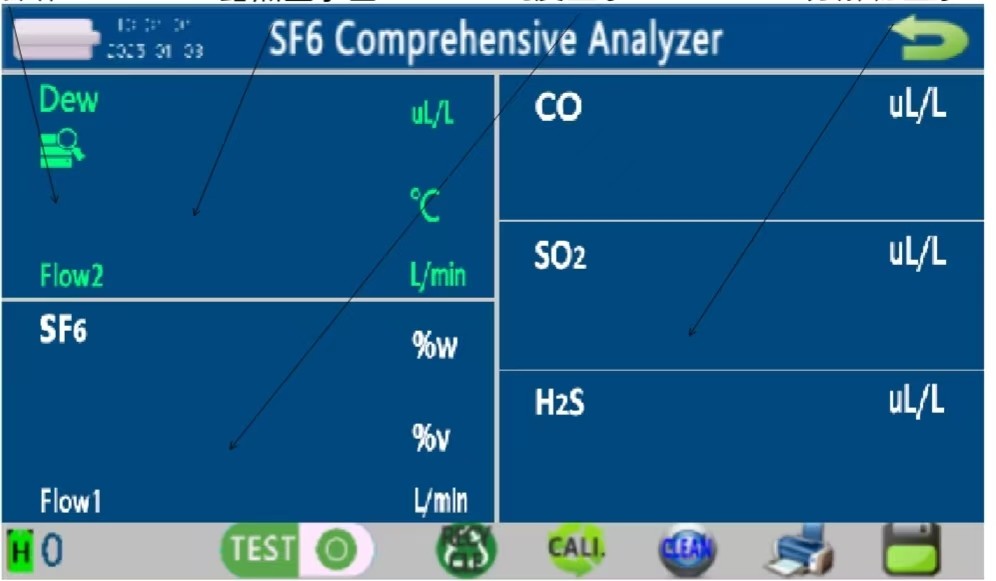

  • Portable Performance:10+ hour battery life and 7-inch touchscreen enable on-site diagnostics with high mobility.

SF6 Gas Decomposition Products Detection Module

Item Details
Measurement Range [SO₂] 0–100 µL/L, [H₂S] 0–100 µL/L, [CO] 0–500 µL/L, [HF] 0–10 µL/L
Accuracy ±10%
Resolution 0.1 µL/L
Response Time ≤60s

SF6 Purity Detection Module

Item Details
Measurement Range 0–100%
Accuracy ≤±0.5%
Repeatability ≤±0.2%
Resolution 0.01%
Response Time ≤60s

SF6 Humidity Detection Module

Item Details
Dew Point Range -60°C～+20°C
Measurement Accuracy ±2°C
Response Time (+20°C) -60°C→20°C: 30s [60s]; 20°C→-60°C: 60s [600s]
Resolution Dew Point: 0.1°C
Repeatability ±1°C

Whole Machine Parameters

Parameter Details
AC Power Supply AC100-240V/50-60HZ
Charger Specification DC28V/5A
Battery 18650 Lithium Battery, 21.6V/20Ah
Usage Duration >10 hours
Display Screen 7-inch Color Touchscreen
Inlet Pressure 0.1-0.7 MPa
Recharge Pressure Maximum: 0.7 MPa
Dimensions 562×440×240mm (L×W×H)
Weight Approximately 27 kg
