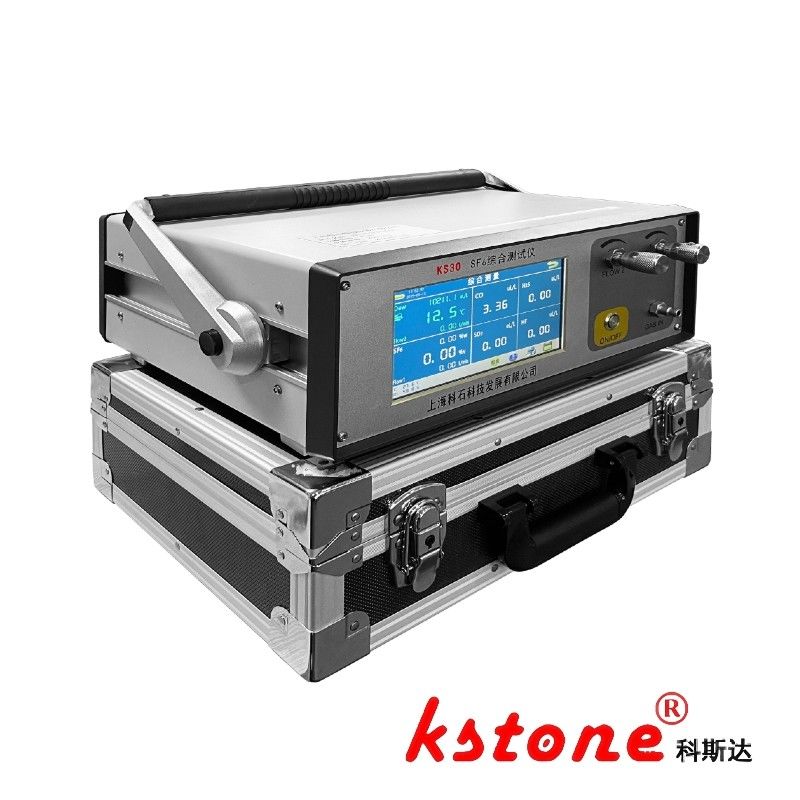

Industrial Comprehensive Sf6 Gas Purity Test Analyzer Dew Point [KS30]

Place of Origin	Shanghai
Brand Name	KSTONE
Certification	ISO9000
Model Number	KS30
Minimum Order Quantity	1
Price	$10000-$15000
Packaging Details	Wooden box
Delivery Time	7-10 work days
Payment Terms	T/T
Supply Ability	1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

H2S	Accuracy: ≤±0.5%	SO2	Accuracy: ≤±0.5%
CO	Accuracy: ≤±0.5%	HF	Accuracy: ≤±0.5%
Sensitivity	0.1 Ppm	Dimensions	132×283×308
Highlight	Industrial sf6 gas purity test , sf6 gas purity test Analyzer , Dew Point sf6 gas analyzer

Leave a Message

Product Description

Comprehensive SF₆ Gas Tester KS30 Series | Dew Point, Purity & Decomposition Products Analysis

Technical Leadership

As a key contributor to China's industry standards (DL/T1366-2018& DL/T1353-2024), our KS30 series combines modular design with precision measurement for power equipment SF₆ gas analysis.

Core Measurement Modules

SF6 Humidity Detection

Parameter	Details
Measurement Range	Dew point: -80°C to +20°C (supports ppmv conversion)
Accuracy	±1°C (frost point output below 0°C)
Response Time (T63/T90)	+20→-20°C: 5s/45s; -20→-60°C: 10s/240s
Resolution	0.1°C / 0.1ppm
Flow Control	0.25–0.35L/min (electronic mass flowmeter, flow-rate independent)
Pressure Measurement	0–1.0MPa
Probe Protection	Stainless steel sintered filter

SF6 Purity Analysis

Parameter	Details
Measurement Range	0–100% SF₆
Accuracy & Repeatability	±0.1% (flow-rate independent)
Response Time	≤30s

Decomposition Products Detection

Component	Measurement Range	Accuracy	Sensitivity
H₂S	0–200ppm	≤±0.5%	0.1ppm
SO₂	0–100ppm	≤±0.5%	0.1ppm
CO	0–1000ppm	≤±0.5%	0.1ppm
HF	0–10ppm	≤±0.5%	0.1ppm
Repeatability	multicolumn{3}{	c	}{≤±1%}

System Specifications

Parameter	Details
Power Supply	220VAC±10% (50Hz); AC/DC dual-mode with overcharge protection (≥5h runtime)
Storage Temperature	-40°C to +70°C
Data Interface	USB1.1 (200-record storage capacity)
Operating Environment	Temperature: -30°C to +60°C; Pressure: 0–20bar
Software	Standard management suite (report printing, humidity conversion tools)
Dimensions	132×283×308 mm (L×W×H)

Model Configuration Guide

Model	Purity	Dew Point	SO₂	H₂S	CO	HF	Recycling
KS30	√	√	√	√	√	-	-
KS30-6	√	√	√	√	√	√	-
KS30-3	√	√	√	-	-	-	-
KS30-T	-	√	√	√	√	-	-
KS30-TC	√	-	√	√	√	-	-
KS30-R-*	-	-	-	-	-	-	√

Customization Capability

All models support modular customization. Contact us for tailored configurations to meet specific testing requirements.
