Dry Air Equipment, 30ppm Moisture, Adsorption drying，Dry air source

Large Image : Dry Air Equipment, 30ppm Moisture, Adsorption drying，Dry air source

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS3000-80-cz4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2500-$2800
Packaging Details:	Carton / Wooden Box
Delivery Time:	45 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Power Supply:	220V/50Hz	Auto Shut-Off:	Yes
Power Consumption:	6kw	Operating Temperature:	5-35°C
Air Flow Rate:	80L/min	Humidity Control:	Digital Control
Additional Features:	Automatic Shut-off, Digital Display, Remote Control	Weight:	Varies Depending On Model
Highlight:	750W Dry Air Equipment , Refrigerant Dry Air Equipment , 750W refrigerant dryers

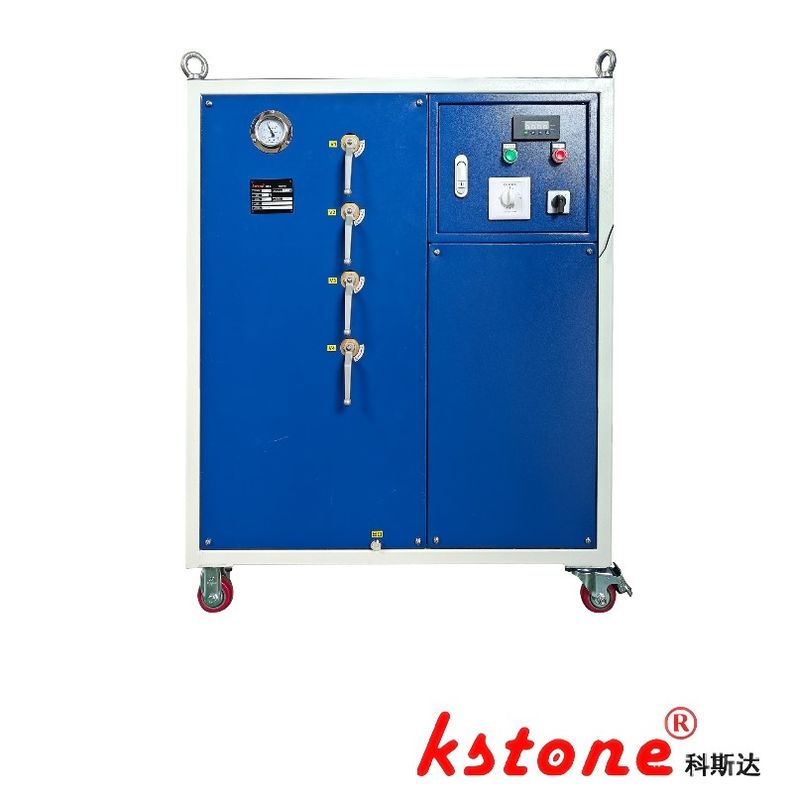

KS3000-80-cz4 Dry Air System - 30ppm Moisture, 80L/min Flow, 0.1-6.0MPa Pressure, Vacuum Pump

The KS3000-80-cz4 is designed to extract moisture and particulates from natural air, delivering dry air with ≤30ppm(v) moisture content. Its flow rate is fully customizable to suit operational requirements, making it an ideal air source for air-insulated cabinets. The system also enables dry air flushing of gas-insulated cabinets as a cost-effective alternative to high-purity nitrogen. Equipped with a vacuum pumping function, it supports optional capacity expansion for enhanced versatility.

This integrated solution comprises a silent compressor, advanced moisture filtration unit, drying activation module, adjustable pressure system, and exhaust piping. It includes a vacuum pump, anti-reflux mechanism, and integrated pipelines. An optional online micro-water sensor (model: KS3000-80-CZ4-WS) can be installed to monitor activation needs, while both automatic and manual operation modes cater to diverse user preferences.

Technical Specifications Table (Excluding online moisture testing, manual control)

Parameter	Specification
Compressor Flow Rate	80L/min (optional configuration)
Pressure Adjustment Range	0.1-6.0 MPa (customizable low-pressure setpoints with fluctuation control)
Drying Activation Output	15m³ of qualified dry air per 30-minute regeneration
Moisture Filtration	Outlet moisture: 30-50ppmv @ 70% inlet humidity
Vacuum Pump Capacity	15m³/h
Dimensions (L×W×H)	1200×800×1620 mm
Weight	≤150 kg
Power Supply	AC220V
Power Consumption	≤6 kW
Moisture Absorption	≥1.0 kg per activation (@ <50-60ppm)

Operational Features

Pressure Control Example: Set low pressure at 0.12 MPa with 0.02 MPa fluctuation; compressor stops at 0.14 MPa and restarts at 0.12 MPa.
Regeneration Protocol: When outlet micro-water exceeds standards, disconnect the pipeline, activate the drying system for 30 minutes to restore adsorbent efficiency.
