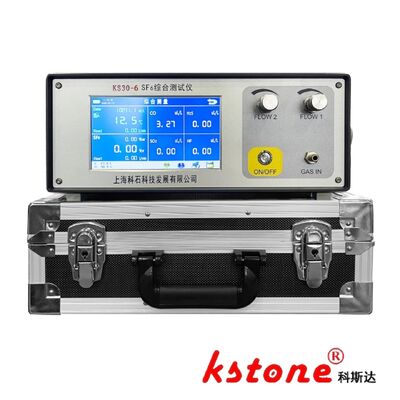

Custom KS30-6 SF6 Comprehensive Tester | Dew Point Purity Decomposition Analyzer

  • Custom KS30-6 SF6 Comprehensive Tester | Dew Point Purity Decomposition Analyzer
  • Custom KS30-6 SF6 Comprehensive Tester | Dew Point Purity Decomposition Analyzer
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KS30+
Document gas tester.pdf
Packaging Details Carton / Wooden box
Delivery Time 10 work days
Payment Terms T/T
Supply Ability 100 set/y

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

SF6 gas dew point tester

,

SF6 gas purity analyzer

,

SF6 gas decomposition tester
Leave a Message
Product Description

Custom KS30-6 SF6 Comprehensive Tester | Dew Point Purity Decomposition Analyzer

Most SF6 comprehensive testers, except for a few commonly used models, are basically modular and customizable.

We will provide customized services according to the needs of our customers.

Dew point testing is a part of the comprehensive testing instrument, and our company's model is KST-VII, using Vaisala 143 sensors.

SF6 Humidity
Measurement Range Dew point: -80~+20°C (Supports ppmv, etc.)
Dew Point Accuracy

±1°C (When the dew point temperature is lower than 0°C, the

sensor output is the frost point)
Response Time 63%[90%]; +20→-20°C Td: 5s[45s]; -20→-60°C Td: 10s[240s]
Resolution Dew point: 0.1°C or 0.1ppm
Gas Flow Rate

0.25〜0.35L/min; Equipped with an electronic mass flowmeter; No

impact from the sample gas flow rate
Pressure Measurement 0〜1.0MPa
Probe Protection Stainless steel sintered filter screen
SF6 Purity
H2S
Measurement range 0〜200ppm
Accuracy ≤±0.5%
SO2
Measurement range 0〜100ppm
Accuracy ≤±0.5%
CO
Measurement range 0〜1000ppm
Accuracy ≤±0.5%
HF
Measurement range 0〜10ppm
Accuracy ≤±0.5%
Sensitivity 0.1ppm
Repeatability ≤±1%
General Part
Operating Voltage

220VAC±10%, 50Hz.

Both AC and DC available . Over charge

protection. Continuous working time is not less

than 5 hours.
Storage Temperature Range -40〜+70℃
Output Interface Compliant with USB 1.1 specification
Data Storage Can store 200 records
Operating Environment

Operating Environment

Temperature: -30〜+60℃

Pressure: 0〜20bar

Sample Gas Flow Rate: No impact
Other Configurations

Standard version

management software, including report printing

and commonly used humidity conversion toolkit
Dimensions 132×283×308mm
Why Choose Kstone?
  • Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  • One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  • Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  • Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  • Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
