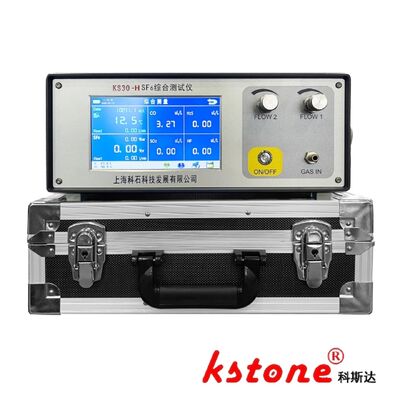

KS30-H SF6 Trace Gas Analyzer | O2 N2 Dew Point Tester for Dry Air & Nitrogen Environmental Cabinets

  • KS30-H SF6 Trace Gas Analyzer | O2 N2 Dew Point Tester for Dry Air & Nitrogen Environmental Cabinets
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KS30-H
Document gas tester.pdf
Packaging Details Carton / Wooden box
Delivery Time 10 work days
Payment Terms T/T
Supply Ability 100 set/y

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Gas SF6, N2, O2, DEW POINT (customized) Sample Gas Flow Rate 0.2 - 0.5L/min
Sample Gas Pressure ≤10bar Environmental Conditions Temperature: -20℃ ~ +50℃; Humidity: 5 ~ 95% RH
Working Power Supply Lithium Battery Power Supply, 100 ~ 240AC, 50/60HZ AC - DC Dual - Use Dimensions 414x333x177mm
Weight 3.5Kg
Highlight

SF6 gas analyzer with dew point tester

,

SF6 trace gas analyzer for environmental cabinets

,

O2 N2 dew point tester for dry air
Leave a Message
Product Description
KS30-H SF6 Trace Gas Analyzer | O2 N2 Dew Point Tester for Dry Air & Nitrogen Environmental Cabinets

This equipment is used to test the trace SF6 gas content in dry air environmental cabinets and nitrogen environmental cabinets, detect O2 and N2, and determine the type of environmental cabinets. At the same time, dew point and micro - water tests can be selected.

Technical Specification
Parameter Specification
Sulfur Hexafluoride (SF6) (Infrared Spectrum) Measurement range: 0 ~ 100PPMMeasurement accuracy: ±2% F.S Resolution: 0.1PPM Response time: ≤30S
Nitrogen (N2) Measurement range: 0 ~ 100%Measurement accuracy: ± 0.5%Resolution: 0.01%Response time: ≤30S
Oxygen (O2) Measurement range: 0 ~ 30%Measurement accuracy: ± 0.5%Resolution: 0.01%Response time: ≤30S
Dew Point (Dew) Measurement range: -80 ~ +20℃Measurement accuracy: ±0.5℃Resolution: 0.1℃Response time: 5s [10s] when in the -60℃→-20℃ interval; 45s [10min] when in the -20℃ →-60℃ interval
Sample Gas Flow Rate 0.2 - 0.5L/min
Sample Gas Pressure ≤10bar
Environmental Conditions Temperature: -20℃ ~ +50℃; Humidity: 5 ~ 95% RH
Working Power Supply Lithium battery power supply, 100 ~ 240AC, 50/60HZ AC - DC dual - use
Dimensions 414x333x177mm
Weight 3.5Kg
Why Choose Kstone?
  • Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  • One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  • Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  • Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  • Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
