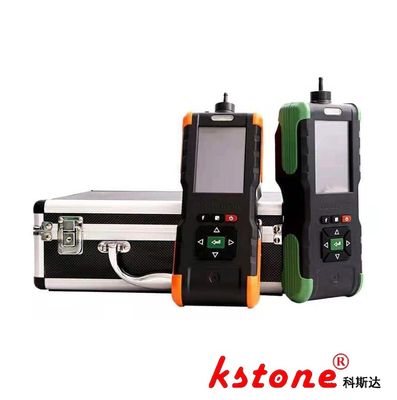

Combination Multi-Component Leak Detector, Sf6 Leak, So2 Leak, Ch4 Leak, Co2 Leak [LF-01-FR]

  • Combination Multi-Component Leak Detector, Sf6 Leak, So2 Leak, Ch4 Leak, Co2 Leak [LF-01-FR]
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number LF-01-FR
Document sf6 leak detector.pdf
Minimum Order Quantity 5
Price $1000-$3000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms ,T/T
Supply Ability 100 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Humidity 0–95%RH Temperature -20℃~50℃
Power 6000 MAh Rechargeable Lithium Battery Dimensions 231×86×52mm
Weight 500g Pump Flow Rate 0–500 Cc/Min (adjustable)
Highlight

4 Gas SF6 Leak Detector

,

ODM SF6 Leak Detector

,

ODM dilo sf6 leak pointer
Leave a Message
Product Description
Combination Multi-component Leak Detector, Sf6 Leak, So2 Leak, Ch4 Leak, Co2 Leak LF-01-FR
I. Product Features

  1. Fast and Precise Infrared Detection

    Equipped with an NDIR (Non-Dispersive Infrared) sensor, the instrument efficiently filters impurities like oil, water, and dust, ensuring high-precision measurements for infrared-sensitive gases.

  2. User-Friendly Design

    • 3.5-inch HD color screen for intuitive data visualization.
    • Pure hardware one-key power on/off to reduce power consumption.
    • Optional long-handle suction probe tube for hard-to-reach areas.
    • Includes a leather shoulder bag for portable use.

  3. Comprehensive Functions

    • Simultaneous display of real-time data and concentration curves.
    • Adjustable high/low speed air pump for flexible sampling.
    • Supports simultaneous detection of up to 4 infrared-sensitive gases (optional).
    • Optional external Bluetooth printer for mobile data printing.
    • Multiple gas unit conversion (automated system calculation), Chinese/English display switching.
    • Large-capacity data storage (customizable) with Micro-USB and Android cable connectivity for data transfer.
    • Suitable for high-temperature, high-humidity, and high-dust environments with a sampling probe gun.
II. Technical Parameters

General Specifications:

  • Dimensions: (H x W x D) 231×86×52mm
  • Weight: ~500g
  • Pump Flow Rate: 0–500 cc/Min (adjustable)
  • Display: 3.5-inch color screen (480×320 resolution)
  • Display Content: Gas formula, measured value, unit, concentration curve, battery status, time, alarm/fault info
  • Alarms: Buzzer, red indicator light, LCD prompt, low battery alarm
  • Data Storage: 8G SD card (standard), optional 16G/32G; customizable recording interval
  • Communication: USB connection for TXT data download
  • Printing: Optional external Bluetooth printer
  • Power: 6000 mAh rechargeable lithium battery (Micro-USB 5V/2A charger)
  • Environment:
    • Humidity: 0–95%RH (non-condensing; optional filter for high humidity)
    • Temperature: -20℃~50℃ (up to 1200℃ with flue gas probe gun)
  • Certifications: Ex ia IIC T4 (explosion-proof), IP65 (protection level)
III. Application Scenarios

Petroleum, petrochemical, metallurgy, chemical industry, fire protection, gas industry, environmental protection, power, telecommunications, papermaking, printing and dyeing, sewage treatment, food brewing, scientific research, education, national defense.

IV. Instrument Configuration
  • Standard: Detector main unit, operation manual, detection report, certificate of conformity.
  • Optional Accessories: Standard gas, sampling probe tube, external Bluetooth printer, etc.
Combination Multi-Component Leak Detector, Sf6 Leak, So2 Leak, Ch4 Leak, Co2 Leak [LF-01-FR] 0 Combination Multi-Component Leak Detector, Sf6 Leak, So2 Leak, Ch4 Leak, Co2 Leak [LF-01-FR] 1
V. Sensor Specifications (Infrared Principle)
Measured GasMeasuring Range (Optional)Sensor Type
Sulfur Hexafluoride (SF6)0–1000/2000ppmNDIR
Carbon Dioxide (CO2)0–2000/5000/1%/5%/20%/50%/100%VOLNDIR
Methane (CH4)0–5%/10%/20%/50%/100%VOLNDIR
Carbon Monoxide (CO)0-200/1000ppmElectrochemical
CO (with H2 compensation)0-200/1000ppmElectrochemical
Hydrogen Sulfide (H2S)0-50/100/200/1000/5000ppmElectrochemical
Oxygen (O2)0-25%volElectrochemical
Nitrogen Dioxide (NO2)0-20/500ppmElectrochemical
Nitric Oxide (NO)0-100/1000ppmElectrochemical
Sulfur Dioxide (SO2)0-20/100/2000ppmElectrochemical
Chlorine (CL2)0-20/200/2000ppmElectrochemical
Ammonia (NH3)0-100/1000/5000ppmElectrochemical
Hydrogen (H2)0-1000/10000/40000ppmElectrochemical
H2 (with CO compensation)0-1000ppmElectrochemical
Phosphine (PH3)0-5/20/1000ppmElectrochemical
Formaldehyde (CH2O)0-10/50/1000ppmElectrochemical
Ozone (O3)0-5/20/100/1000ppmElectrochemical
Fluorine (F2)0-1ppmElectrochemical
Hydrogen Fluoride (HF)0-10ppmElectrochemical
Hydrogen Chloride (HCL)0-20/200/1000ppmElectrochemical
Ethylene Oxide (ETO)0-20/100ppmElectrochemical
Silane (SIH4)0-50ppmElectrochemical
Chlorine Dioxide (CLO2)0-20/200/2000ppmElectrochemical
Hydrogen Cyanide (HCN)0-100 ppmElectrochemical
Ethylene (C2H4)0-10/200/1500 ppmElectrochemical
Hydrogen Peroxide (H2O2)0-100/500/2000 ppmElectrochemical
Combustible Gas (EX)0-100%LELCatalytic Combustion
Tetrahydrothiophene (C4H8S)0-50mg/m3Electrochemical
Volatile Organic Compounds (VOC)0-20/200/2000/10000 ppmPID Photoionization

Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
