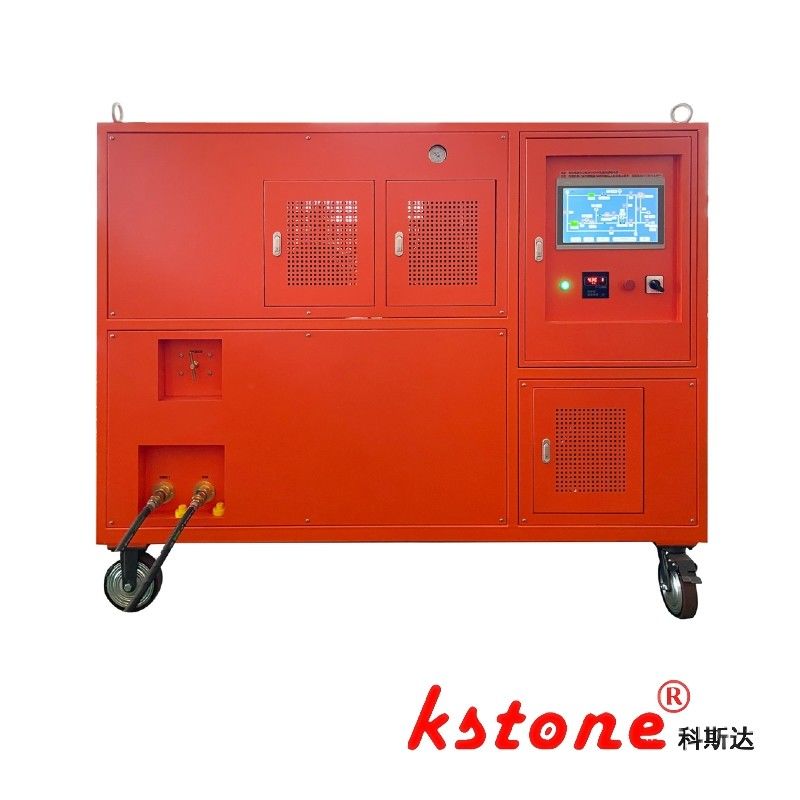

[KSLH-110Y/160-1200WZ] Automatic SF6 Recycling System for GIS/GIL

  • [KSLH-110Y/160-1200WZ] Automatic SF6 Recycling System for GIS/GIL
  • [KSLH-110Y/160-1200WZ] Automatic SF6 Recycling System for GIS/GIL
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-110Y/160-1200WZ
Minimum Order Quantity 1
Price $80000-100000
Packaging Details Carton / Wooden Box
Delivery Time 45 days
Payment Terms T/T
Supply Ability 10 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Compressor 110m³/h Negative-Pressure Compressor 160m³/h, 0.5MPa
Vacuum Pump 63m³/h Liquid Storage Tank 1200L
Pipeline Vacuum Pump 63m³/h Ultimate Vacuum ≤5Pa
Control System PLC-based Full Automation With HMI Filtration System 0.1μm Particle Filter, 3ppm Moisture Trap
Power Supply 3Φ 380V 50Hz, 45kW Total Load
Highlight

GIL portable r134a recovery machine

,

Refrigerant portable r134a recovery machine

,

R134a refrigerant gas recovery system
Leave a Message
Product Description

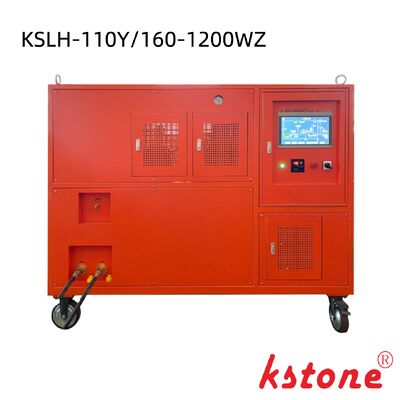

KSLH-110Y/160-1200WZ Automatic SF6 Recycling System for GIS/GIL

Industry Leadership

As the drafting entity of China's DL/T1353-2024 technical standard for SF6 treatment systems, our solutions set industry benchmarks. SF6 recovery equipment is custom-engineered, with configurations tailored to client needs—including negative-pressure recycling, storage tank capacity, and fully automated operations.

Product Overview

The KSLH-110Y/160-1200WZ is a high-capacity automatic system designed for 550kV insulation pot withstand voltage testing. It integrates a 110m³/h main compressor, 160m³/h negative-pressure compressor, 63m³/h pipeline vacuum pump, and 1200L horizontal external liquid storage tank for efficient SF6 management in high-voltage applications.

Technical Specifications Table

Component Specification
Main Compressor 110m³/h capacity
Negative-Pressure Compressor 160m³/h, 0.5MPa suction pressure
Pipeline Vacuum Pump 63m³/h, ultimate vacuum ≤5Pa
Liquid Storage Tank 1200L horizontal, carbon steel

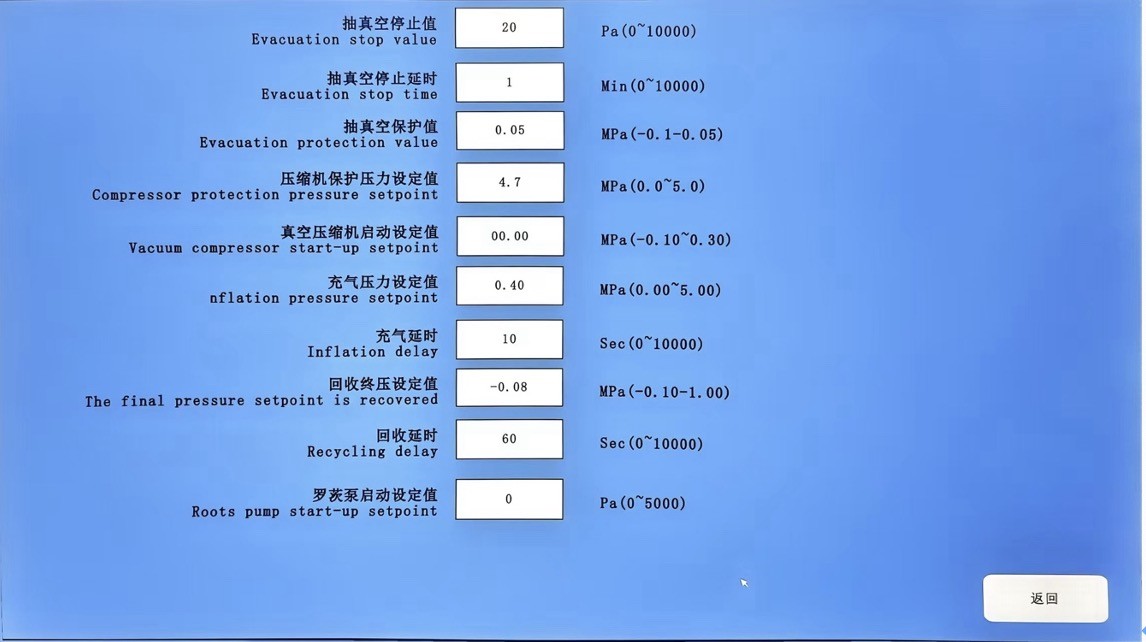

Control System PLC-based full automation with HMI
Filtration System 0.1μm particle filter, 3ppm moisture trap
Power Supply 3Φ 380V 50Hz, 45kW total load

Customization Options

  • Compression Configurations: Oil-free vs. lubricated compressors
  • Storage Capacity: 500L to 2000L tank options
  • Functional Add-ons: Filtration dehydration , Gas moisture and purity testing (optional)
  • Mobility Options: Trailer-mounted

Compliance & Standards

  • Compliant with DL/T1353-2024 and IEC 62271-403
  • Designed for GIS/GIL systems up to 1100kV voltage class
  • Meets ISO 14001 environmental management standards
