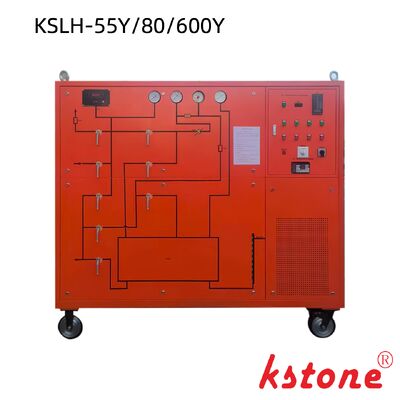

Manual SF6 Recovery System – 600L Negative Pressure Gas Recovery Unit

  • Manual SF6 Recovery System – 600L Negative Pressure Gas Recovery Unit
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLH-55Y/80/600Y
Document KSLH-55Y-80-600Y.pdf
Minimum Order Quantity 1
Price $90000-$100000
Packaging Details Carton / Wooden Box
Delivery Time 60 days
Payment Terms T/T
Supply Ability 10 per year
Product Details
Purification Efficiency 99.99% SF6 Concentration Recovery Initial Pressure (MPa) ≤0.5
Recovery Final Pressure (MPa) ≤-0.1 Time Required For 1m³ Volume (h/m³) ≤0.15 (depending On Interface Size)
Charging Initial Pressure (Pa) ≤133 Charging Final Pressure (MPa) 0.7
SF₆ Compressor 55m³/h Vacuum Compressor 80m³/h
Vacuum Pump 63m³/h
Leave a Message
Product Description

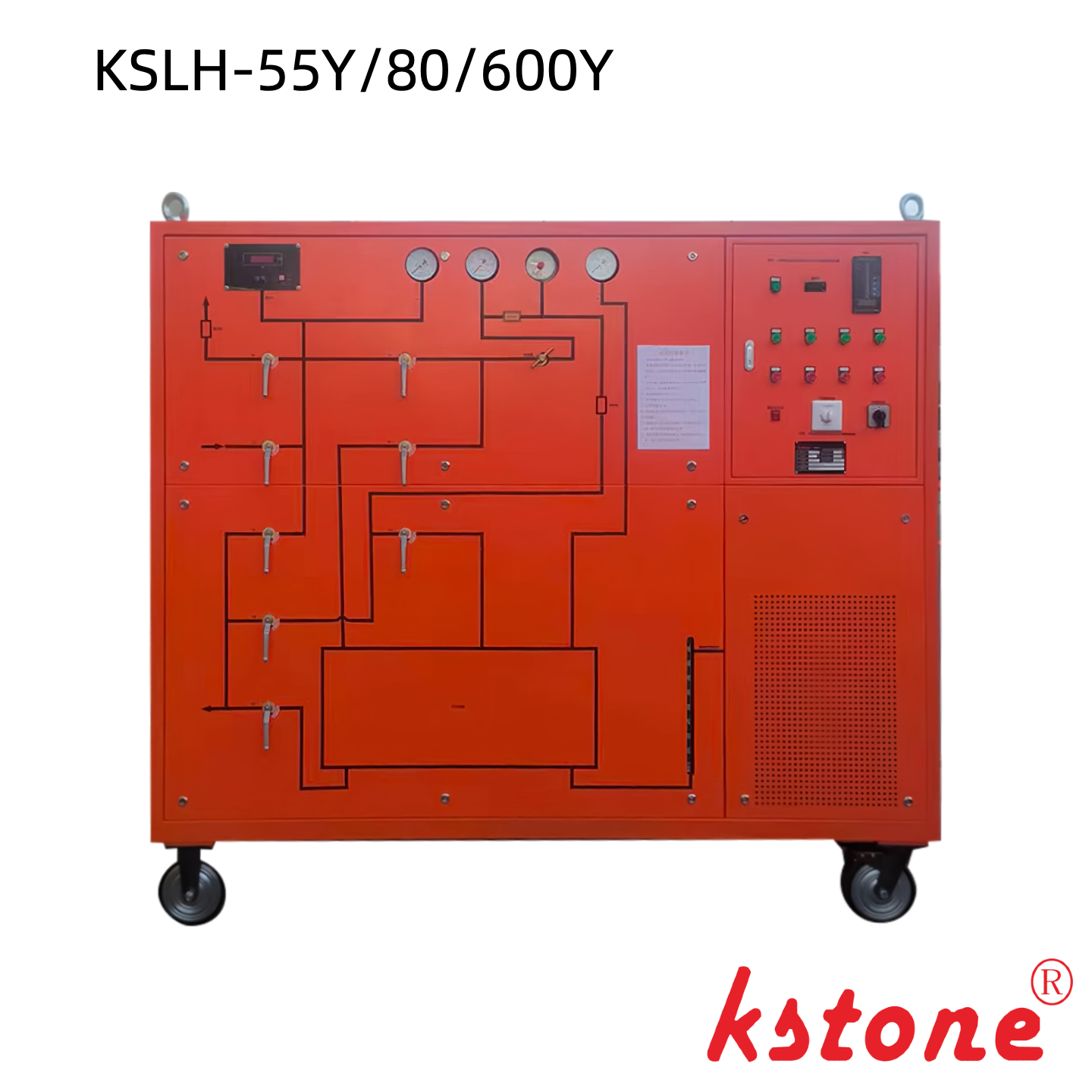

Manual SF6 Recovery System – 600L Negative Pressure Gas Recovery Unit
High-Efficiency SF6 Gas Recovery & Storage System for Switchgear Manufacturers
KSLH-55Y/80/600Y
Product Overview

KSTONE KSLH-55Y/80/600Y is a professional manual SF6 negative pressure recovery unit with 600L liquid storage capacity, specially designed for high-voltage switchgear (GIS) manufacturers and maintenance service providers. Adopting high-pressure refrigeration liquefaction and air-cooled technology, this mobile hand-push type equipment can realize efficient recovery, purification, liquefaction storage and refilling of SF6 gas. It can reduce the residual pressure of SF6 in GIS to 1kPa (absolute pressure), with a purification efficiency of up to 99.99%, which fully meets the industrial application requirements of SF6 gas recycling and environmental protection.

Core Advantages
  • ✅ Ultra-high Recovery Precision – Final recovery pressure ≤-0.1MPa, residual gas is almost completely recovered
  • ✅ Efficient Liquefaction Storage – 600L special liquid storage vessel, maximum storage capacity 600kg, pressure resistance 4MPa
  • ✅ Fast Processing Speed – 1m³ SF6 gas recovery only takes ≤0.15h (depending on interface size)
  • ✅ Integrated Multi-function – One machine for recovery, purification, drying, filtration and refilling
  • ✅ Flexible Mobile Application – Compact structure, hand-push design, suitable for on-site maintenance of HV switchgear
  • ✅ Reliable Quality Certification – ISO9000 certified, stable performance, adapt to industrial on-site working environment
Technical Parameters
Item Specification
Type High-pressure refrigeration liquefaction, air-cooled, hand-push mobile
Ambient operating temperature 10℃ ~ 40℃
Recovery
Initial pressure (MPa) ≤0.5
Final pressure (MPa) ≤-0.1
Time required for 1m³ volume (h/m³) ≤0.3 (depending on interface size)
Charging
Initial pressure (Pa) ≤133
Final pressure (MPa) 0.7
Final pressure (MPa) ≤0.15 (depending on interface size)
Storage Vessel
Storage method Liquid
Pressure (MPa) 4
Volume (L) 600
Storage capacity (kg) 600
Power supply Three-phase four-wire system, 3Φ 380V
Total power (kW) ≤25
Reference equipment dimensions 2640*1400*2220mm (reference)
Net weight (kg) ≤1900
SF₆ compressor 55m³/h
Vacuum compressor 80m³/h
Vacuum pump 63m³/h
Key Components & Working Principle
Core Configuration

The equipment is equipped with high-performance SF6 compressor (55m³/h), vacuum compressor (80m³/h) and vacuum pump (63m³/h), matching professional drying and filtration system, which ensures the purity of recovered SF6 gas and the stability of the whole machine operation. The 600L high-pressure resistant liquid storage vessel adopts special sealing technology to realize safe and reliable long-term storage of SF6 liquid.

Working Process
  1. Negative Pressure Recovery – The vacuum pump extracts the residual SF6 gas in GIS to the recovery unit under negative pressure condition, with final residual pressure ≤-0.1MPa
  2. Purification & Drying – The recovered gas is filtered and dried by the built-in purification system to remove impurities and moisture, ensuring 99.99% SF6 concentration
  3. Liquefaction Storage – The purified SF6 gas is converted into liquid state by high-pressure refrigeration liquefaction technology and stored in the 600L special vessel
  4. Precision Refilling – The liquid SF6 is vaporized and refilled back to GIS equipment according to the working pressure requirement, with refilling final pressure up to 0.7MPa
Application Scenarios

This SF6 negative pressure recovery system is the core supporting equipment for high-voltage switchgear (GIS) manufacturers and professional maintenance service providers, and is widely used in:

  • SF6 gas recovery and refilling during the production and assembly of high-voltage switchgear
  • On-site maintenance and replacement of HV switchgear in power plants, substations and industrial parks
  • SF6 gas recycling and environmental protection treatment in power equipment maintenance industry
  • Residual SF6 gas recovery of various SF6-filled electrical equipment
Why Engineers Choose This SF6 Recovery System
  • Stable negative pressure recovery
  • 600L large-capacity liquid storage tank
  • Oil-free compression process
  • High vacuum evacuation performance
  • Designed for factory and field use
  • Easy maintenance structure
  • Long service life industrial components
Core Functions

This SF6 Gas Recovery Unit integrates:

  • SF6 gas recovery
  • Vacuum evacuation
  • Gas purification
  • Liquid storage
  • Gas refilling

It is suitable for:

  • GIS production lines
  • Circuit breaker manufacturing
  • Substation overhaul
  • High voltage switchgear service
Designed not only for Middle East & Russia Market

This SF6 recovery system is built to operate in:

  • High-temperature environments (Middle East)
  • Cold climate conditions (Russia)
  • Industrial factory workshops
  • On-site substation maintenance

We provide:

  • Russian language technical support
  • CE compliant components
  • Export-ready documentation
  • Remote engineering assistance
How This System Improves Your Operation
1. Reduce SF6 Loss

Closed-loop recovery prevents gas leakage and environmental fines.

2. Improve Maintenance Efficiency

Faster evacuation and refill process reduces downtime.

3. Extend Equipment Life

Clean gas handling prevents moisture and contamination damage.

4. Lower Operating Cost

Reusable recovered SF6 reduces gas purchase expenses.

Applications
  • Switchgear manufacturers
  • GIS production factories
  • Power utility companies
  • Electrical service contractors
  • High voltage maintenance providers
Optional Customization

We offer:

  • Portable version
  • Automatic control upgrade
  • Explosion-proof configuration
  • Custom voltage & frequency
  • Logo branding for distributors
After-Sales & Technical Support
  • Installation guidance
  • Online engineer support
  • Spare parts availability
  • Remote troubleshooting
  • Operation training
Request Technical Quotation

Looking for a reliable SF6 Recovery System manufacturer?

Contact our engineering team today for:

  • Technical datasheet
  • Customized solution
  • Export quotation
  • Delivery timeline
Why Choose Kstone?
1. Top-tier Technical Authority
Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
2. One-stop SF6 Solution Range
Portable detectors to recovery systems | 100% accredited by national labs
3. Customizable Turnkey Services
Tailored equipment design | On-site installation & debugging
4. Global Support & Proven Reputation
1000+ global clients | Localized after-sales service
5. Eco-compliant & Cost-efficient
Aligns with EU F-gas Directive | Zero-emission SF6 handling
