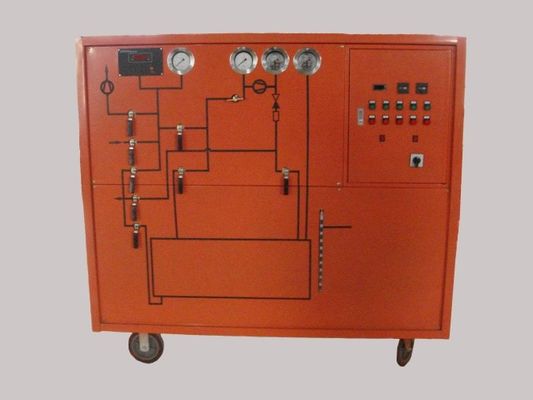

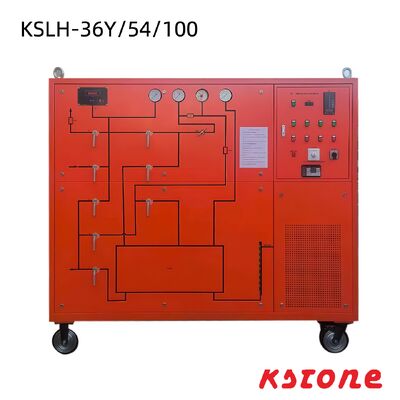

Manual operation, basic SF6 recovery device, working voltage three-phase 230V 60Hz

Manual operation, basic SF6 recovery device, working voltage three-phase 230V 60Hz

KSLH-18Y54100(23060Hz)

Suitable for single-phase 110V regions such as the United States, Canada, Mexico, Cuba, Panama, Jamaica, Bolivia, Ecuador, etc

Suitable for 60Hz

Main technical performance parameters
1. Performance parameters of the device
Type: Freeze liquefied, air-cooled, hand pushed mobile
Working environment temperature -10 ℃~40 ℃
Initial pressure (MPa) 0.8
Recovery final pressure (MPa) ≤ 0.053
Time required for 1m3 volume (h/m3) * ≤ 0.5
Initial pressure (Pa) ≤ 133
Inflation final pressure (MPa) 0.7
Time required for 1m3 volume (h/m3) ≤ 0.2
Vacuumizing from 0.1MPa to 133Pa takes time (h/m3) * * ≤ 1.0
Ultimate vacuum (Pa) ≤ 10
Vacuum maintained at 133Pa for 24 hours with an increase value (Pa) ≤ 400
Annual leakage rate ≤ 1%
SF6 moisture content after recycling (PPM/V) * * * ≤ 60
Gas purity and oil content (PPM/G) ≤ 10
Storage method: Liquid
Storage pressure (MPa) 8
Capacity (L) 100
Gas storage capacity (kg) 100
Drying filter regeneration method: Vacuum heating activation regeneration
Power supply three-phase four wire system 3 Φ 230V
Total power (kW) ≤ 10
Noise dB (A) ≤ 75

2. Main component performance parameters
Semi enclosed form
Theoretical displacement m3/h 18
Maximum exhaust pressure MPa 3.5
Allowable exhaust pressure MPa 3.0
SF6 compressor
Minimum allowable suction pressure KPa 53
Maximum allowable suction pressure MPa 1.0
Maximum exhaust temperature ℃ 130
Power kW 2.2
Power supply 3 Φ 230V 60Hz
Extraction rate L/s 15
Vacuum pump ultimate vacuum Pa ≤ 15
Lubricating oil HD25 refrigeration oil
Power kW 2.2
Power supply 3 Φ 230V 60Hz
Container Category 2
Design pressure MPa 8
Container design temperature ℃ 45
Storage container capacity L 100
Storage container storage capacity kg 100

Transportation parameters

Fumigation wooden box
Dimensions: 1600 * 830 * 1200
Gross weight: 570kg
