Manual Operation Basic SF6 Recovery Device 36m3/h Compressor

  • Manual Operation Basic SF6 Recovery Device 36m3/h Compressor
Place of Origin shanghai
Brand Name KSTONE
Certification ISO9001
Model Number KSLH-18Y-54-100
Minimum Order Quantity 1
Price &16000-20000
Packaging Details Fumigation wooden box
Delivery Time 10 work days
Supply Ability 1000set/year
Product Details
Highlight

Manual Operation SF6 Recovery Device

,

Basic SF6 Recovery Device

,

36m3/h SF6 Recovery Device
Leave a Message
Product Description

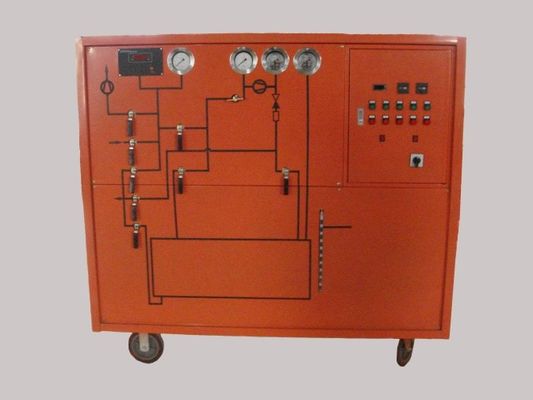

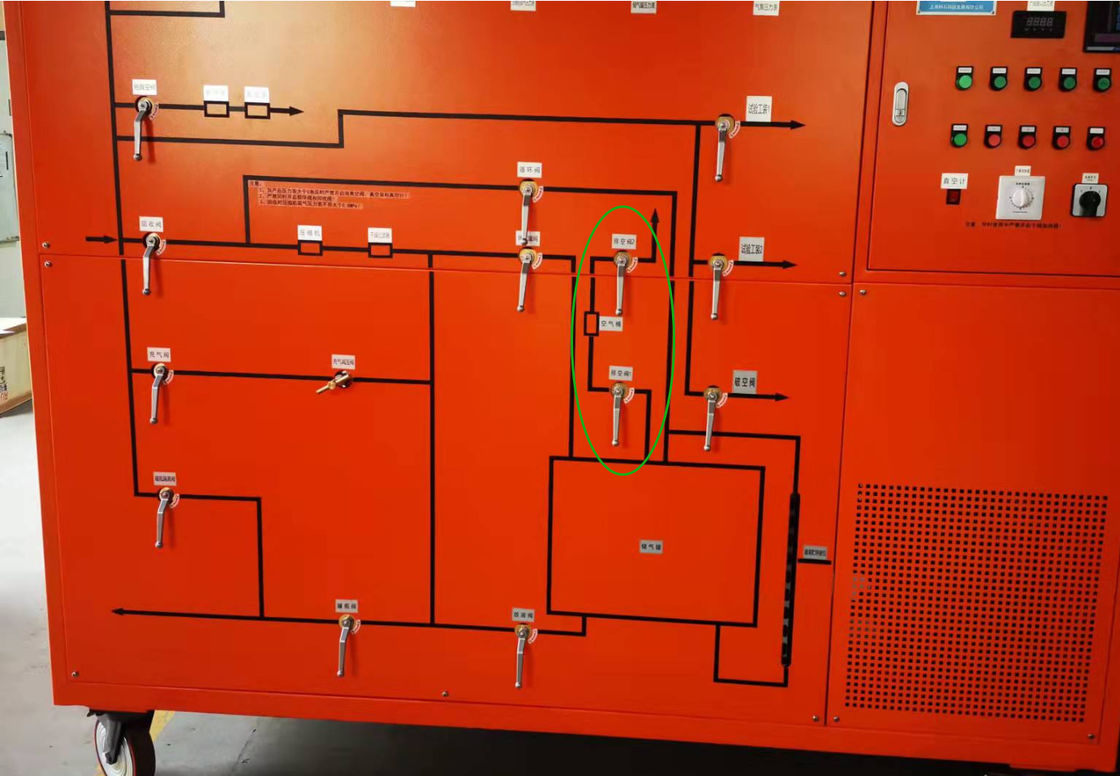

Manual operation, basic SF6 recovery device, working voltage three-phase 380V 50Hz

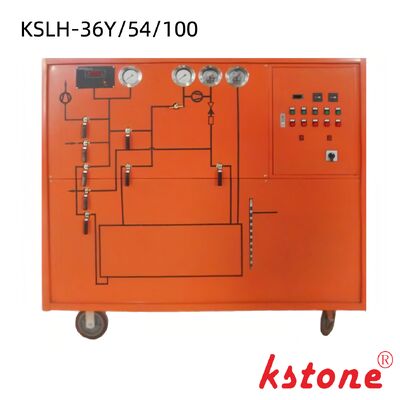

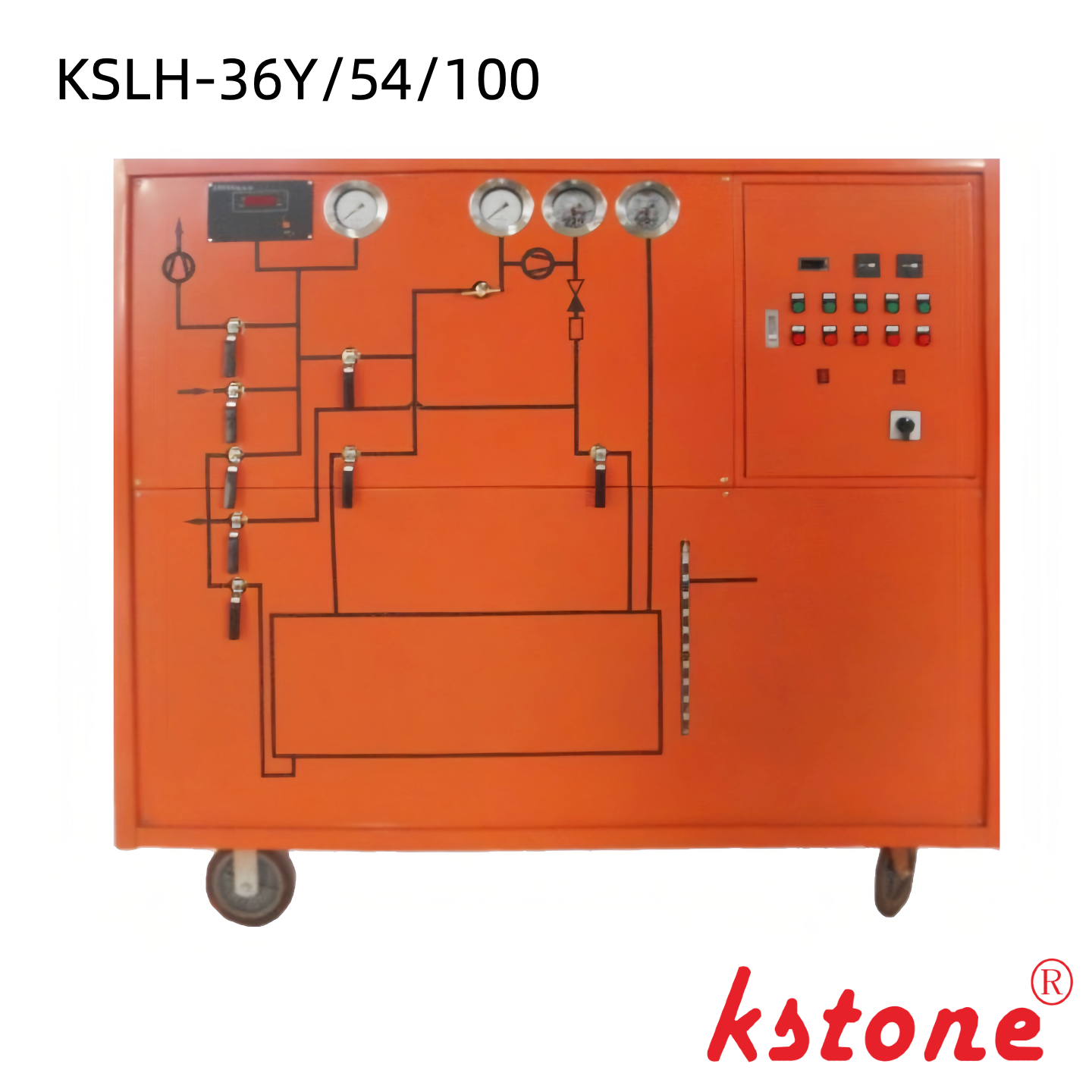

KSLH-36Y/54/100
Main technical performance parameters
1. Performance parameters of the device
Type:Freeze liquefied, air-cooled, hand pushed mobile
Working environment temperature-10 ℃~40 ℃
Initial pressure (MPa)0.8
Recovery final pressure (MPa)≤ 0.053
Time required for 1m3 volume (h/m3) *≤ 0.5
Initial pressure (Pa)≤ 133
Inflation final pressure (MPa)0.7
Time required for 1m3 volume (h/m3)≤ 0.2
Vacuumizing from 0.1MPa to 133Pa takes time (h/m3) * *≤ 1.0
Ultimate vacuum (Pa)≤ 10
Vacuum maintained at 133Pa for 24 hours with an increase value (Pa)≤ 400
Annual leakage rate≤ 1%
SF6 moisture content after recycling (PPM/V) * * *≤ 60
Gas purity and oil content (PPM/G)≤ 10
Storage method:Liquid
Storage pressure (MPa)8
Capacity (L)100
Gas storage capacity (kg)100
Drying filter regeneration method:Vacuum heating activation regeneration
Power supply three-phase four wire system3 Φ 380V 50Hz
Total power (kW)≤ 10
Noise dB (A)≤ 75

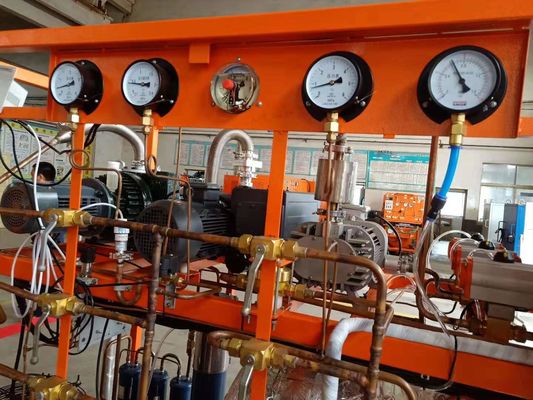

2. Main component performance parameters
Semi enclosed form
Theoretical displacement m3/h36
Maximum exhaust pressure MPa3.5
Allowable exhaust pressure MPa3.0
SF6 compressor
Minimum allowable suction pressure KPa53
Maximum allowable suction pressure MPa1.0
Maximum exhaust temperature ℃130
Power kW2.2
Power supply3 Φ 380V 50Hz
Extraction rate L/s15
Vacuum pump
Ultimate vacuum Pa≤ 15
Lubricating oilHD25 refrigeration oil
Power kW2.2
Power supply3 Φ 380V 50Hz
Container Category 2
Design pressure MPa8
Container design temperature ℃45
Storage container capacity L100
Storage container storage capacity kg100
Transportation parameters
Fumigation wooden box
Dimensions:1600 * 1000 * 1200
Gross weight:650kg
