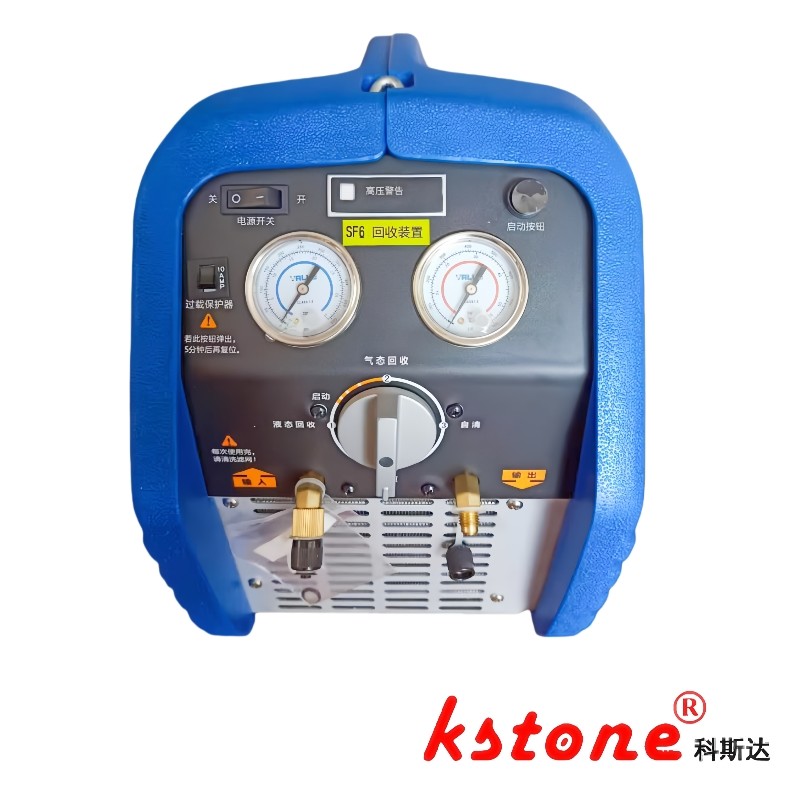

220V Portable Sf6 Gas Recovery Machine Steel Cylinder Filling

  • 220V Portable Sf6 Gas Recovery Machine Steel Cylinder Filling
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number KSLF-3Y/T
Document KSLF-3Y-T.pdf
Minimum Order Quantity 5
Price $7000-$8000
Packaging Details Carton / Wooden Box
Delivery Time 5 days
Payment Terms T/T
Supply Ability 100 per year
Product Details
Model KSLF-3Y/T Compressor Displacement 2.8m³/h
Maximum Discharge Pressure 3.5MPa Maximum Suction Pressure 0.4MPa
Allowable Discharge Pressure 3.2MPa Final Recovery Pressure ≤ 53Kpa
Noise 60DB Dimensions 500 * 400 * 300
Highlight

220V sf6 gas recovery

,

sf6 gas recovery Machine

,

220V refrigerant gas recovery machine
Leave a Message
Product Description
220V Portable SF6 Gas Recovery Machine, Steel Cylinder Filling for 10-35kV Medium-Voltage Switchgear

KSLF-3Y/T

This equipment is only used for the recovery of SF6 in 10-35kV medium-voltage switchgear. It is recommended to be used on-site, and it is generally not recommended for frequent use in the workshop.

Category Details
Model KSLF-3Y/T
Compressor Displacement 2.8m³/h
Compressor made in china  (Imported option available)
Maximum Discharge Pressure 3.5MPa
Maximum Suction Pressure 0.4MPa
Allowable Discharge Pressure 3.2MPa
Cooling Method Air cooling
Recovery Final pressure ≤ 53Kpa. Gas recovery speed: 20 - 30 kg/h. Liquid recovery: 70 - 80 kg/h
Storage In liquid state, it can be directly pressed into the cylinder for storage. The total weight of the whole machine is less than 25 kg (excluding the gas cylinder)
Noise 60DB
Dimensions Length 500 * Height 400 * Width 300 (Estimated, subject to actual delivery)
Power 1KW
Power Supply 220V

Attachment List

Name Technical Parameters or Description Quantity
Compressor (Built-in) Maximum pressure 3.5MPa, displacement 2.8m³/h 1
Interface Pipeline Dedicated for Inflatable Cabinets Can be customized according to customer needs 1
Interface Pipeline for Connecting Gas Cylinders Standard configuration 1
Aluminum Alloy Outer Box Portable outer box 1

Preliminary:

  • A spare gas tank
  • Self-sealing valves that can be connected to electrical equipment

Operation:

  • Left side (input) connected to electrical equipment
  • Right (output) gas cylinder
  • Connect power supply AC220
  • Turn on the power switch
  • Gaseous recovery is generally used.
