Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]

Large Image : Large SF6 Vacuum Pump Unit, 2000m3/H, Multi Channel, DN40, DN80 [KSCZ-2000/600]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-2000/600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25000-$30000
Packaging Details:	Wooden Box
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Pump Configuration:	2000 M³/h Roots Pump + 2×300 M³/h Front-end Pumps	Anti-Backflow:	Oil-based Design For Contamination Prevention
Ultimate Vacuum:	6×10⁻² Pa	Power Supply:	380V AC, 50Hz
Standard Accessories:	3×10m DN40 Pipelines	Pump Brand Options:	Leybold, Busch, Or Made-in-China Models
Pipeline Customization:	Adjustable Quantity And Length
Highlight:	Large SF6 Vacuum Pump , SF6 Vacuum Pump Cart , Multi Channel sf6 gas cart

Large vacuum unit, 2000m3/h, multi-channel pipeline, anti backflow oil,KSCZ-2000/600

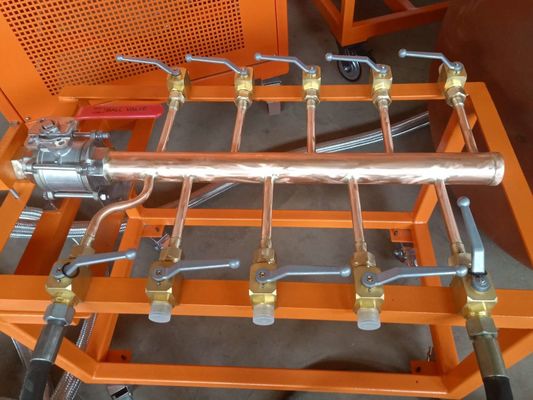

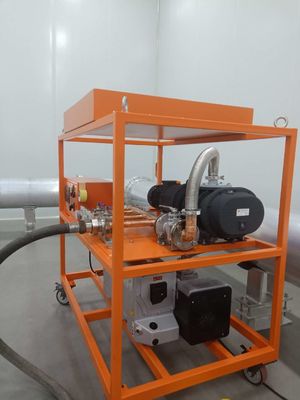

Engineered for heavy-duty industrial applications, the KSCZ-2000/600 vacuum unit features a 2000 m³/h Roots pump paired with two 300 m³/h front-end pumps, integrated with anti-backflow oil protection to prevent contamination. Capable of achieving an ultimate vacuum of 6×10⁻² Pa, the system is equipped with multi-channel connectivity via standard interfaces. Operating on a 380V AC 50Hz power supply, it includes three 10m DN40 pipelines as standard accessories. Customers can choose premium vacuum pumps from brands like Leybold or Busch, or opt for domestic Chinese models, with customizable pipeline quantity and length to suit specific project requirements.

Technical Parameter Table

Parameter	Description
Model	KSCZ-2000/600
Pump Configuration	2000 m³/h Roots pump + 2×300 m³/h front-end pumps
Anti-Backflow Protection	Oil-based design for contamination prevention
Ultimate Vacuum	6×10⁻² Pa
Power Supply	380V AC, 50Hz
Standard Accessories	3×10m DN40 pipelines
Pump Brand Options	Leybold, Busch, or Made-in-China models
Pipeline Customization	Adjustable quantity and length
