Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]

Large Image : Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-300/1000Z

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$20000-$25000
Packaging Details:	Wooden Box
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	10 per year

Contact Now

Detailed Product Description

Type:	Air-cooled Hand-push Mobile Type	Operating Environment Temperature:	-10℃～40℃
Pre-stage Vacuum Pump Extraction Rate:	300 M³/s	Ultimate Vacuum:	≤10 Pa
Power:	4 KW	Brand:	Leybold (optional)
Roots Vacuum Pump Extraction Rate:	1000 M³/s
Highlight:	Raffles SF6 Vacuum Pump , Leybold SF6 Vacuum Pump , Leybold dilo gas cart

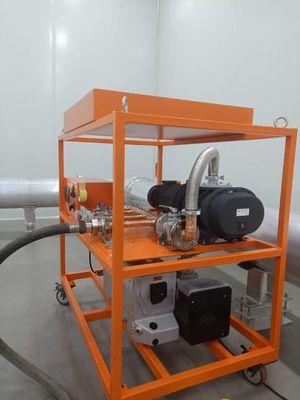

Full-Auto Vacuum Pumping Unit – Air-Cooled, Hand-Push Mobile, Leybold or Made in China (optional) Pumps KSCZ-300/1000Z

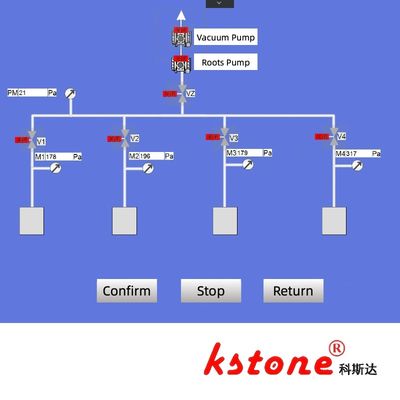

This vacuum unit adopts fully automatic control and can vacuum 4 products at once, with static control of vacuum degree；

Target vacuum value can be set, and vacuum pumping delay time can be set;
Can calculate the change in vacuum degree after stopping vacuuming;

Fully Automatic Vacuum Unit, Multi-Channel Vacuum Pumping, Precise Control Of Vacuum Degree, Static Vacuum Degree [KSCZ-300/1000Z] 0

Technical Parameters and Performance Indicators of the Device

Model		KSCZ-300/1000Z
Type		Air-cooled hand-push mobile type
Operating Environment Temperature		-10℃～40℃
Pre-stage Vacuum Pump	Extraction Rate (m³/s)	300
	Ultimate Vacuum (Pa)	≤20
	Power (kW)	7.5
	Brand	Leybold(optional);
Roots Vacuum Pump	Extraction Rate (m³/s)	1000
	Ultimate Vacuum (Pa)	≤10
	Power (kW)	4
	Brand	Leybold(optional);
External Interface		Dn20 4 channels (default)
Power Supply		Three-phase four-wire system 3Φ 380(optional);
Total Power (kW)		≤15
Noise dB(A)		≤75

The electrical system automatically verifies and manually adjusts the three-phase power supply.

It is also equipped with a phase loss protection function, which can effectively prevent the reverse rotation of the vacuum pump and the operation of all main units under phase loss conditions. Additionally,

it has a power failure protection function to prevent oil backflow in the vacuum pump during power outages.

Power Supply optional;
Vacuum pump brands are optional;
