[KSCZ-90C] Vacuum inflating trolley, 10m³/h Speed, 10Pa, 380V, Digital Display - Made in China

Large Image : [KSCZ-90C] Vacuum inflating trolley, 10m³/h Speed, 10Pa, 380V, Digital Display - Made in China

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KSCZ-90C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$4600-$5000
Packaging Details:	Wooden Box
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	100 per year

Contact Now

Detailed Product Description

Highlight:

230V Industrial Vacuum Pump

KSCZ-4 Industrial Vacuum Pump

2XZ-4 Industrial Vacuum Pump

[KSCZ-90C] Vacuum inflating trolley, with 90m³/h Speed, 10Pa, 380V, Digital Display - Made in China

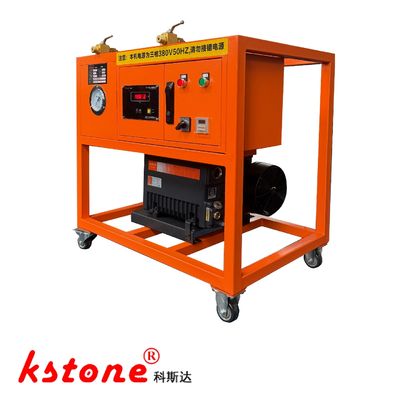

The KSCZ-90C is a hand-pushed industrial vacuum pump system integrated with a vacuum pump. It delivers a pumping speed of 90 m³/h and can reach a minimum vacuum degree of 10 Pa, ensuring reliable performance for various vacuum-dependent tasks.

To enable precise monitoring, the equipment is equipped with a digital display for vacuum measurement, allowing operators to obtain real-time and accurate readings—eliminating the inaccuracies of traditional analog monitoring methods.

In terms of power configuration, the KSCZ-90C works with a 380V power supply and has a rated power of 2.2 kW, supporting stable operation even during extended working periods. Manufactured in China, it is well-suited for vacuum operations in scenarios such as laboratories and workshops.

Attachment:
1. Pressure reducing valve, low pressure end pressure range optional;
2. One inflation pipeline, DN8,5m
3. One DN20 pipeline, 5m

4. Certificate of Conformity
5. Instruction manual
6. Factory Test Report

KSCZ-90C Hand-Pushed Industrial Vacuum Pump Parameter Table

Parameter Category	Specification
Model Number	KSCZ-90C
Equipment Form	Hand-Pushed
Equipped Vacuum Pump	90
Vacuum Speed	90m³/h
Minimum Vacuum Degree	10 Pa
Vacuum Measuring Method	Digital Display
Power Supply	380V
Rated Power	2.2 kW
Country of Origin	China
