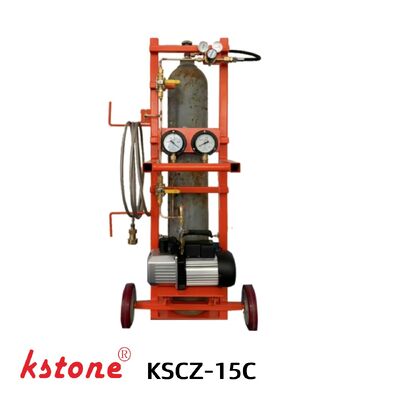

KSCZ-15C Portable SF6 Vacuum and Filling Device with 15 m³/h Vacuum Pump, Cylinder Cart Design, and Stainless Steel Armored Hose

  • KSCZ-15C Portable SF6 Vacuum and Filling Device with 15 m³/h Vacuum Pump, Cylinder Cart Design, and Stainless Steel Armored Hose
Place of Origin SHANGHAI
Brand Name KSTONE
Certification ISO-9000
Model Number KSCZ-15
Minimum Order Quantity 1
Price $4250-4550
Packaging Details Wooden box/ Carton box
Delivery Time 15 work days
Payment Terms T/T
Supply Ability 1000 per year
Product Details
Leave a Message
Product Description
KSCZ-15C Portable SF6 Vacuum and Filling Device
The KSCZ-15C Portable SF6 Vacuum and Filling Device is designed for vacuum evacuation and SF6 gas refilling operations in GIS substations, circuit breakers, and gas-insulated electrical equipment. Equipped with a 15 m³/h vacuum pump, pressure regulator, vacuum measurement system, and optional cylinder weighing and heating functions, the unit provides a convenient solution for on-site SF6 gas handling and maintenance. Its compact mobile design allows easy transportation of SF6 cylinders and efficient gas charging operations in power utility environments.
Key Features
  • Integrated Vacuum and Refilling Functions: Perform vacuum evacuation and SF6 gas charging with a single portable unit
  • High-Efficiency Vacuum Pump: Built-in vacuum pump with pumping speed up to 15 m³/h
  • Portable Cylinder Cart Design: Functions as a mobile gas cylinder trolley for field applications
  • Accurate Pressure Regulation: Integrated SF6 pressure regulator with adjustable outlet pressure
  • Stainless Steel Armored Hose: Durable stainless steel armored hoses ensure safe gas transfer
  • Vacuum Monitoring: Wide-range vacuum gauge enables real-time monitoring during evacuation
  • Optional Cylinder Heating: Improves gas transfer efficiency in low-temperature environments
  • Optional Cylinder Weighing System: Provides accurate monitoring of gas charging quantity
Structure Diagram
KSCZ-15C Portable SF6 Vacuum and Filling Device structure diagram KSCZ-15C Portable SF6 Vacuum and Filling Device detailed view
Technical Specifications
Parameter Value
Model KSCZ-15C
Application SF6 Gas Evacuation & Refilling
Vacuum Pumping Speed 15 m³/h
Pressure Gauge Range 0 - 1.6 MPa
Vacuum Gauge Range 0.1 - 100000 Pa
Pressure Regulator Range -0.1 - 1.6 MPa
Cylinder Weighing Range 0 - 150 kg
Main Hose DN8 * 6 m Stainless Steel Armored Hose
Cylinder Connection G5/8
Cylinder Hose DN8 * 0.3 m
Cylinder Heating Function Optional
Cylinder Weighing Function Optional
Dimensions 600 * 570 * 1360 mm
Weight 62 kg
Typical Applications
GIS Substations
Vacuum evacuation and SF6 gas charging during installation and maintenance.
High-Voltage Circuit Breakers
Preparation of gas compartments before commissioning.
Gas-Insulated Switchgear (GIS)
Routine maintenance and gas replenishment operations.
Electrical Utilities
On-site SF6 gas handling and equipment servicing.
Advantages of KSTONE SF6 Equipment
  • More than 20 years of experience in SF6 gas handling technology
  • ISO9001 certified manufacturing system
  • Participant in multiple SF6 industry standards
  • OEM and customized solutions available
  • Exported to power utilities and EPC contractors worldwide
FAQ
  • What is the KSCZ-15C used for?
    The KSCZ-15C is designed for vacuum evacuation and SF6 gas refilling of GIS and gas-insulated electrical equipment.
  • Can the unit perform both vacuuming and gas filling?
    Yes. The equipment integrates vacuum pumping and SF6 gas charging functions.
  • What is the vacuum pump capacity?
    The built-in vacuum pump provides a pumping speed of 15 m³/h.
  • Is cylinder weighing included?
    The cylinder weighing system is available as an optional configuration.
  • Is cylinder heating available?
    Yes. Cylinder heating can be added as an optional feature to improve gas transfer efficiency.
Why Work With KSTONE
  • Professional SF6 gas equipment manufacturer
  • Extensive GIS industry application experience
  • OEM & customized solution support
  • Fast technical response
  • Stable industrial-grade equipment
  • Global B2B export experience
Request a Quote for SF6 Vacuum Unit
Send us your technical requirements and application details. Our engineering team will provide a suitable SF6 Vacuum unit solution within 24 hours.
