SF6 Leak Detector – 0.01ppm High Sensitivity Leak Detection for GIS and Switchgear
| Place of Origin | Shanghai |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO9000 |
| Model Number | LF-1D+ |
| Document | LF-1D+.pdf |
| Minimum Order Quantity | 5 |
| Price | $3000-$3200 |
| Packaging Details | Carton / Wooden Box |
| Delivery Time | 7-10 work days |
| Payment Terms | T/T |
| Supply Ability | 100 per year |
Product Details
| Sensitivity | 0.01 Ppm | Measurement Range | 0.01-1000 Ppm |
|---|---|---|---|
| Warranty | 1years | Display | Digital LCD |
| Response Time | ≤1 Second In 100ppm | Physical Dimensions | 430×275×429mm |
| Highlight | 250W co2 leak detector,SF6 co2 leak detector,industrial sf6 leak pointer |
||
Product Description

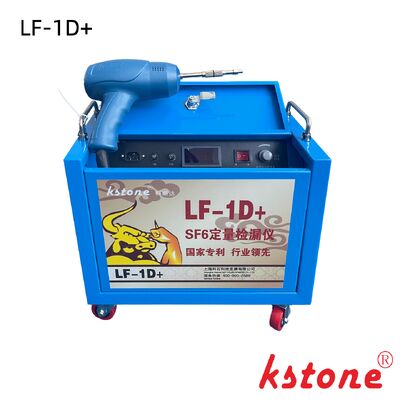

SF6 Leak Detector – 0.01ppm High Sensitivity Leak Detection for GIS and Switchgear
LF-1D+
The SF6 Leak Detector is a high-sensitivity gas detection instrument designed for SF6 gas leakage detection in high voltage electrical equipment such as GIS, circuit breakers and gas insulated switchgear.
With a detection sensitivity of up to 0.01 ppm, the instrument can quickly detect micro leaks and help engineers locate leakage points accurately.
The device is widely used by:
- Power utilities
- High voltage switchgear manufacturers
- Substation maintenance companies
- Electrical testing laboratories
Key Features
✔ Ultra-high sensitivity up to 0.01 ppm
Detect extremely small SF6 leaks in GIS and switchgear equipment.
✔ Fast response
Quickly identify leakage points during maintenance.
✔ Portable design
Lightweight and easy to operate in substations and industrial environments.
✔ Accurate quantitative detection
Suitable for precision leak detection in high voltage equipment.
✔ Stable performance
Reliable operation in industrial environments.
✔ User friendly operation
Designed for engineers and field technicians.
Applications
GIS Leak Detection
Gas insulated switchgear (GIS) uses SF6 gas as insulation medium. Even very small leakage may affect equipment reliability.
The SF6 leak detector allows engineers to quickly locate leakage points during maintenance.
Switchgear Manufacturing
Switchgear manufacturers use SF6 leak detectors during production quality testing to ensure gas tightness.
Substation Maintenance
Power utilities use portable leak detectors during routine inspection of GIS and circuit breakers.
Industry Credibility
As the drafter of GB/T11023-2018 national standard, this detector ensures industrial-grade reliability for cost-effective, low-maintenance SF6 leak testing in electrical equipment. Ideal for utilities, manufacturing, and energy sectors.
Technical Specifications Table
| Parameter | Details |
|---|---|
| Measurement Accuracy | ≥10, detects SF6 concentration as low as 0.01ppm |
| Measurement Range | 0.01ppm – 1000ppm |
| Response Time | ≤1 second for 100ppm SF6 gas |
| Indication Method | LCD digital display with real-time concentration readings; buzzer frequency varies with leakage severity |
| Vacuum Hose | 4m (extendable to 6m) |
| Power Cable | 2m (extendable to 6m), 220V±22V, 50Hz±2Hz |
| Dimensions | 430*275*429mm (L*W*H) |
| Net Weight | ~19.8kg |
| Packaging | Foam carton |
| Continuous Working Time | ≤8 hours |
| Operating Temperature | 5℃ – 50℃ |
| Humidity Resistance | Operates in environments with humidity >80% |
| Power Consumption | 250W |
Participate in the development of GB/T11023 standards
Invention patent for this type of leak detector
Optional Customization
This SF6 leak detector can be customized according to customer requirements, including:
- Different power supply standards
- Detection range configuration
- Alarm functions
- Interface and display options
Customization helps meet different technical standards and application requirements worldwide.
Why Choose Kstone?
- Top-tier Technical Authority
Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications - One-stop SF6 Solution Range
Portable detectors to recovery systems | 100% accredited by national labs - Customizable Turnkey Services
Tailored equipment design | On-site installation & debugging - Global Support & Proven Reputation
1000+ global clients | Localized after-sales service - Eco-compliant & Cost-efficient
Aligns with EU F-gas Directive | Zero-emission SF6 handling
Request a Quote
If you are looking for a high sensitivity SF6 leak detector for GIS or switchgear, please contact us.
Our engineers can provide:
- Technical datasheet
- Product recommendation
- Competitive quotation
Email: info@kstone-sf6.com
Website: www.kstone-sf6.com
