Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment [LF-03-FR]

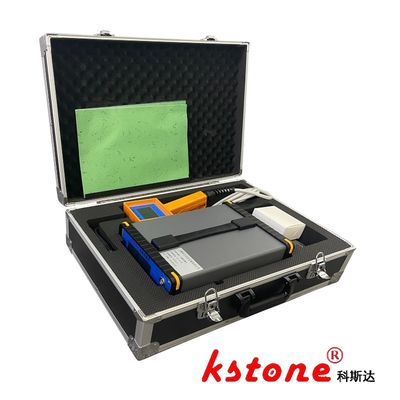

Large Image : Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment [LF-03-FR]

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	LF-03-FR

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$2000-$100000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Detection Principle:	NDIR Non-dispersive Infrared (dual-beam)	Measuring Range:	0–1000 PPM (customizable Options Available)
Detection Accuracy:	≤±2% F.S. (relative To Specified Range)	Minimum Detection Limit:	0.1ppm
Resolution:	0.1ppm	Response Time:	≤3 Seconds
Preheating Time:	≤3 Minutes	Working Humidity:	≤90%RH
Highlight:	adjustable sf6 gas sensor , Dilo sf6 gas sensor , Quantitative dilo leak detector

Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment LF-03-FR

The LF-03-FR SF6 gas leak detector is a portable next-gen solution for high-voltage equipment (GIS, circuit breakers, switches) leak detection. Equipped with an imported NDIR dual-beam infrared sensor and advanced calibration technology, it identifies leaks as low as 0.1ppm with ≤±2% F.S. accuracy, delivering results in just 1 second.

Key Advantages:

Cost-Effective Alternative: Replaces Wika/Dilo detectors without compromising performance
Long-Lasting Operation: 6+ hours of battery life for extended field use
Intuitive Interface: Color touchscreen LCD with real-time audio-visual alarms
Advanced Algorithms: Hood algorithm for leak rate calculation and long-term calibration stability
Standard Compliance: Meets GB/T11023-2018 requirements as a national standard drafting unit product

Ideal for power utilities, maintenance teams, and manufacturing sectors, the LF-03-FR combines speed and precision for reliable SF6 leak detection.

Technical Specifications Table

Parameter	Description
Model	LF-03-FR
Detection Principle	NDIR non-dispersive infrared (dual-beam)
Measuring Range	0–1000 PPM (customizable options available)
Detection Accuracy	≤±2% F.S. (relative to specified range)
Minimum Detection Limit	0.1ppm
Resolution	0.1ppm
Response Time	≤1 second
Preheating Time	≤3 minutes
Sampling Method	Handheld suction type with built-in pump
Display	800×480 main color LCD + 320×240 handle LCD
Operation Mode	Resistive touch screen
Power Supply	Rechargeable lithium battery / AC220V/50Hz
Working Humidity	≤90%RH
Compliance	GB/T11023-2018
