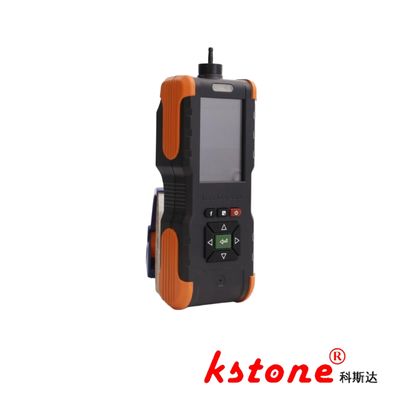

Multi-Component Gas Leak Detector LF-01-FR (Suitable for SF₆/SO₂/CH₄/CO₂ & More Gases)

I. Core Product Advantages

1. Infrared Precision Detection with Strong Anti-Interference Capability

• Automatically filters environmental impurities such as oil, water, and dust, preventing interference signals from affecting detection results;
• Features fast response speed, allowing quick localization of leak points and reducing the risks of missed detection and false detection.

2. Humanized Design for Easier Operation and Portability

• Clear Visual Interface: Equipped with a 3.5-inch HD color display (resolution: 480×320), which intuitively presents real-time data, concentration curves, alarm status, and other information without complicated interpretation;
• Low-Power & Efficient Control: Pure hardware one-key on/off design reduces unnecessary power consumption and extends battery life;
• Flexible Adaptation to Complex Scenarios: Optional long-handle suction probe tube for easy access to hard-to-reach areas such as equipment gaps and high-altitude pipelines;
• Portable Mobility: Comes with a standard leather shoulder bag; the whole machine weighs only about 500g, facilitating on-site personnel to operate it by hand or carry it on the shoulder.

3. Comprehensive Functions to Meet Diverse Detection Needs

• Multi-Dimensional Data Presentation: Simultaneously displays real-time detection values and concentration change curves, enabling intuitive grasp of gas leak trends;
• Flexible Sampling Adjustment: Built-in adjustable speed air pump (0-500cc/Min) for flexible switching between high and low sampling speeds according to leak scenarios;
• Simultaneous Multi-Gas Detection: Supports simultaneous detection of up to 4 infrared-sensitive gases (configurable on demand), eliminating the need for frequent equipment replacement;
• Intelligent Data Management:
  • Supports Chinese/English interface switching and automatic gas unit conversion (calculated by the intelligent system);
  • Standard 8G SD card for data storage (16G/32G optional); recording interval is customizable for long-term storage of massive data;
  • Enables fast data export (in TXT format) via Micro-USB and Android data cables; optional external Bluetooth printer for on-site instant printing of detection reports;
• Strong Environmental Adaptability: Combined with a sampling probe gun, it can work stably in high-temperature (-20℃~50℃, up to 1200℃ with flue gas probe gun), high-humidity (0-95%RH, non-condensing; optional filter for high humidity), and high-dust environments.

II. Detailed Technical Specifications

III. Applicable Gases & Sensor Parameters

IV. Application Scenarios

V. Instrument Configuration

Standard Configuration

Optional Accessories
