[LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

  • [LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified
Place of Origin Shanghai
Brand Name KSTONE
Certification ISO9000
Model Number LF-03-FR
Document sf6 leak detector.pdf
Minimum Order Quantity 5
Price $9000-$12000
Packaging Details Carton / Wooden Box
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000 per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Method NDIR Non-dispersive Infrared (dual-beam) Measurement Range 0-1000 PPM (customizable)
Accuracy ≤±2% F.S. (full-scale) Sensitivity 0.1 Ppm
Highlight

GB/T11023-2018 SF6 Gas Leak Detector

,

NDIR Sensor SF6 Gas Leak Detector
Leave a Message
Product Description

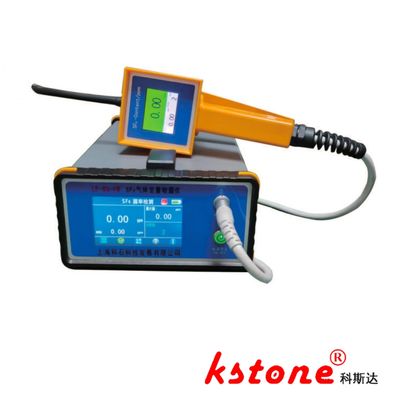

[LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

The LF-03-FR is a cutting-edge handheld tool designed to pinpoint SF6 leaks in high-voltage infrastructure such as GIS, circuit breakers, and switchgear. Equipped with imported NDIR infrared sensors and refined calibration tech, it detects leaks as tiny as 0.1ppm with ≤±2% F.S. accuracy, delivering results in under 1 seconds.

Standout Features:
  • Budget-Friendly Alternative to Wika/Dilo – Top-tier performance at a competitive price
  • Long-Lasting Power – 6+ hours of continuous use with rechargeable lithium batteries
  • User-Friendly Design – Intuitive touchscreen (800×480 color LCD) + real-time audio-visual alerts
  • Advanced Leak Tracking – Built-in hood algorithm computes leak rates for proactive upkeep
  • Verified Quality – Complies with GB/T11023-2018 standards, validated by China’s national metrology institute

Ideal for utility teams, maintenance professionals, and industrial producers. Elevate your leak detection with speed and precision—secure yours now!

Technical Specifications
Technical Specifications Details
Power Source Rechargeable lithium battery or AC220V/50Hz
Detection Method NDIR non-dispersive infrared (dual-beam)
Measurement Range 0-1000 PPM (customizable)
Accuracy ≤±2% F.S. (full-scale)
Sensitivity 0.1 ppm
Response Time ≤1 seconds
Warm-Up Time ≤3 minutes
Design Handheld suction-type
Humidity Tolerance ≤90% RH
Display Dual screens: 800×480 main LCD + 320×240 handle LCD
Controls Resistive touchscreen


Why Choose Kstone?
  1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

    2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

    3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

    4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

    5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
