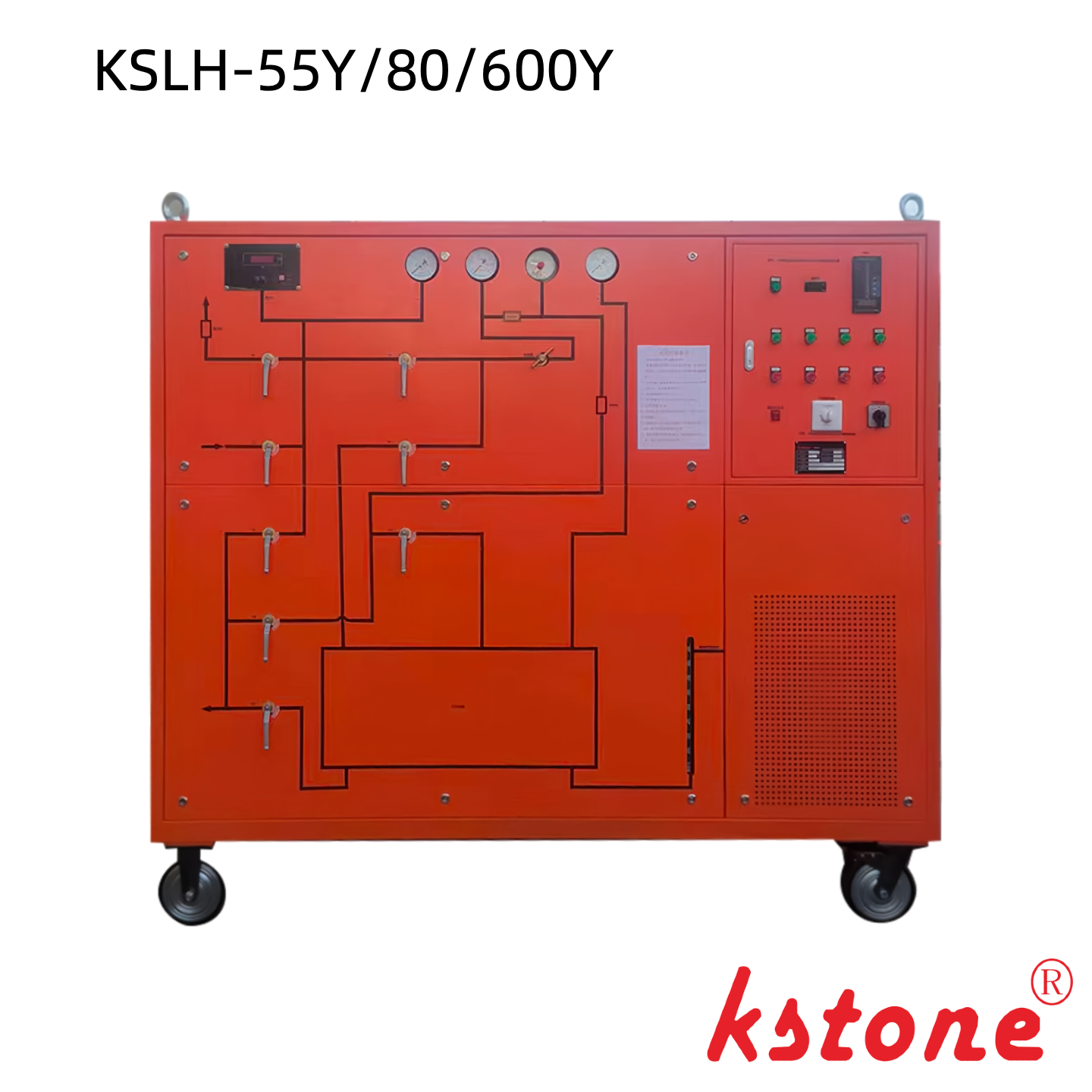

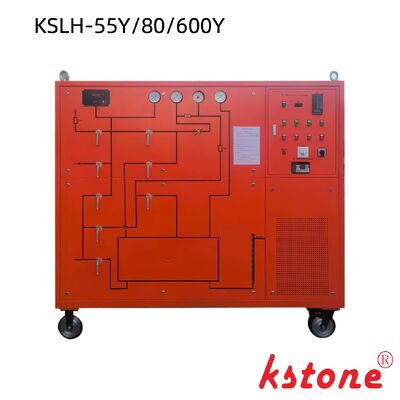

Manual SF₆ Negative Pressure Recovery Unit | 600L Liquid Storage
| Place of Origin | Shanghai |
|---|---|
| Brand Name | KSTONE |
| Certification | ISO9000 |
| Model Number | KSLH-55Y/80/600Y |
| Document | KSLH-55Y-80-600Y.pdf |
| Minimum Order Quantity | 1 |
| Price | $90000-$100000 |
| Packaging Details | Carton / Wooden Box |
| Delivery Time | 60 days |
| Payment Terms | T/T |
| Supply Ability | 10 per year |
Product Details
| Purification Efficiency | 99.99% SF6 Concentration | Recovery Initial Pressure (MPa) | ≤0.5 |
|---|---|---|---|
| Recovery Final Pressure (MPa) | ≤-0.1 | Time Required For 1m³ Volume (h/m³) | ≤0.15 (depending On Interface Size) |
| Charging Initial Pressure (Pa) | ≤133 | Charging Final Pressure (MPa) | 0.7 |
| SF₆ Compressor | 55m³/h | Vacuum Compressor | 80m³/h |
| Vacuum Pump | 63m³/h |
Product Description
Manual SF₆ Negative Pressure Recovery Unit | 600L Liquid Storage-KSLH-55Y/80/600Y
The main advantages of this model include the ability to directly store recovered SF₆ gas in liquid form into containers, recover residual pressure in GIS down to 1 kPa (absolute pressure), a compact size for easy mobility, fast vacuum pumping speed, drying and filtering of recovered SF₆ gas, and recharging SF₆ gas back to GIS.
Key Components
| Item | Specification |
| Type | High-pressure refrigeration liquefaction, air-cooled, hand-push mobile |
| Ambient operating temperature | 10℃ ~ 40℃ |
| Recovery | |
| Initial pressure (MPa) | ≤0.5 |
| Final pressure (MPa) | ≤-0.1 |
| Time required for 1m³ volume (h/m³) | ≤0.3 (depending on interface size) |
| Charging | |
| Initial pressure (Pa) | ≤133 |
| Final pressure (MPa) | 0.7 |
| Final pressure (MPa) | ≤0.15 (depending on interface size) |
| Storage Vessel | |
| Storage method | Liquid |
| Pressure (MPa) | 4 |
| Volume (L) | 600 |
| Storage capacity (kg) | 600 |
| Power supply | Three-phase four-wire system, 3Φ 380V |
| Total power (kW) | ≤25 |
| Reference equipment dimensions | 2640*1400*2220mm (reference) |
| Net weight (kg) | ≤1900 |
| SF₆ compressor | 55m³/h |
| Vacuum compressor | 80m³/h |
| Vacuum pump | 63m³/h |
