Dimensions: | 600mm X 500mm X 280mm | Resolution: | 0.1 |
---|---|---|---|
Power Consumption: | 10W | Storage Temperature: | -20-60°C |
Operating Temperature: | 0-40°C | Accuracy: | ±0.5% |
Weight: | 10kg | Power Supply: | AC/DC |
Highlight: | OEM SF6 Gas Tester,220V SF6 Gas Tester,10W sf6 tester |

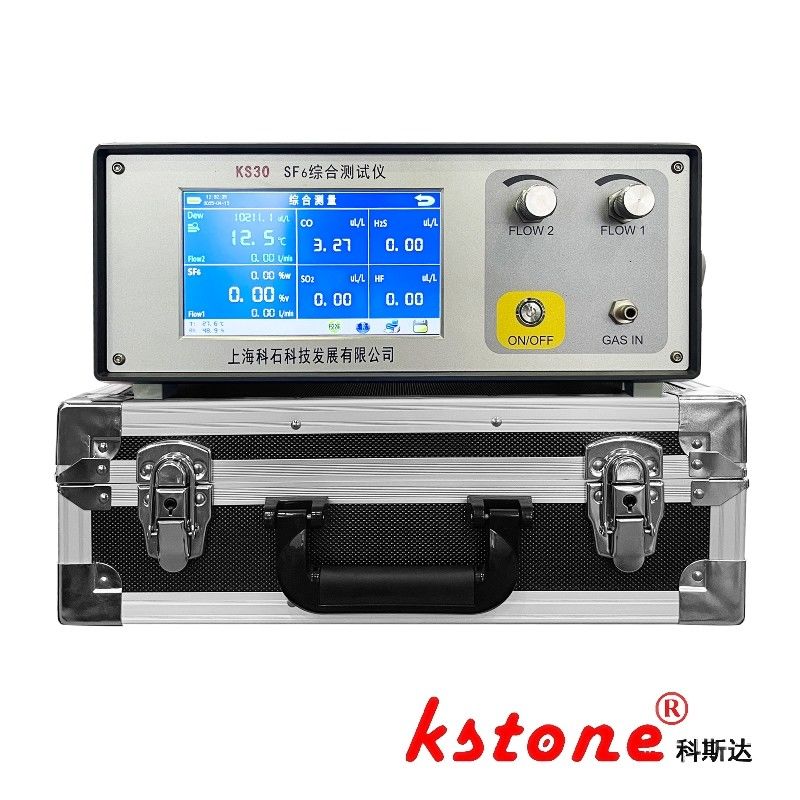

Comprehensive Gas Tester: Dew Point, Purity & Decomposition Products Accurately KS30
Most SF6 comprehensive testers, except for a few commonly used models, are basically modular and customizable.
We will provide customized services according to the needs of our customers.
Dew point testing is a part of the comprehensive testing instrument, and our company's model is kst-vii, using Vaisala 143 sensors;
Our company is one of the units responsible for formulating the industry standards issued by the National Energy Administration of China,
namely "DL/T1366-2018 Sulfur Hexafluoride Gas for Power Equipment"
and "DL/T1353-2024 Technical Specifications for Sulfur Hexafluoride Treatment Systems".
Technical Specifications
SF6 Humidity | |
Measurement Range | Dew point: -80~+20℃ (Supports ppmv, etc.) |
Dew Point Accuracy | ±1℃ (When the dew point temperature is lower than 0℃, the sensor output is the frost point) |
Response Time | 63%[90%] +20→-20℃ Td: 5s[45s] -20→-60℃ Td: 10s[240s] |
Resolution | Dew point: 0.1℃ or 0.1ppm |
Gas Flow Rate | 0.25~0.35L/min Equipped with an electronic mass flowmeter No impact from the sample gas flow rate |
Pressure Measurement | 0~1.0MPa |
Probe Protection | Stainless steel sintered filter screen |
SF6 Purity | |
Range | 0~100% SF6 |
Accuracy and Repeatability | ±0.1%, independent of flow rate |
Response Time | 30S |
SF6 Decomposition Products | |
H2S | Measurement range: 0~200ppm Accuracy: ≤±0.5% |
SO2 | Measurement range: 0~100ppm Accuracy: ≤±0.5% |
CO | Measurement range: 0~1000ppm Accuracy: ≤±0.5% |
HF | Measurement range: 0~10ppm Accuracy: ≤±0.5% |
Sensitivity | 0.1 ppm |
Repeatability | ≤±1% |
General Part | |
Operating Voltage | 220VAC±10%, 50Hz. Both AC and DC available. Overcharge protection. Continuous working time is not less than 5 hours. |
Storage Temperature Range | -40~+70℃ |
Output Interface | Compliant with USB1.1 specification |
Data Storage | Can store 200 records |
Operating Environment | Temperature: -30~+60℃ Pressure: 0~20bar Sample Gas Flow Rate: No impact |
Other Configurations | Standard version management software, including report printing and commonly used humidity conversion toolkit |
Dimensions | 132×283×308 (presumably in mm, if not, please clarify the unit) |
Selection of KS30 Series Comprehensive Testers
Model | Purity | Dew Point | SO₂ | H₂S | CO | HF | Equipped with Recycling Function |
---|---|---|---|---|---|---|---|
KS30 | √ | √ | √ | √ | √ | ||
Ks30-6 | √ | √ | √ | √ | √ | √ | |
KS30-3 | √ | √ | √ | ||||
KS30-T | √ | √ | √ | ||||
KS30-TC | √ | √ | √ | √ | |||
KS30-CS | √ | √ | |||||
KS30-4 | √ | √ | √ | √ | |||
KS30-C3 | √ | √ | √ | √ | |||
KS30-C4 | √ | √ | √ | √ | √ | ||
KS30-C | √ | ||||||
kS30-R-* | √ |
SF6 comprehensive testers, except for a few commonly used models, are basically modular customized.
We will provide customized services based on customer needs.
