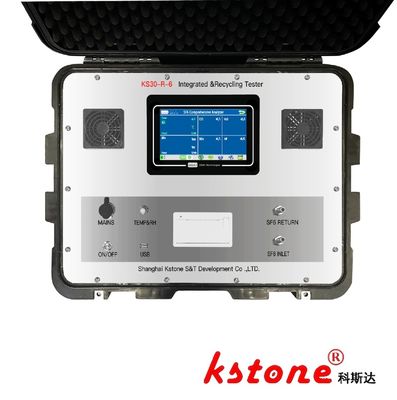

Intelligent SF6 comprehensive tester with recycling, purity, micro water, decomposition products

Large Image : Intelligent SF6 comprehensive tester with recycling, purity, micro water, decomposition products

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS30-R-6

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$15000-$25000
Packaging Details:	Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Purity:	Measuring Range:0%~100%	Warranty:	1 Year
Application:	SF6 Purity Analyzer, Gas Analyzer	Interface:	USB，485
Dew Point:	-80℃~+20℃	Accuracy:	+/- 2%
Power:	Electronic	Power Supply:	18650 Lithium Battery, 21.6V/20Ah
Operating Temperature:	0-50°C	Storage Temperature:	-20-60°C
Highlight:	lightweight SF6 Gas Tester , ODM SF6 Gas Tester , 240V sf6 gas purity test

Environmentally Friendly Tester , Emission Free , Comprehensive Tester With Recycling Function KS30-R-6

SF6 Gas Decomposition Products Detection Module

Item	Details
Measurement Range	[SO₂] 0~100 µl/l, [H₂S] 0~100 µl/l, [CO] 0~500 µl/l, [HF] 0~10 µl/l
Accuracy	±10%
Resolution	0.1 µl/l
Response Time	≤60s

SF6 Purity Detection Module

Item	Details
Measurement Range	0～100%
Accuracy	≤±0.5%
Repeatability	≤±0.2%
Resolution	0.01%
Response Time	≤60S

SF6 Humidity Detection Module

Item	Details
Dew Point Range	-60℃～+20℃
Measurement Accuracy	±2℃
Measurement Response Time (+20℃)	-60℃ →20℃ 30S[60s] 20℃→-60℃ 60S[600S]
Resolution	Dew Point: 0.1℃
Repeatability	±1℃

Parameters of the Whole Machine

Parameter	Details
Alternating Current Power Supply	AC100-240V/50-60HZ
Charger Specification	DC28V/5A
Battery	18650 Lithium Battery, 21.6V/20Ah
Usage Duration	> 10 hours
Display Screen	7-inch Color Touchscreen
Inlet Pressure	0.1-0.7 Mpa
Recharge Pressure	Maximum: 0.7 Mpa
Dimensions	562440240mm (Length Width Height)
Weight	Approximately 27 kilograms

Intelligent SF6 comprehensive tester with recycling, purity, micro water, decomposition products 0

Intelligent SF6 comprehensive tester with recycling, purity, micro water, decomposition products 1

Intelligent SF6 comprehensive tester with recycling, purity, micro water, decomposition products 2

Comprehensive testing can be customized according to requirements, with modular combinations
