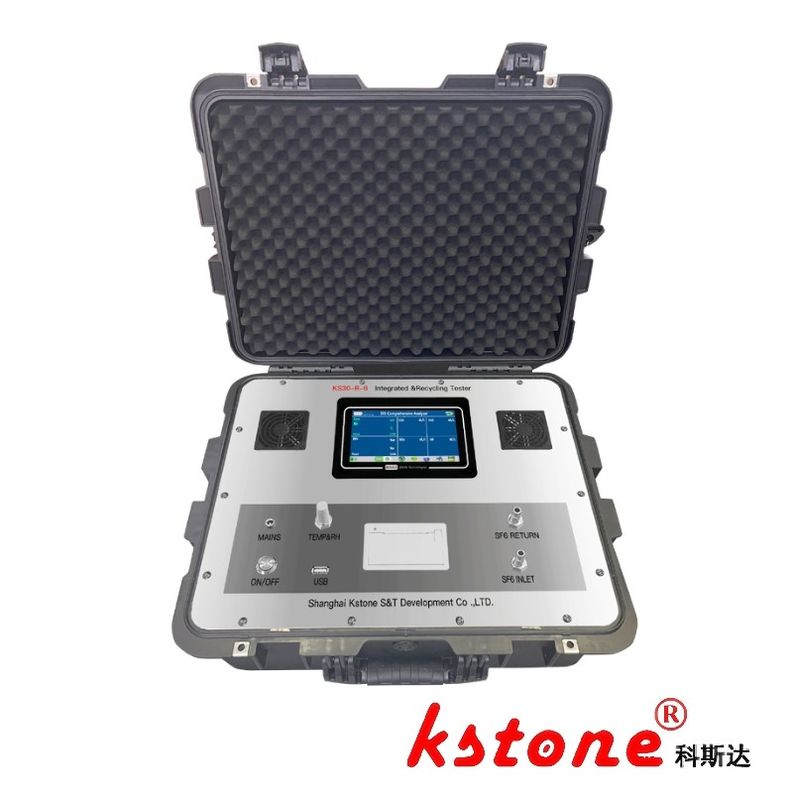

28V USB Dilo Sf6 Gas Analyzer Battery Operated Touchscreen,Emission-Free Comprehensive Tester

Large Image : 28V USB Dilo Sf6 Gas Analyzer Battery Operated Touchscreen,Emission-Free Comprehensive Tester

Product Details:

Place of Origin:	Shanghai
Brand Name:	KSTONE
Certification:	ISO9000
Model Number:	KS30-R-6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$25000-$30000
Packaging Details:	Carton / Wooden Box
Delivery Time:	7-10 work days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Purity:	Measuring Range:0%~100%	Warranty:	1 Year
Application:	SF6 Purity Analyzer, Gas Analyzer	Interface:	USB
Dew Point:	-80℃~+20℃	Accuracy:	+/- 2%
Power:	Electronic	Power Supply:	18650 Lithium Battery, 21.6V/20Ah
Highlight:	28V dilo sf6 gas analyzer , Touchscreen dilo sf6 gas analyzer , 28V dilo sf6 analyzer

Environmentally Friendly Emission-Free Comprehensive Tester KS30-R-6 with Recycling Function

SF6 Gas Decomposition Products Detection Module

Item	Details
Measurement Range	[SO₂] 0–100 µl/l, [H₂S] 0–100 µl/l, [CO] 0–500 µl/l, [HF] 0–10 µl/l
Accuracy	±10%
Resolution	0.1 µl/l
Response Time	≤60s

SF6 Purity Detection Module

Item	Details
Measurement Range	0–100%
Accuracy	≤±0.5%
Repeatability	≤±0.2%
Resolution	0.01%
Response Time	≤60s

SF6 Humidity Detection Module

Item	Details
Dew Point Range	-60°C～+20°C
Measurement Accuracy	±2°C
Response Time (+20°C)	-60°C→20°C: 30s [60s]; 20°C→-60°C: 60s [600s]
Resolution	Dew Point: 0.1°C
Repeatability	±1°C

Whole Machine Parameters

Parameter	Details
AC Power Supply	AC100-240V/50-60HZ
Charger Specification	DC28V/5A
Battery	18650 Lithium Battery, 21.6V/20Ah
Usage Duration	>10 hours
Display Screen	7-inch Color Touchscreen
Inlet Pressure	0.1-0.7 MPa
Recharge Pressure	Maximum: 0.7 MPa
Dimensions	562×440×240mm (L×W×H)
Weight	Approximately 27 kg

System Features

Eco-Friendly Design:Emission-free operation with built-in recycling function.
Modular Customization:Configurable testing modules for comprehensive SF₆ analysis (decomposition products, purity, humidity).
Portable Performance:10+ hour battery life and 7-inch touchscreen for on-site diagnostics.
